Description

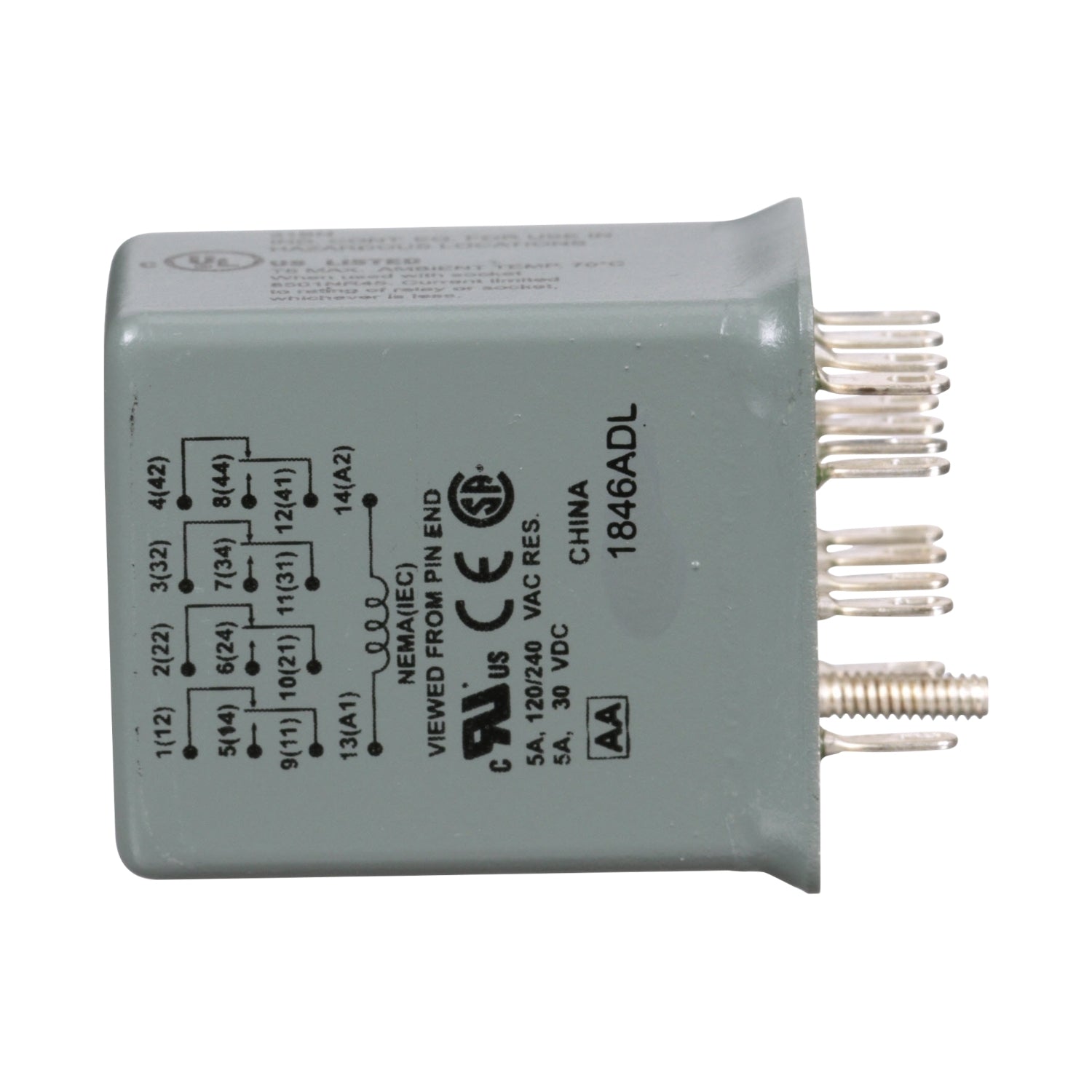

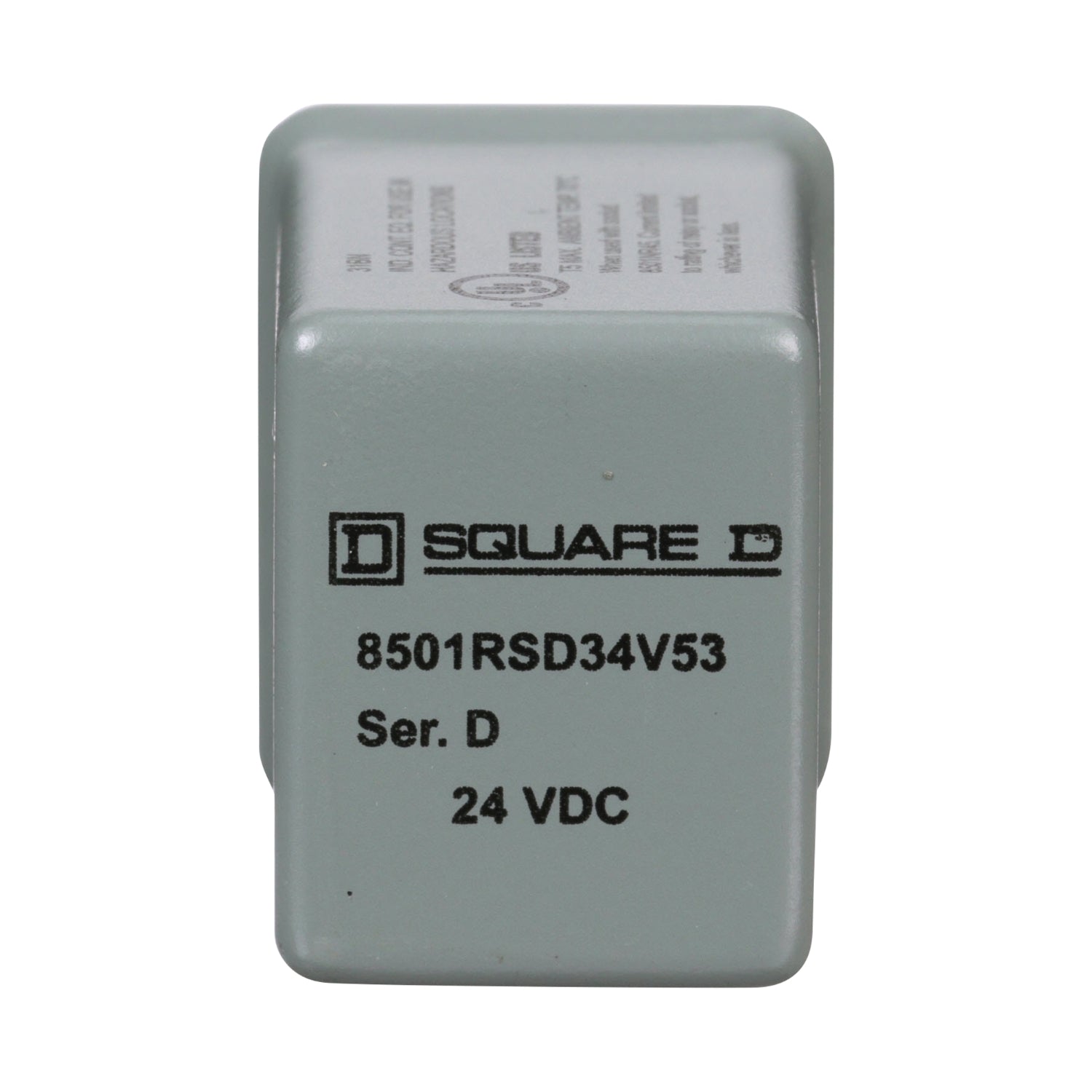

8501RSD34V53 - Schneider Electric - Square D Low Voltage Miniature Relay

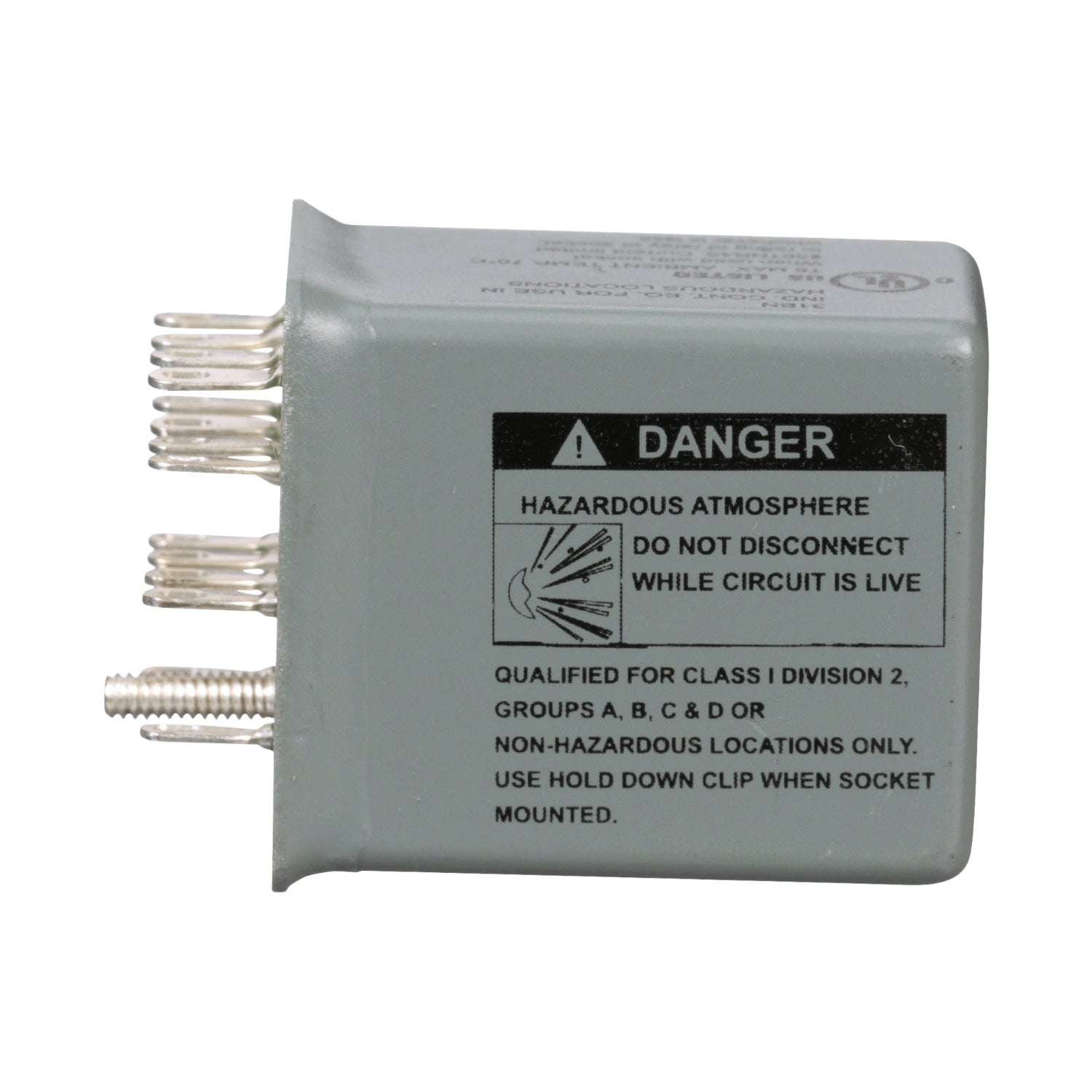

8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| product range | 8501R |
|---|---|
| product type | Miniature Relay |
| Relay Type | Low voltage |
| mounting type | Socket |
|---|---|
| contact composition | 4PDT |
| [Uc] control circuit voltage | 24 V DC |
| pilot light | No indicator |
| manual operator | Without test button |
| horsepower rating | Not rated |
| breaking capacity | 5 A 120 V AC resistive control circuit UL 508 5 A 240 V AC resistive control circuit UL 508 5 A 30 V DC resistive control circuit UL 508 |
| maximum switching voltage | 30 V DC 240 V AC |
| contact material | Hermetically sealed silver tin oxide |
| operating time | 20 ms - pick-up 20 ms - drop-out |
| shape of pins | Spade |
| for use with | 8501NR45 |
| Height | 1.2 in (29.4 mm) |
| Width | 0.9 in (23.1 mm) |
| Depth | 1.5 in (38.9 mm) |
| ambient temperature range - operational | -40…55 °C (-40…131 °F) |
|---|---|
| product certifications | UL Listed UL Recognized CSA CE |
| Category | US10CP221143 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901031895 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.30 in (3.302 cm) |
| Package 1 Width | 1.50 in (3.810 cm) |
| Package 1 Length | 2.10 in (5.334 cm) |
| Package 1 Weight | 1.280 oz (36.287 g) |
