Description

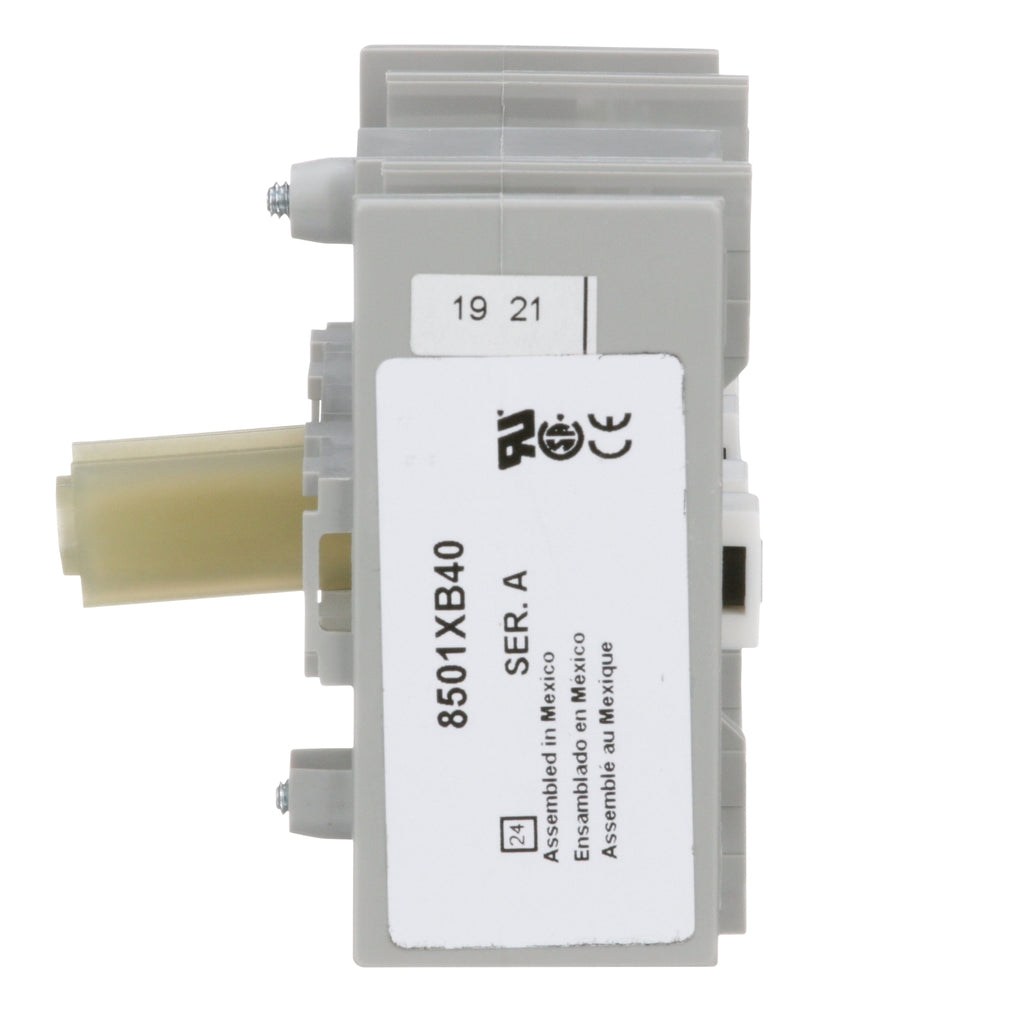

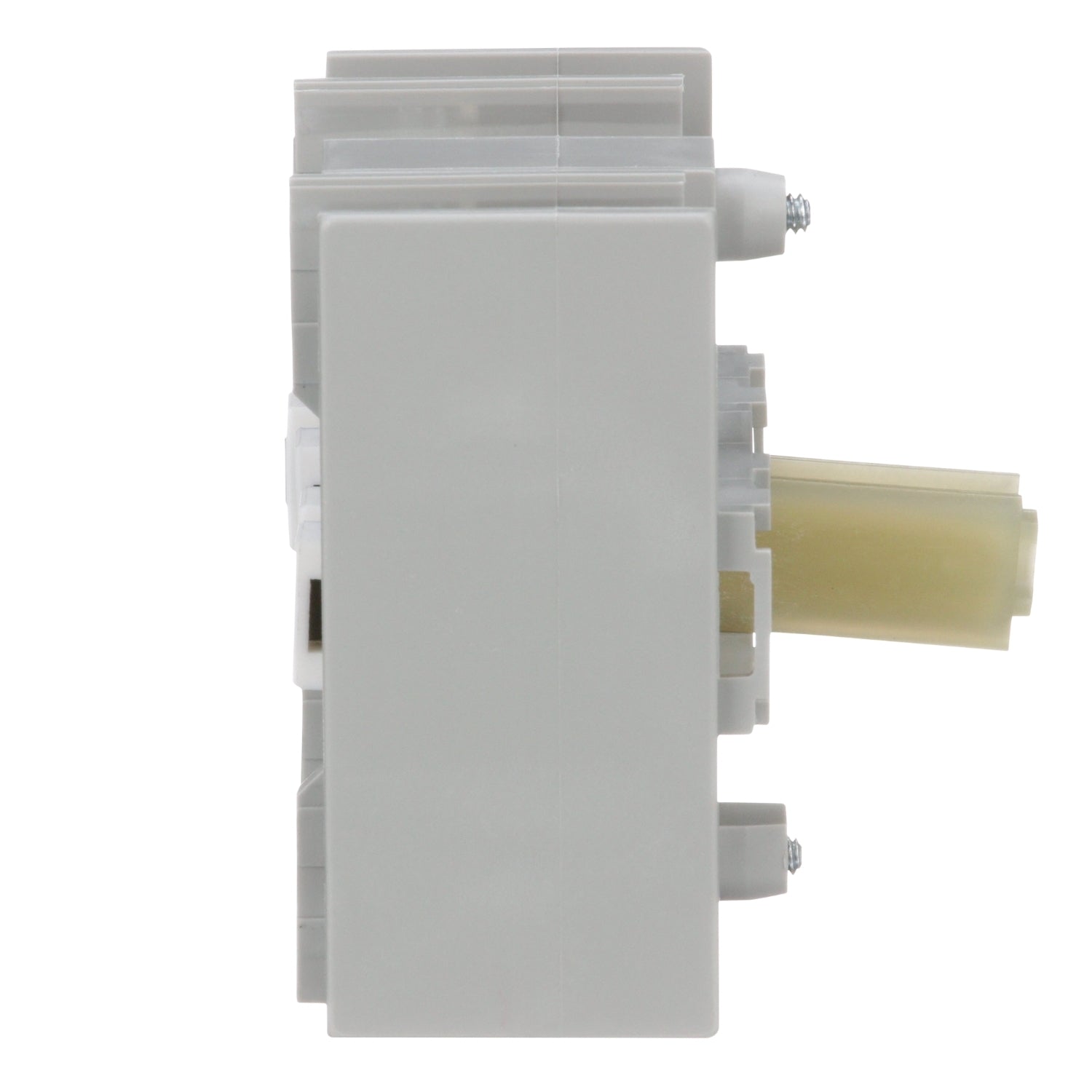

8501XB40 - Schneider Electric - Square D Adder deck Control Relay

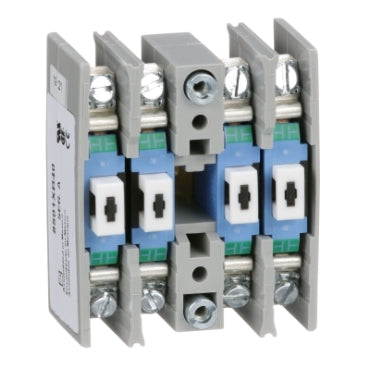

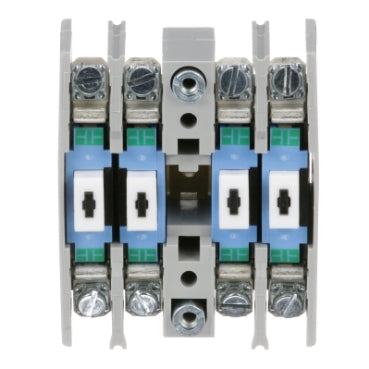

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This adder deck allows an addition four contacts to be added to a standard relay. The adder deck has the same straight through wiring as the basic relay. This makes wiring easier. The four plug in contact cartridges in this adder deck make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. This adder deck for an 8501X NEMA machine tool relay is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Range of Product | 8501X |
|---|---|
| Relay Type | Control relay |
| Product or Component Type | Adder deck |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
|---|---|
| [Icm] rated short-circuit making capacity | 60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
| Contacts Configuration | 4 NO 4 standard contact cartridges |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 18...AWG 12 copper |
| Terminal Tightening Torque | Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals |
| Product Certifications | CE CSA LR60905 class 3211 02 UL recognized E78403 CCN NKCR2 |
|---|
| Category | US10CP221159 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901537328 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.62 in (19.355 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 19.35 in (49.161 cm) |
| Package 1 Weight | 8.800 oz (249.476 g) |
PRODUCT DATASHEET
