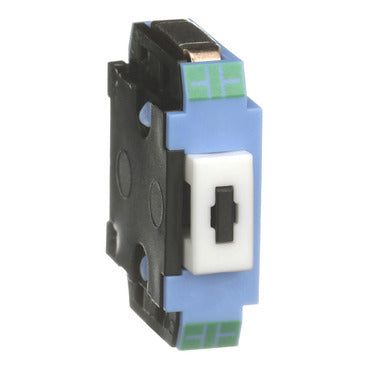

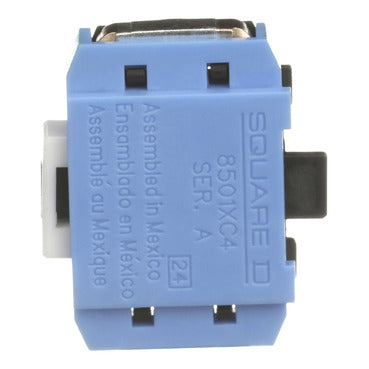

8501XC4 - Square D - NEMA Type X 10A 600VAC Master Contact Cartridge Control Relay
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This replacement contact cartridge can be installed in any 8501XMO master control relay. This contact cartridge can be installed as a NO or as a NC contact without disturbing the wiring. The plug in design makes contact conversion or replacement very easy. The contact cartridge is UL listed and CSA certified. The contact cartridge is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Range of Product | 8501X |
|---|---|
| Relay Type | Control relay |
| Product or Component Type | Master contact cartridge |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
|---|---|
| [Icm] rated short-circuit making capacity | 60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
| Contacts Configuration | 1 NO 1 master contact cartridge |
| Product Certifications | UL recognized E78403 CCN NKCR2 CE CSA LR60905 class 3211 02 |
|---|
| Category | US10CP221159 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901537137 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
