Square DSKU: SQD8501XO20V02
Price:
$134.98
Stock:
Sold out

Description

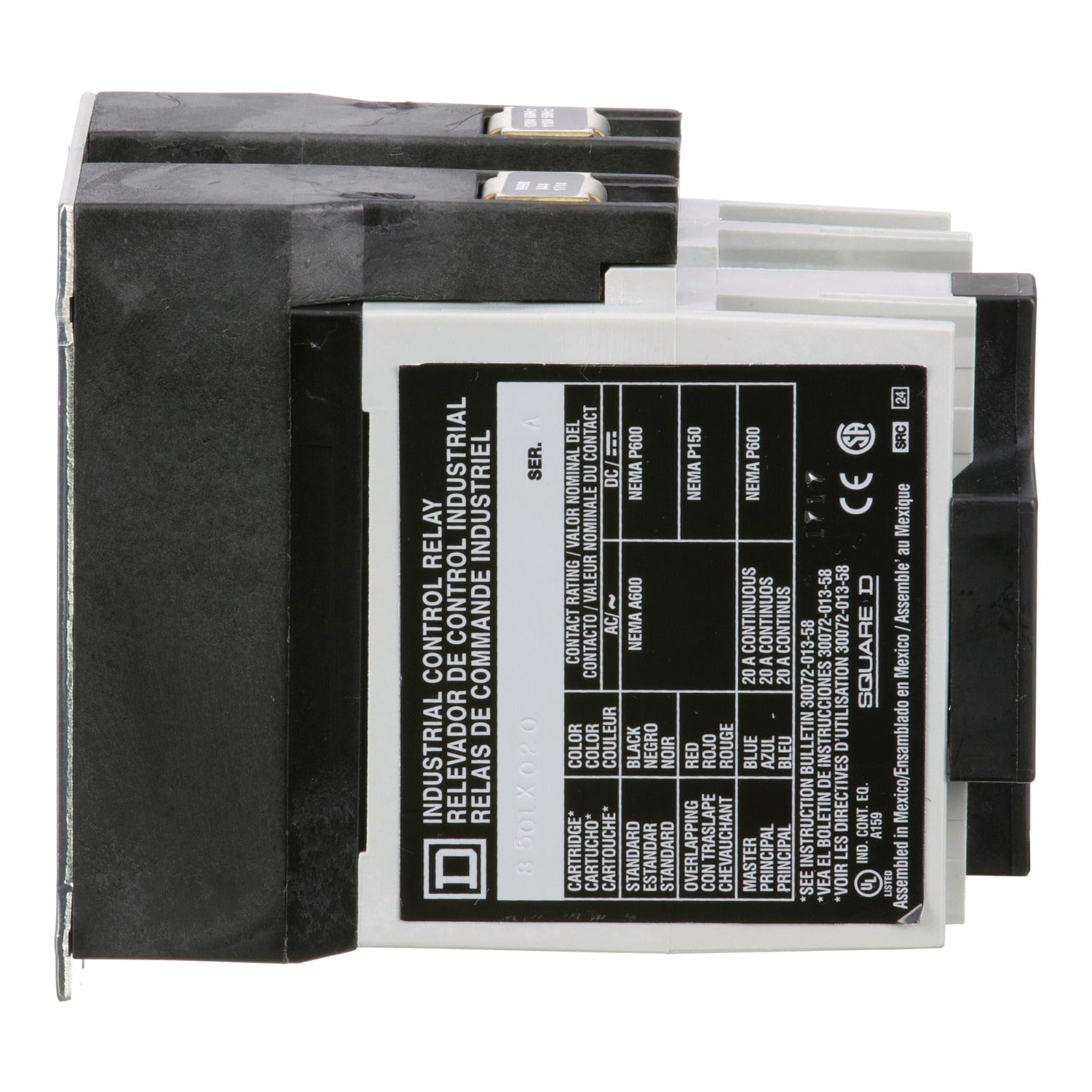

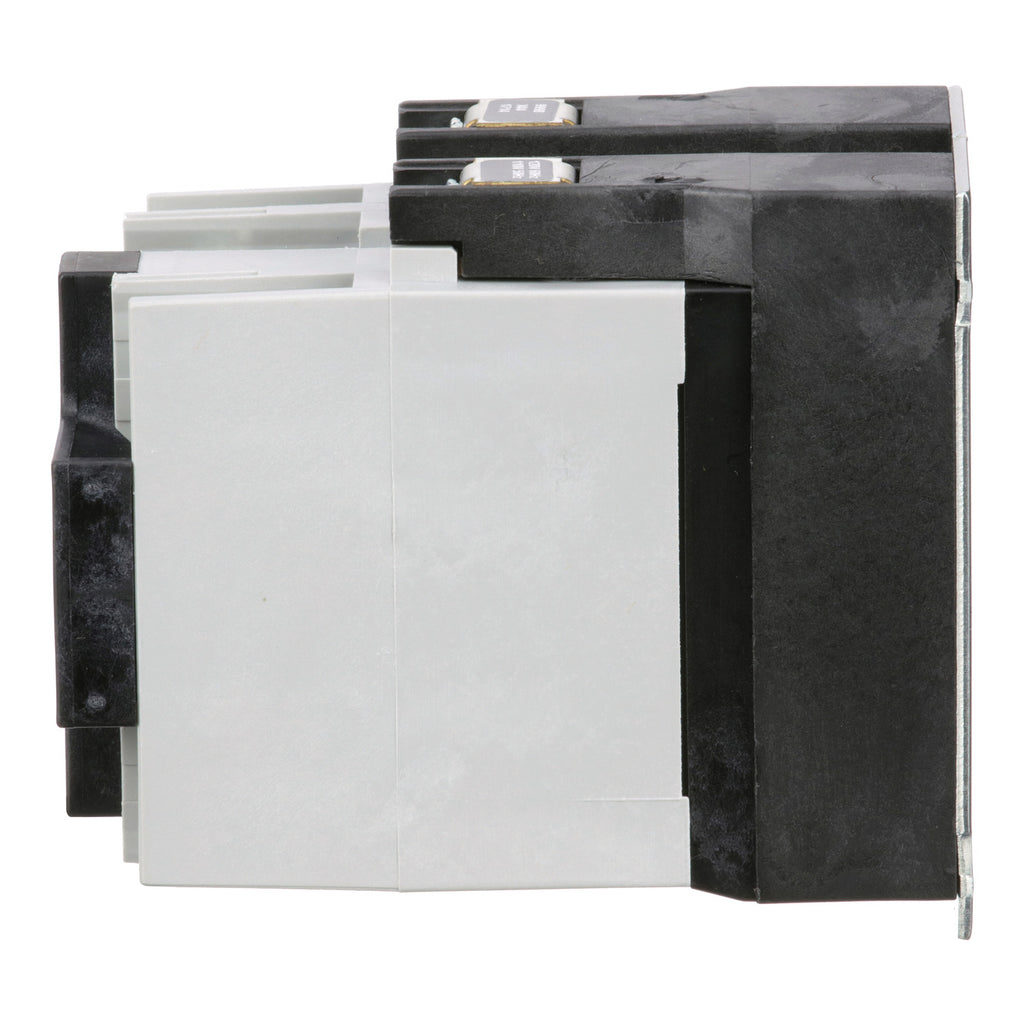

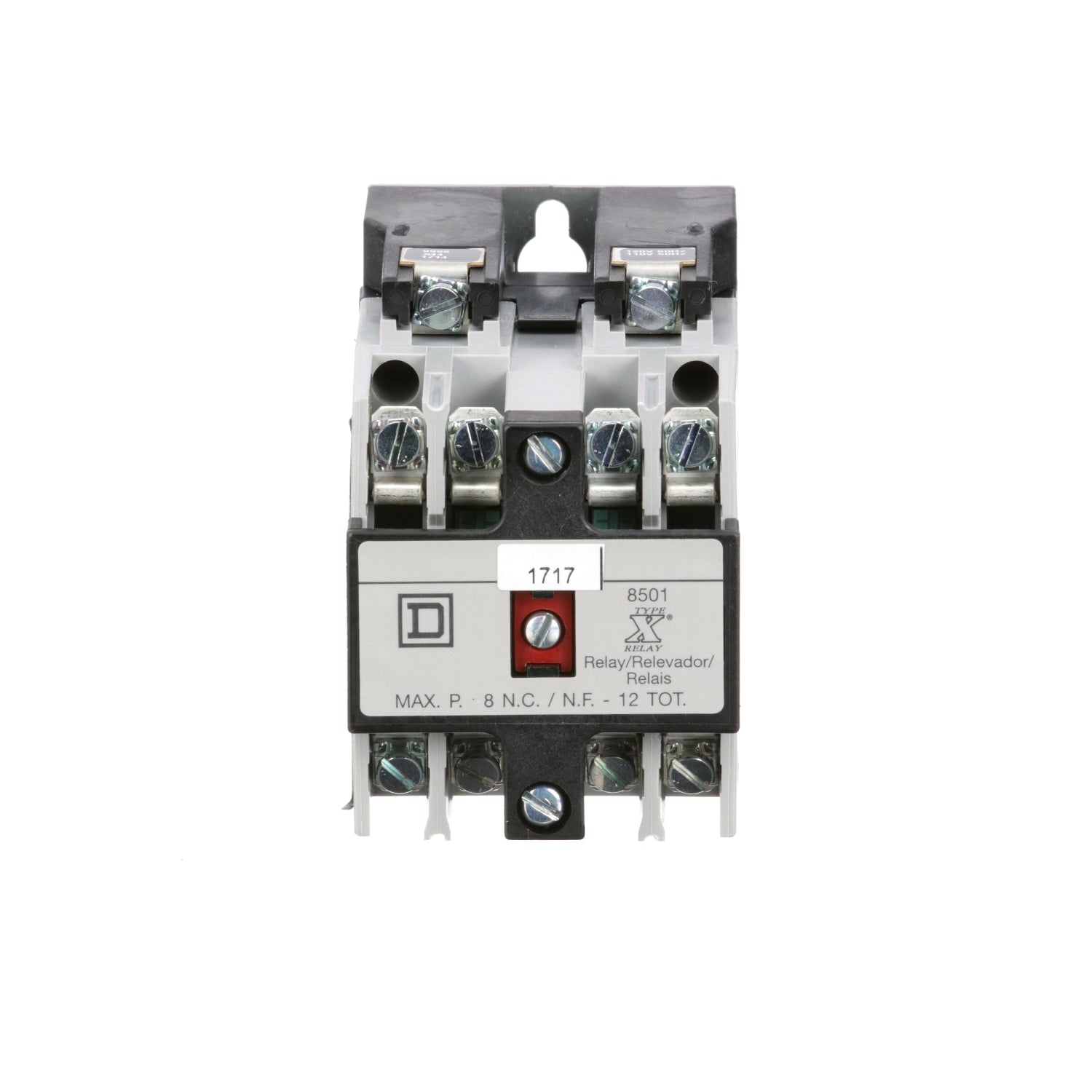

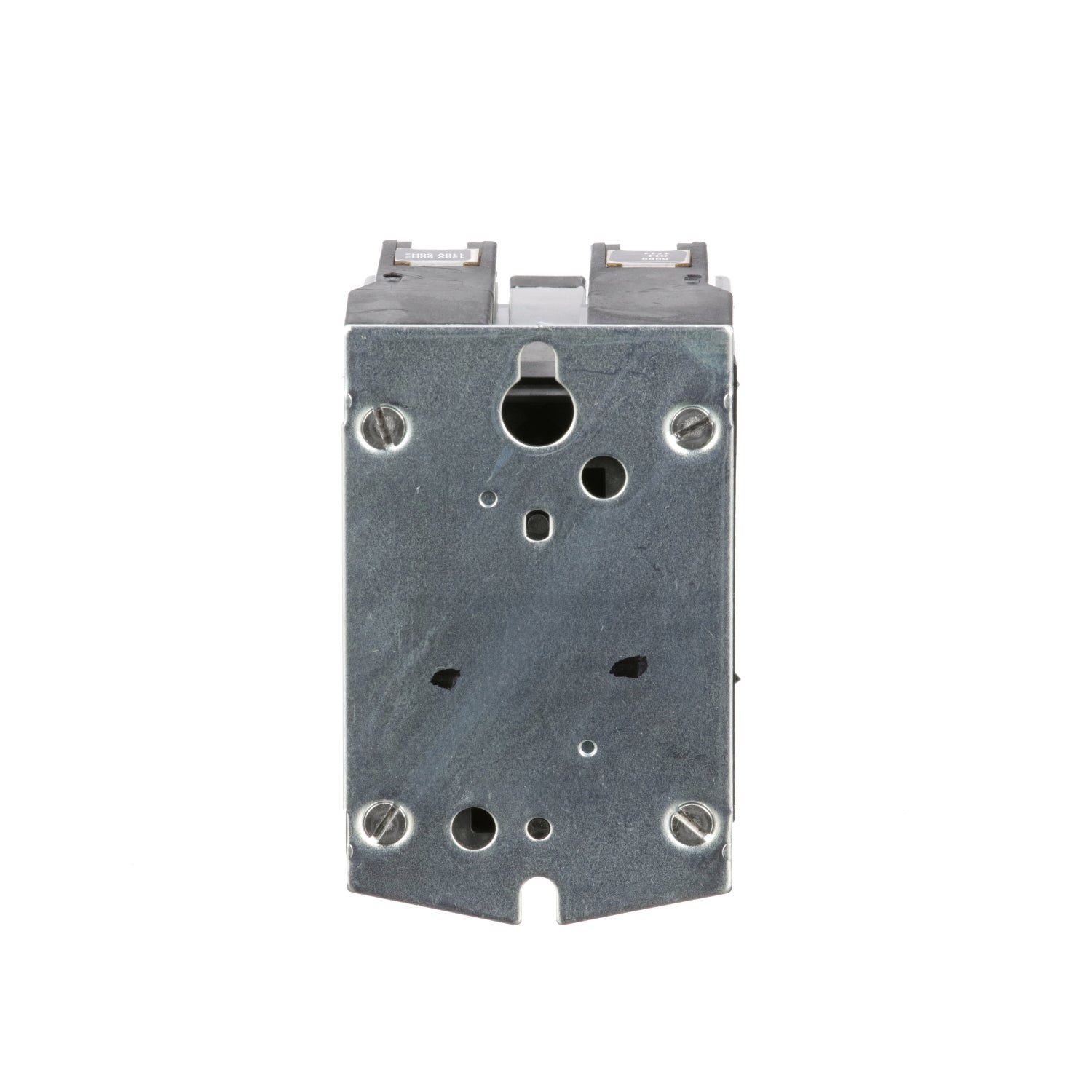

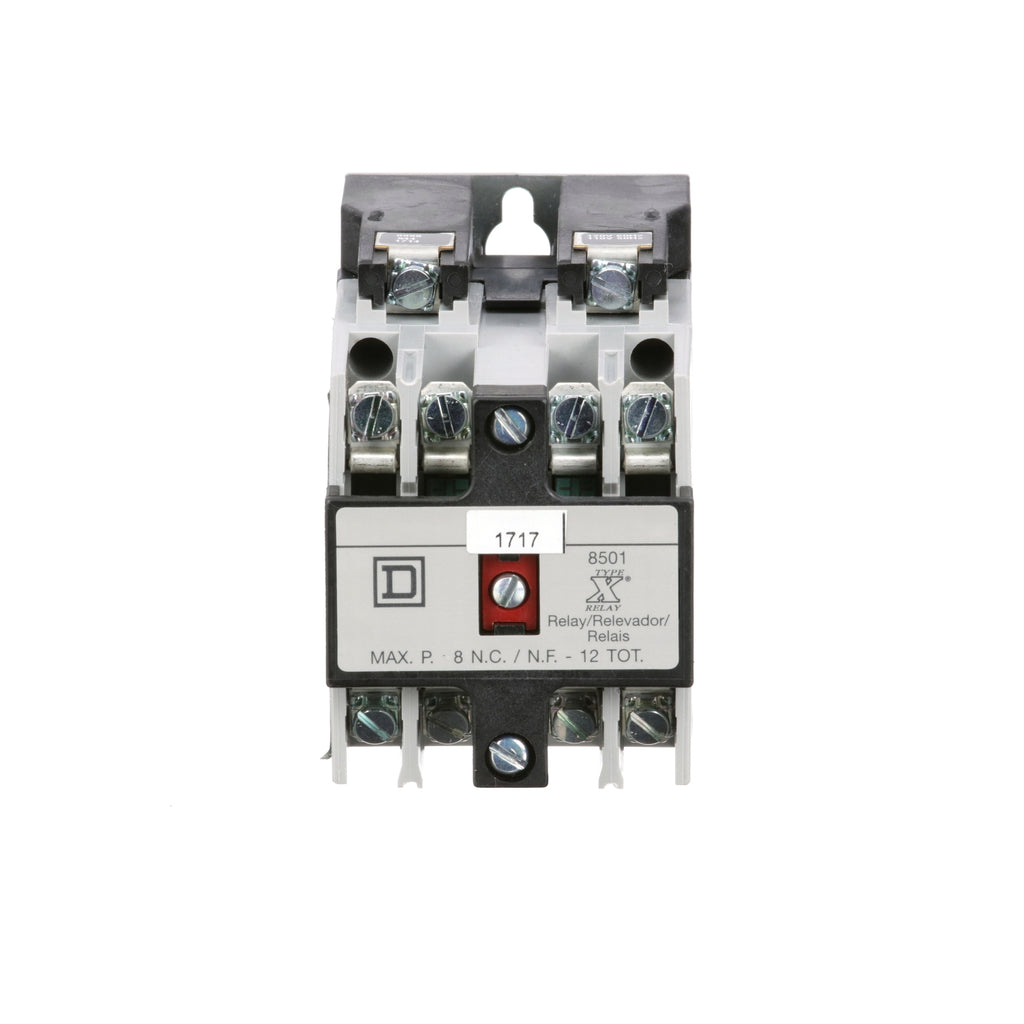

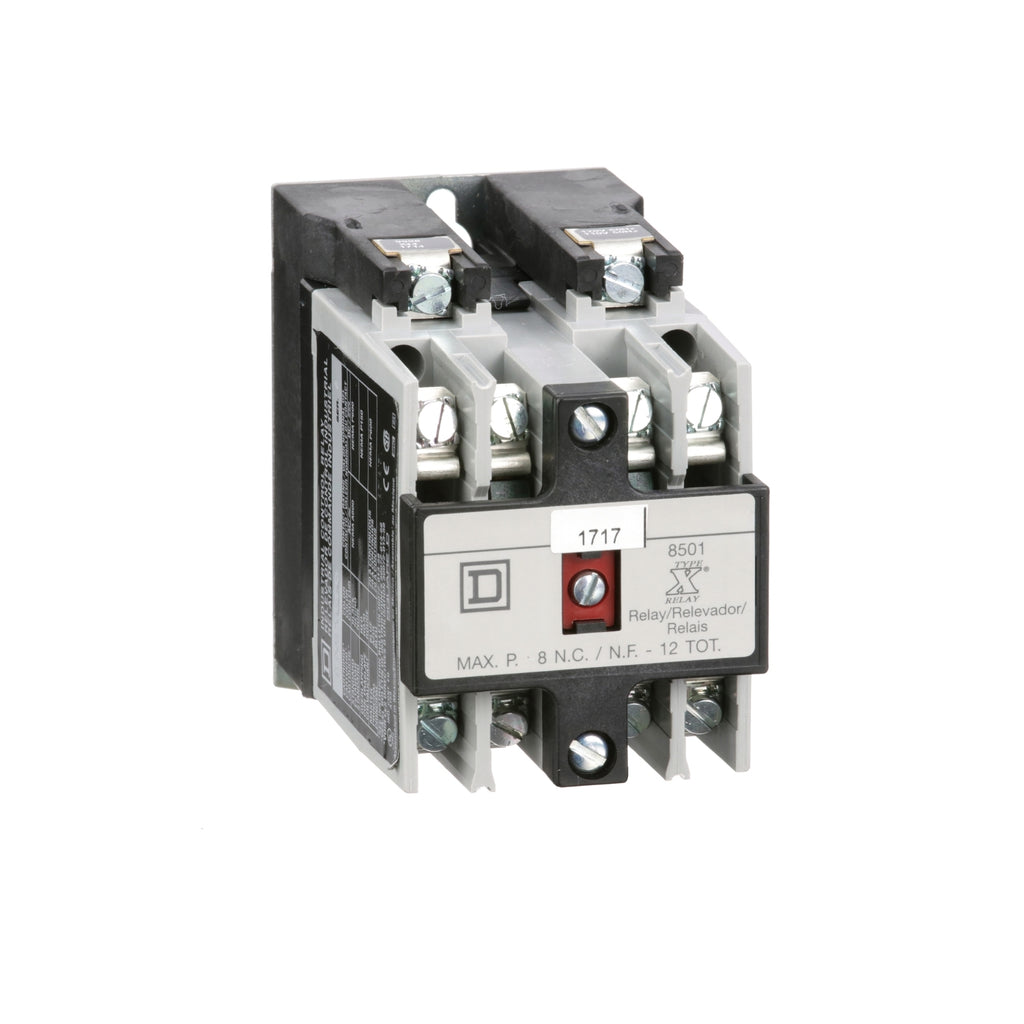

8501XO20V02 - Schneider Electric - Square D Control Relay

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has two 8501XC1 contact cartridges. This relay has two normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.

GENERAL SPECIFICATIONS

Main
Range 8501X
Relay Type Control
Product Relay
Current Rating 10 A AC
5 A DC
Complementary
Coil Voltage 110 V AC 50 Hz
120 V AC 60 Hz
Control circuit voltage limits Operational 0.85...1.1 Uc AC 50/60 Hz
Rated breaking capacity 6 A 120 V AC inductive control circuit UL 508
3 A 240 V AC inductive control circuit UL 508
1.5 A 480 V AC inductive control circuit UL 508
1.2 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC resistive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity 60 A 120 V AC inductive control circuit UL 508
30 A 240 V AC inductive control circuit UL 508
15 A 480 V AC inductive control circuit UL 508
12 A 600 V AC inductive control circuit UL 508
10 A <= 600 V AC resistive control circuit UL 508
1.1 A 125 V DC inductive control circuit UL 508
0.55 A 250 V DC inductive control circuit UL 508
0.2 A 301...600 V DC inductive control circuit UL 508
4 A 125 V DC inductive control circuit UL 508
0.8 A 250 V DC resistive control circuit UL 508
Inrush power in VA 148 VA 60 Hz
143 VA 50 Hz
Hold-in power consumption in VA 23 VA 60 Hz
25 VA 50 Hz
Operating time 15 ms - pick-up
16 ms - drop-out
Contact Configuration 2 NO 2 standard contact cartridges
Electrical Connection Screw clamp terminals
AWG gauge AWG 18...AWG 12 copper
Tightening torque Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type Panel
Height 3.5 in (88.9 mm)
Width 2.23 in (56.64 mm)
Depth 3.95 in (100.33 mm)
Environment
Operating Temperature -40…71 °C (-40…160 °F)
Certifications CSA LR60905 class 3211 03
UL listed file E78403 CCN NKCR
Ordering and shipping details
Category US10CP221158
Discount Schedule 0CP2
GTIN 785901536963
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.30 in (8.382 cm)
Package 1 Width 4.60 in (11.684 cm)
Package 1 Length 6.30 in (16.002 cm)
Package 1 Weight 33.599 oz (952.543 g)
Unit Type of Package 2 PAL
Number of Units in Package 2 360
Package 2 Height 40.00 in (101.600 cm)
Package 2 Width 40.00 in (101.600 cm)
Package 2 Length 48.00 in (121.920 cm)
Package 2 Weight 763.999 lb(US) (346.544 kg)

PRODUCT DATASHEET

8501XO20V02_Product Datasheet
