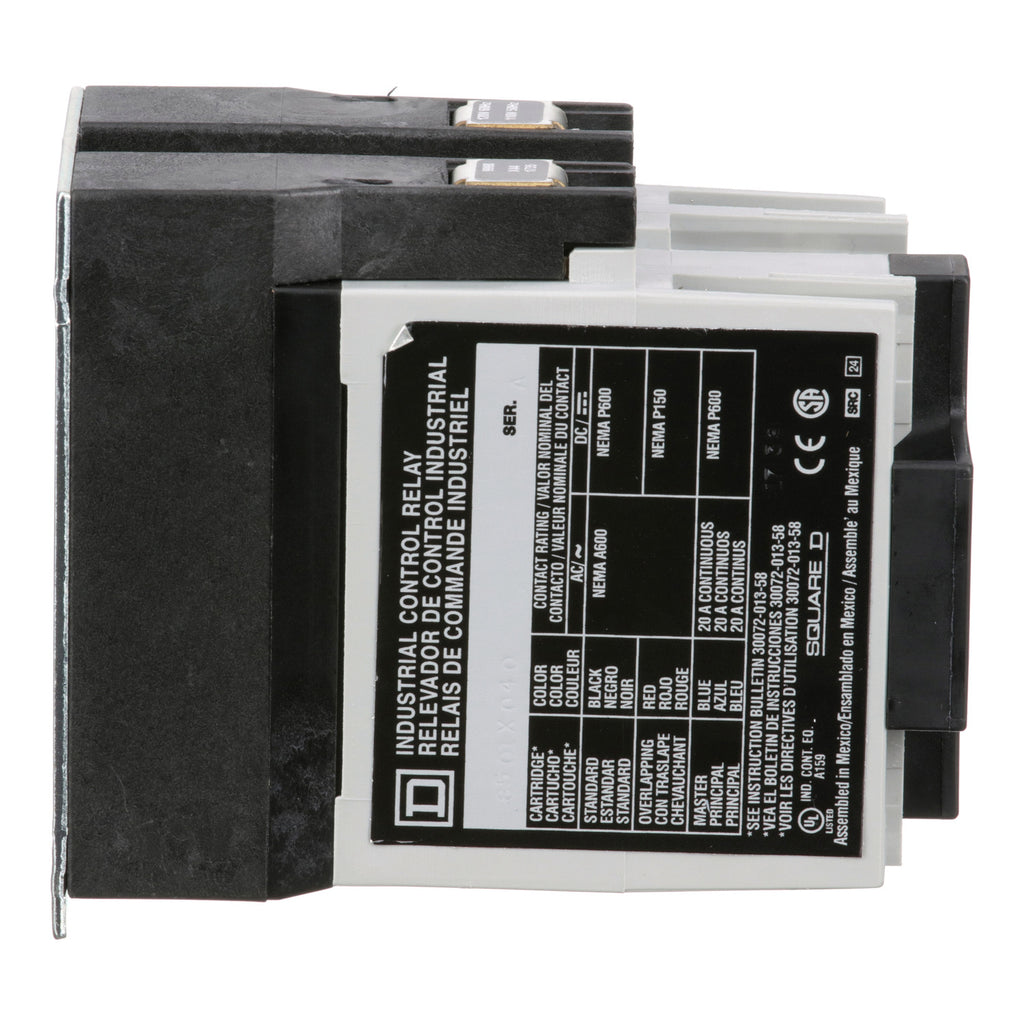

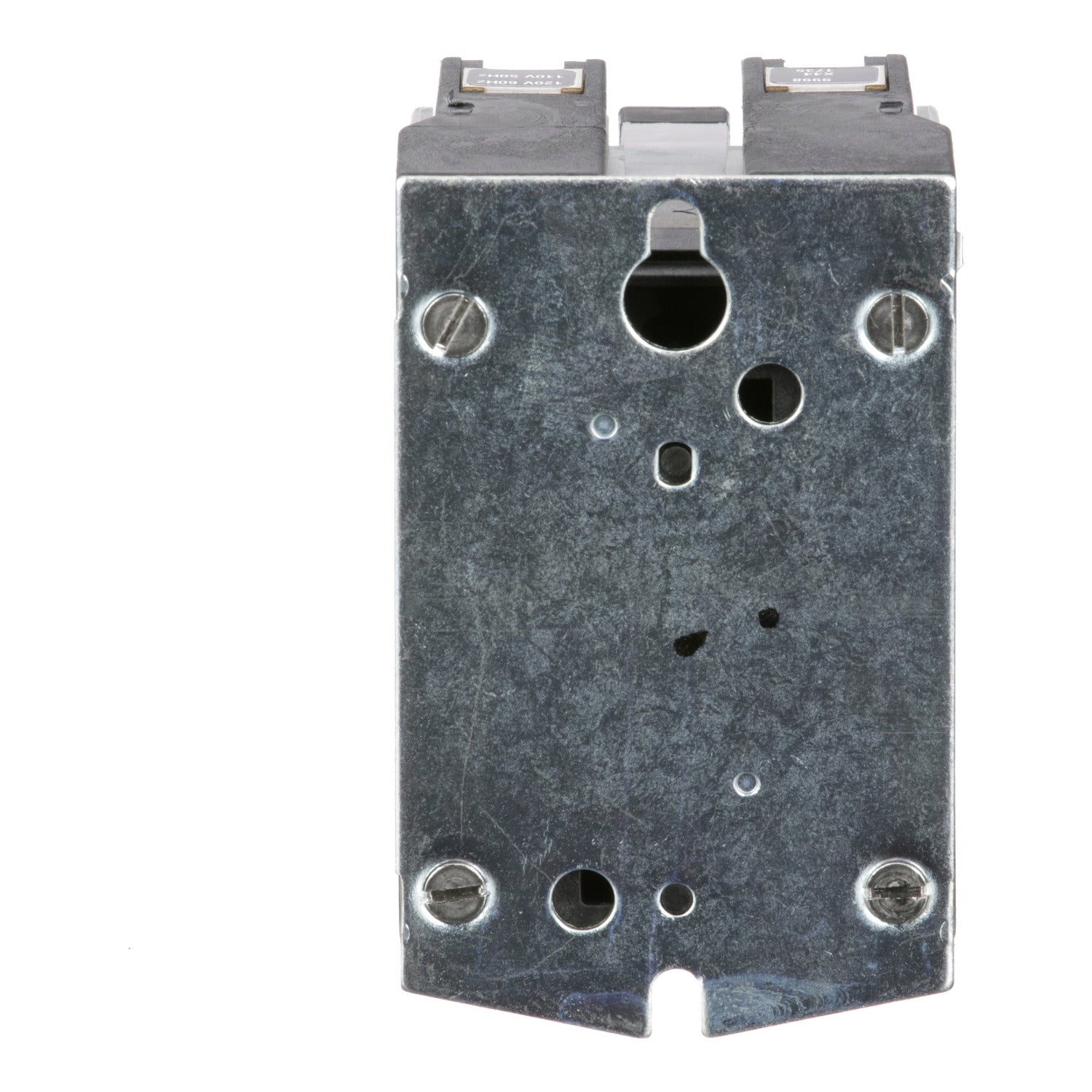

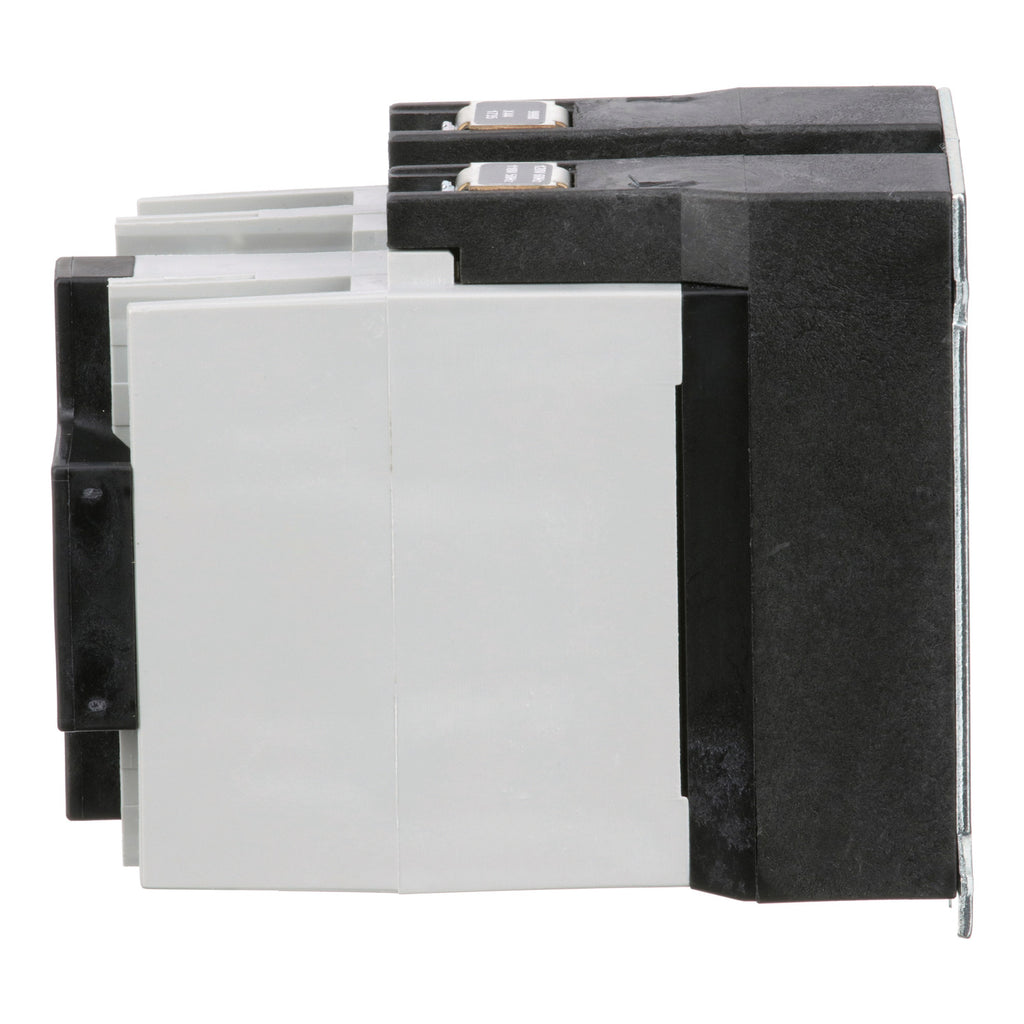

8501XO40V02 - Schneider Electric - Square D Motor Control Part And Accessory
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Range | 8501X |
|---|---|
| Relay Type | Control |
| Product | Relay |
| Current Rating | 10 A AC 5 A DC |
| Coil Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
|---|---|
| Control circuit voltage limits | Operational 0.85...1.1 Uc AC 50/60 Hz |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
| [Icm] rated short-circuit making capacity | 60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 |
| Inrush power in VA | 148 VA 60 Hz 143 VA 50 Hz |
| Hold-in power consumption in VA | 23 VA 60 Hz 25 VA 50 Hz |
| Operating time | 15 ms - pick-up 16 ms - drop-out |
| Contact Configuration | 4 NO 4 standard contact cartridges |
| Electrical Connection | Screw clamp terminals |
| AWG gauge | AWG 18...AWG 12 copper |
| Tightening torque | Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals |
| Mounting Type | Panel |
| Height | 3.5 in (88.9 mm) |
| Width | 2.23 in (56.64 mm) |
| Depth | 3.95 in (100.33 mm) |
| Operating Temperature | -40…71 °C (-40…160 °F) |
|---|---|
| Certifications | UL listed file E78403 CCN NKCR CSA LR60905 class 3211 03 |
| Category | US10CP221158 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 785901537052 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
