8501XTE1 - Schneider Electric - Square D Timer Relay

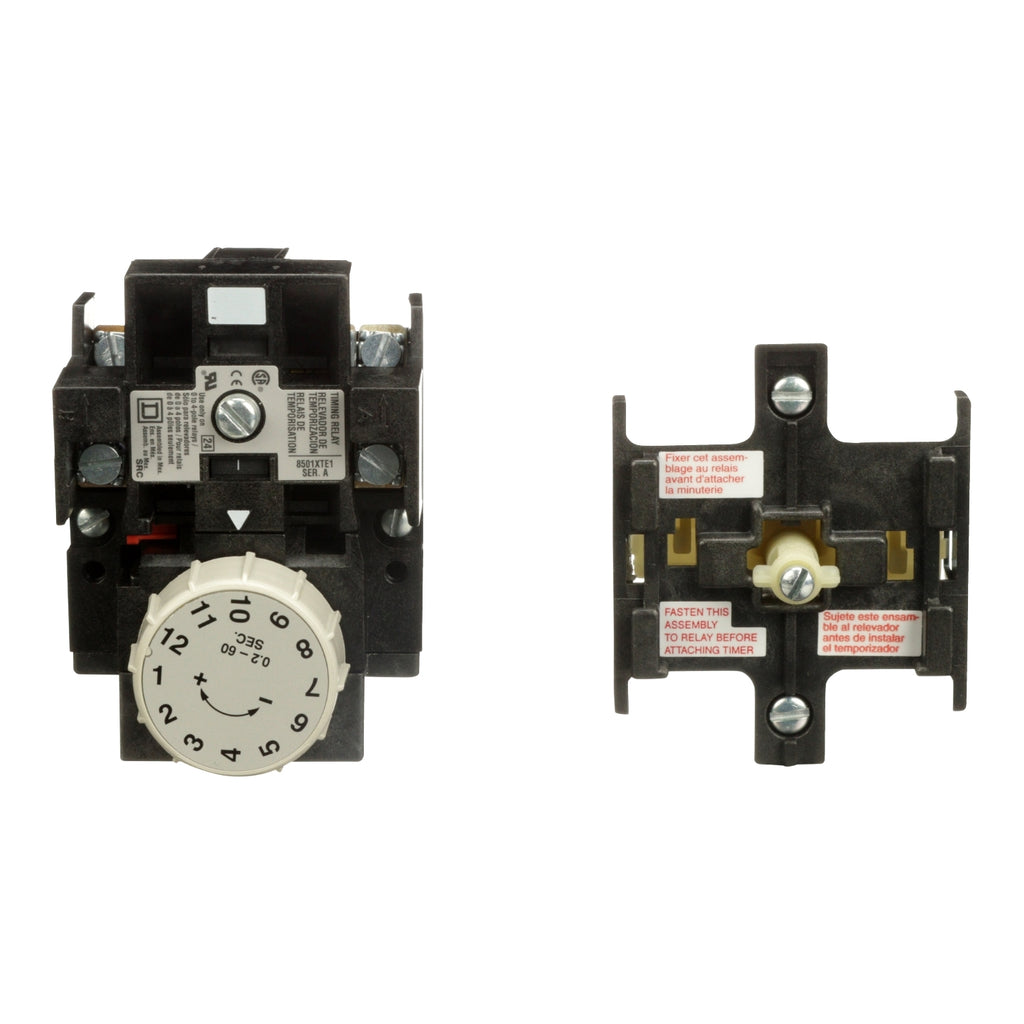

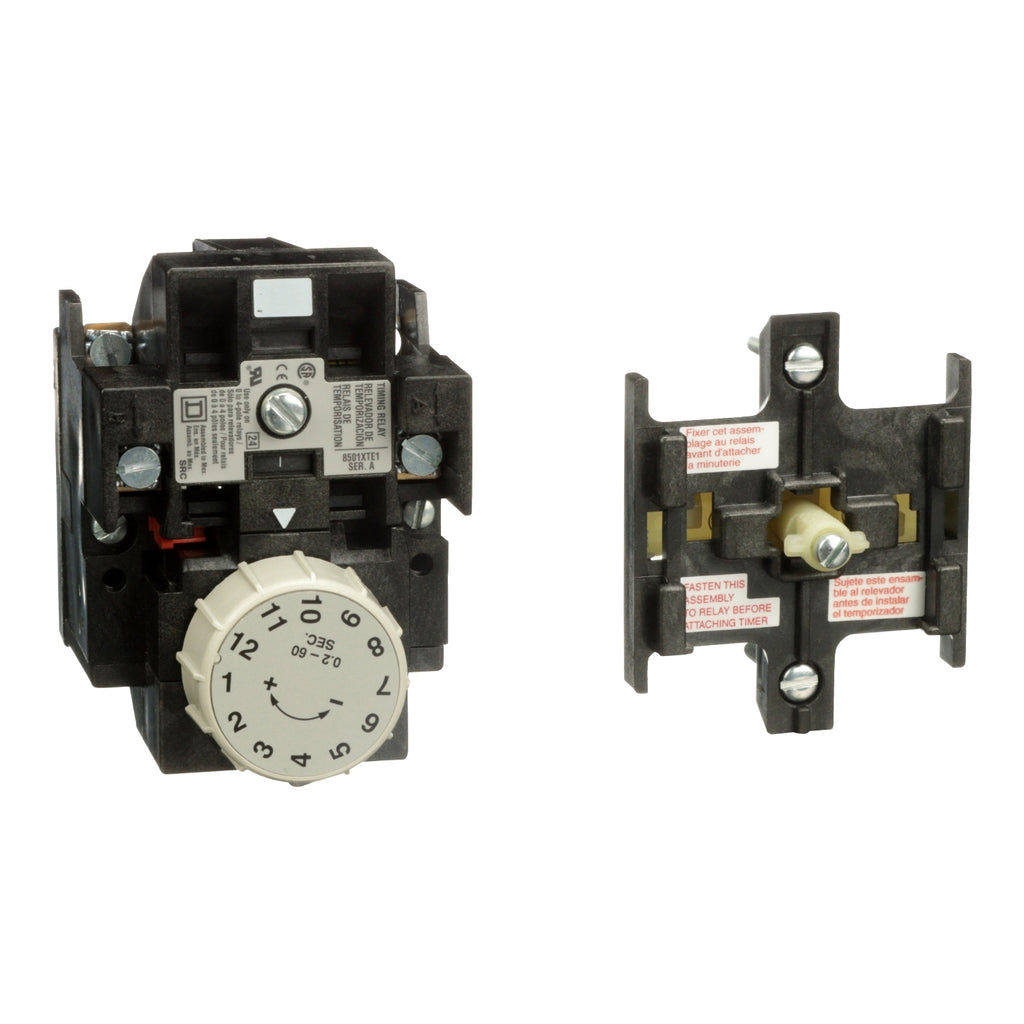

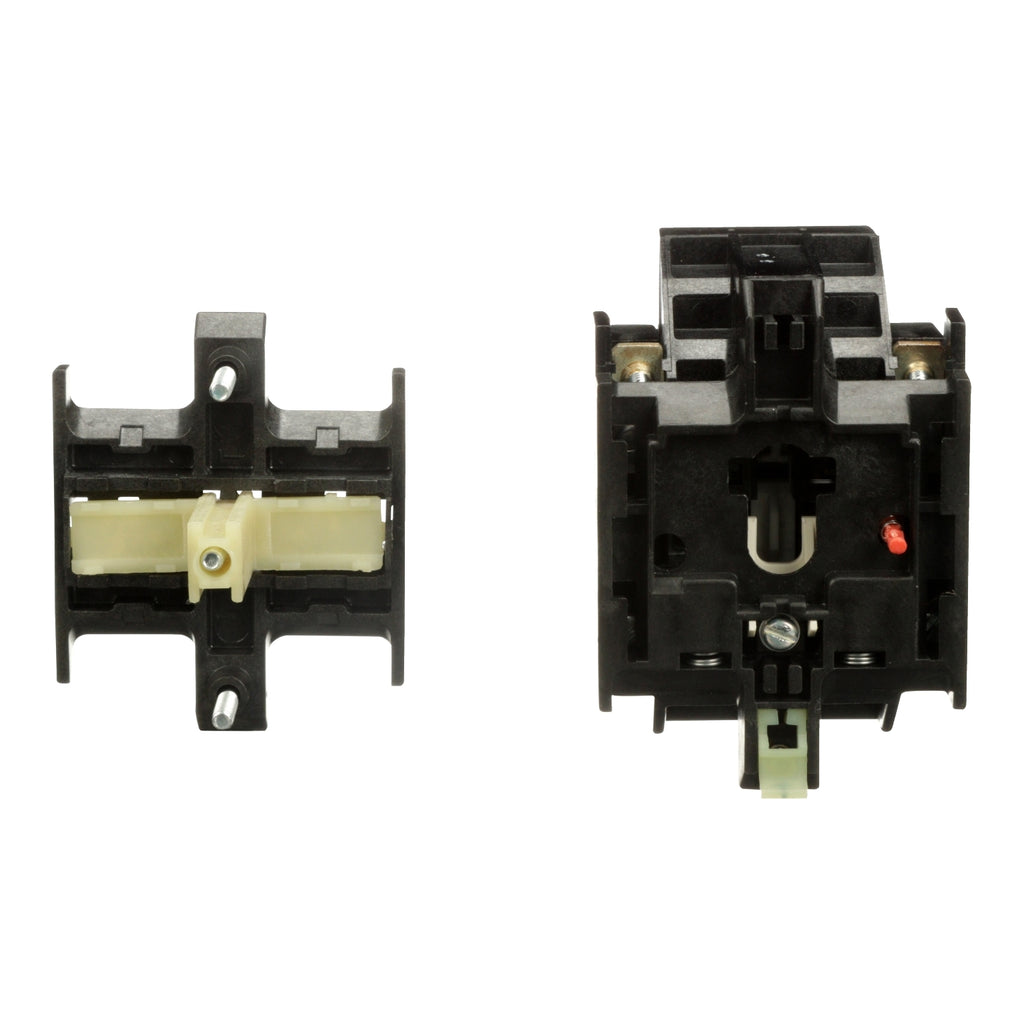

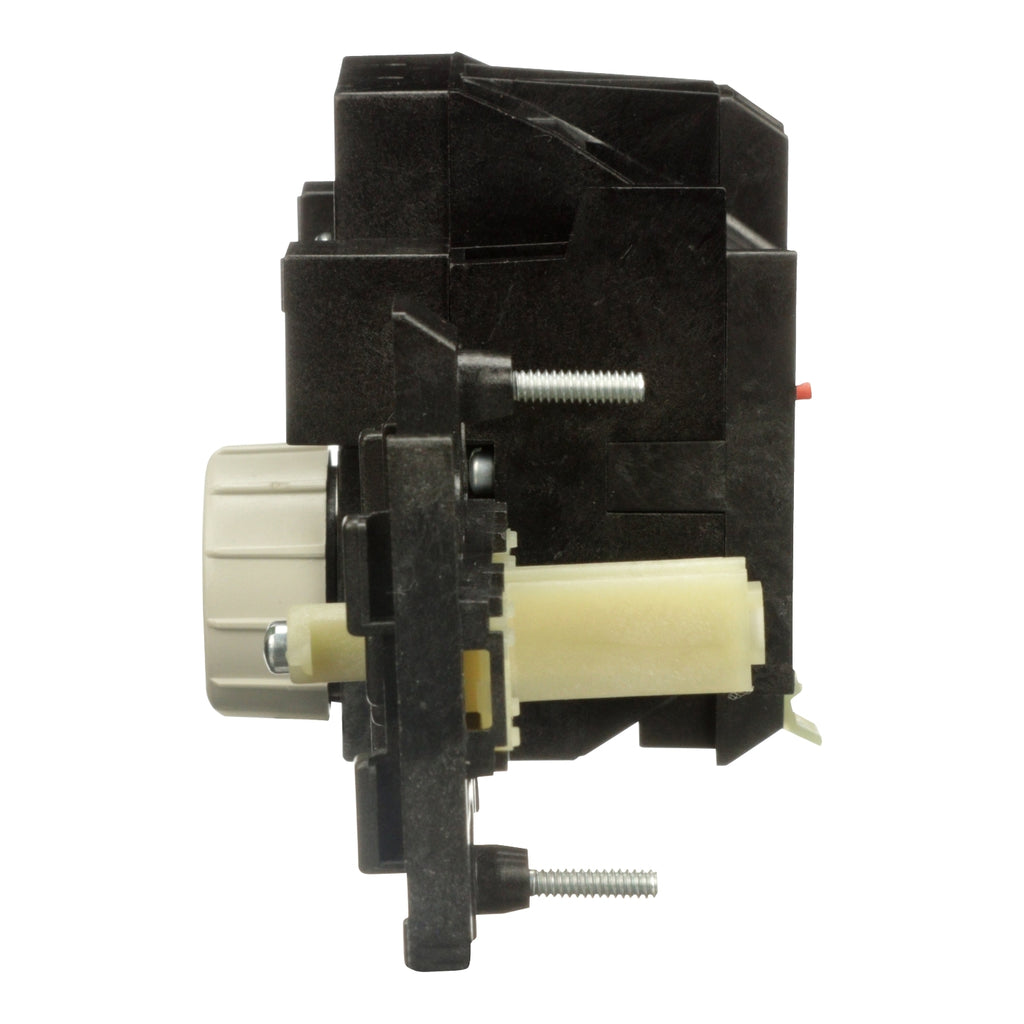

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This pneumatic timer attachment can be added to a standard 4 pole relay. This timer attachment comes as standard in the on delay mode but can be converted to off delay. The timer attachment comes with one normally closed and one normally open timed contact. The contacts are the standard 8501XC1 relay cartridge. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer attachment is UL listed and CSA certified. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer has screw clamp terminals. This timer attachment is UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
8501X |
| Relay Type |
Control relay |
| Product or Component Type |
Timing relay |
Complementary
| Contacts Configuration |
1 NO/1 NC |
| Time delay type |
On-delay |
| Time range |
0.2...60 s |
| Electrical Connection |
Screw clamp terminals |
| Wire Gauge |
AWG 18...AWG 12 copper |
| Terminal Tightening Torque |
Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals |
Environment
| Product Certifications |
CSA LR60905 class 3211 02
CE
UL recognized E78403 CCN NKCR2 |
Ordering and shipping details
| Category |
US10CP221159 |
| Discount Schedule |
0CP2 |
| GTIN |
785901537342 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.31 in (8.4 cm) |
| Package 1 Width |
4.41 in (11.2 cm) |
| Package 1 Length |
6.42 in (16.3 cm) |
| Package 1 Weight |
12.2 oz (344.7 g) |
PRODUCT DATASHEET
8501XTE1_Product Datasheet
