Description
| Main | |
|---|---|
| Product Type | Contactor |
| Product Range | 8502S |
| Contactor Type | Non-reversing |
| Complementary | |
| NEMA Size | 00 |
| Rated Current | 9 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Horsepower Rating | 1.5 HP 200 V AC1.5 HP 230 V AC2 HP 460 V AC2 HP 575 V AC |
| SCCR | Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V ACFuse J 60 A maximum, SCCR: 100 kA at 600 V ACFuse T 60 A maximum, SCCR: 100 kA at 600 V ACFuse RK1 60 A maximum, SCCR: 100 kA at 600 V ACFuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| Coil Voltage | 120 V AC 60 Hz110 V AC 50 Hz |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Pilot Light | No indicator |
| Auxiliary Contacts | Without |
| Other Equipment | Fuse not supplied |
| Terminal Type | Screw clamp terminals |
| Height | 4.34 in (110.24 mm) |
| Width | 3.22 in (81.79 mm) |
| Depth | 4.22 in (107.19 mm) |
| Environmental | |
| Enclosure Type | Not rated (open device) |
| Certifications | UL listed file E78351 CCN NLDXCSA |
| Ordering and shipping details | |
| Category | US10CP121191 |
| Discount Schedule | 0CP1 |
| GTIN | 785901770725 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.50 in (11.43 cm) |
| Package 1 Width | 5.800 in (14.732 cm) |
| Package 1 Length | 8.00 in (20.32 cm) |
| Package weight(Lbs) | 3.199 lb(US) (1.451 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

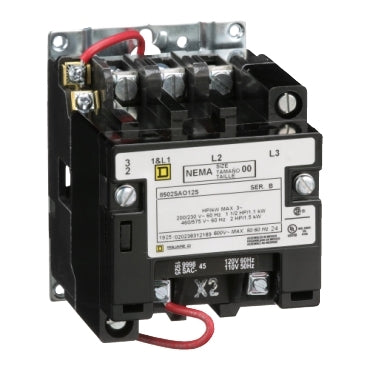

8502SAO12V02S
8502SAO12V02S
