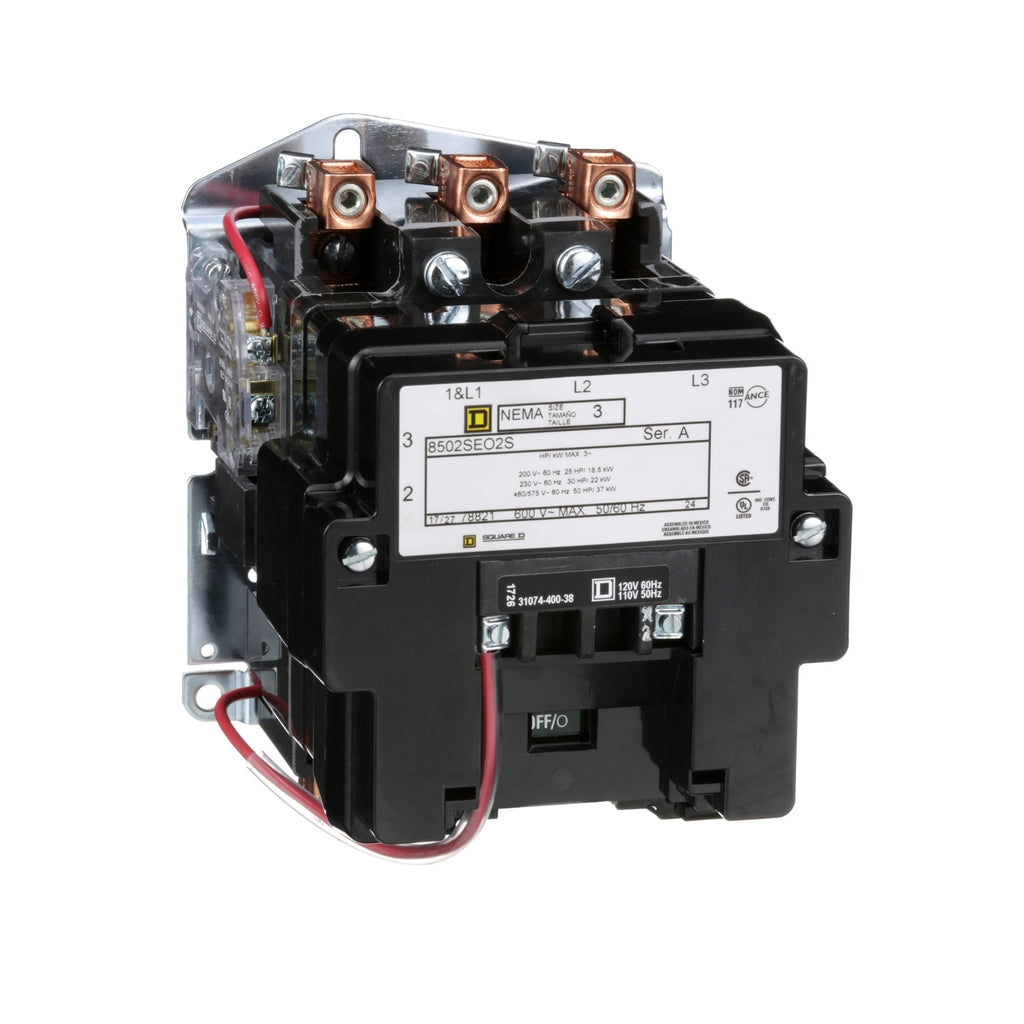

8502SEO2V02S - Schneider Electric - 135 Amp 3 Pole 600 Volt Square D Magnetic Contactors
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 7.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product Type | Contactor |
|---|---|
| Product Range | 8502S |
| Contactor Type | Non-reversing |
| NEMA Size | 3 |
|---|---|
| Rated Current | 90 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Horsepower Rating | 25 HP 200 V AC 30 HP 230 V AC 50 HP 460 V AC 50 HP 575 V AC |
| SCCR | Circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC |
| Coil Voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Pilot Light | No indicator |
| Auxiliary Contacts | Without |
| Other Equipment | Fuse not supplied |
| Terminal Type | Screw clamp terminals |
| Height | 7.09 in (180.09 mm) |
| Width | 5.47 in (138.94 mm) |
| Depth | 6.50 in (165.10 mm) |
| Enclosure Type | Not rated (open device) |
|---|---|
| Certifications | UL listed file E78351 CCN NLDX CSA |
| Category | US10CP121193 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901788218 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.40 in (18.796 cm) |
| Package 1 Width | 8.80 in (22.352 cm) |
| Package 1 Length | 14.40 in (36.576 cm) |
| Package 1 Weight | 13.151 lb(US) (5.965 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 790.999 lb(US) (358.791 kg) |
