8502SFO2V02S - Square D - NEMA Type X 10A 600VAC Master Contact Cartridge Control Relay

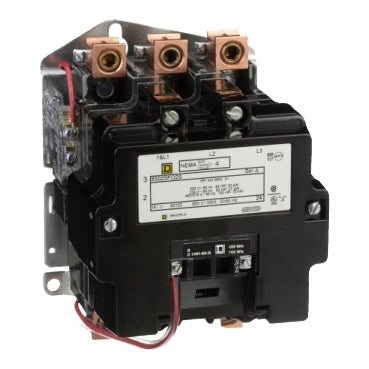

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
| Product Type | Contactor |
|---|---|
| Product Range | 8502S |
| Contactor Type | Non-reversing |
| NEMA Size | 4 |
|---|---|
| Rated Current | 135 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Horsepower Rating | 40 HP 200 V AC 50 HP 230 V AC 100 HP 460 V AC 100 HP 575 V AC |
| SCCR | Circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC |
| Coil Voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Pilot Light | No indicator |
| Auxiliary Contacts | Without |
| Other Equipment | Fuse not supplied |
| Terminal Type | Screw clamp terminals |
| Height | 8.19 in (208.03 mm) |
| Width | 6.00 in (152.40 mm) |
| Depth | 6.50 in (165.10 mm) |
| Enclosure Type | Not rated (open device) |
|---|
| Category | US10CP121193 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901831525 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.500 in (19.050 cm) |
| Package 1 Width | 8.800 in (22.352 cm) |
| Package 1 Length | 14.500 in (36.830 cm) |
| Package weight(Lbs) | 17.891 lb(US) (8.115 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 868.0003 lb(US) (393.718 kg) |
