Description
| Main | |
|---|---|
| Product Type | Motor starter |
| Product Range | S |
| Starter Type | Non reversing |
| Complementary | |
| NEMA Size | 1 |
| Rated Current | 27 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Type of Overload | Melting alloy 3 |
| Horsepower Rating | 7.5 HP 200 V AC7.5 HP 230 V AC10 HP 460 V AC10 HP 575 V AC |
| SCCR | Circuit-breaker: 5 kA at 600 V ACFuse: 5 kA at 600 V AC |
| Coil Voltage | 208 V AC 60 Hz |
| Control Circuit Type | Common control circuit |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Terminal Type | Screw clamp terminals |
| Height | 12.75 in (323.85 mm) |
| Width | 6.38 in (162.05 mm) |
| Depth | 8.53 in (216.66 mm) |
| Environment | |
| Enclosure Type | NEMA 12 painted sheet steel |
| Certifications | UL ListedCSANEMA |
| Ordering and shipping details | |
| Category | US10CP121192 |
| Discount Schedule | 0CP1 |
| GTIN | 785901765028 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.00 in (17.78 cm) |
| Package 1 Width | 8.200 in (20.828 cm) |
| Package 1 Length | 13.200 in (33.528 cm) |
| Package weight(Lbs) | 12.330 lb(US) (5.593 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

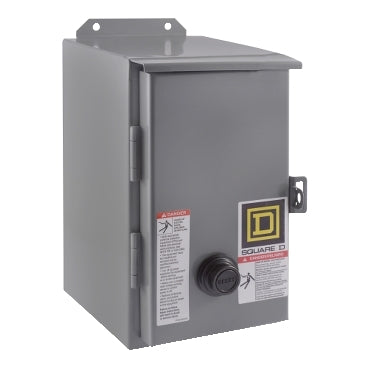

8536SCA3V08
8536SCA3V08
