Description
| Main | |
|---|---|

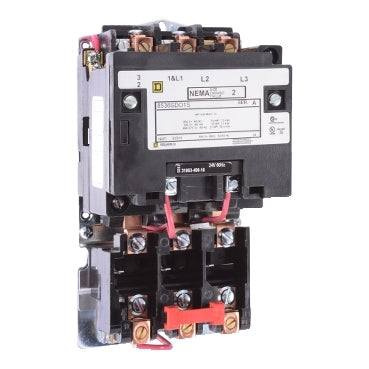

| Product Type | Motor starter |
| Product Range | S |
| Starter Type | Non reversing |
| Complementary | |
| NEMA Size | 2 |
| Rated Current | 45 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Type of Overload | Melting alloy 3 |
| Horsepower Rating | 10 HP 200 V AC15 HP 230 V AC25 HP 460 V AC25 HP 575 V AC |
| SCCR | Circuit-breaker: 5 kA at 600 V ACFuse: 5 kA at 600 V AC |
| Coil Voltage | 208 V AC 60 Hz |
| Control Circuit Type | Common control circuit |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Terminal Type | Screw clamp terminals |
| Height | 7.81 in (198.37 mm) |
| Width | 4.31 in (109.47 mm) |
| Depth | 4.94 in (125.48 mm) |
| Environment | |
| Enclosure Type | Not rated (open device) |
| Certifications | UL ListedCSANEMA |
| Ordering and shipping details | |
| Category | US10CP121192 |
| Discount Schedule | 0CP1 |
| GTIN | 785901784517 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.00 in (17.78 cm) |
| Package 1 Width | 6.600 in (16.764 cm) |
| Package 1 Length | 9.400 in (23.876 cm) |
| Package weight(Lbs) | 6.751 lb(US) (3.062 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 104 |
| Package 2 Height | 40.0 in (101.6 cm) |
| Package 2 Width | 40.0 in (101.6 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 703.632 lb(US) (319.162 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
8536SDO1V08
8536SDO1V08
