Description
| Main | |
|---|---|

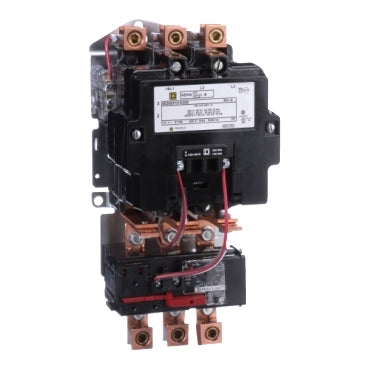

| Product Type | Motor starter |
| Product Range | S |
| Starter Type | Non reversing |
| Complementary | |
| NEMA Size | 5 |
| Rated Current | 270 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Type of Overload | Solid state Motor Logic class 10/20 |
| Horsepower Rating | 75 HP 200 V AC100 HP 230 V AC200 HP 460 V AC200 HP 575 V AC |
| SCCR | Circuit-breaker 400 A maximum: 100 kA at 480 V ACFuse J 400 A maximum: 100 kA at 600 V ACFuse T 400 A maximum: 100 kA at 600 V ACFuse RK1 400 A maximum: 100 kA at 600 V ACFuse RK5 400 A maximum: 100 kA at 600 V AC |
| Coil Voltage | 110 V AC 50 Hz120 V AC 60 Hz |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Terminal Type | Screw clamp terminals |
| Height | 17.56 in (446.02 mm) |
| Width | 8.56 in (217.42 mm) |
| Depth | 8.75 in (222.25 mm) |
| Environment | |
| Enclosure Type | Not rated (open device) |
| Certifications | UL ListedCSANEMA |
| Ordering and shipping details | |
| Category | US10CP121194 |
| Discount Schedule | 0CP1 |
| GTIN | 785901604082 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 9.00 in (22.86 cm) |
| Package 1 Width | 11.200 in (28.448 cm) |
| Package 1 Length | 17.600 in (44.704 cm) |
| Package weight(Lbs) | 32.0001 lb(US) (14.515 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
8536SGO1V02H30S
8536SGO1V02H30S
