8536SGO1V02S - Schneider Electric - 270 Amp 3 Pole 600 Volt Square D Electric Motor Starter
Roll over image to zoom in Click on image to zoom
8536SGO1V02S - Schneider Electric - 270 Amp 3 Pole 600 Volt Square D Electric Motor Starter

8536SGO1V02S - Schneider Electric - 270 Amp 3 Pole 600 Volt Square D Electric Motor Starter

Square DSKU: SQD8536SGO1V02S
Price:
$5,308.16
Stock:
Sold out

Description

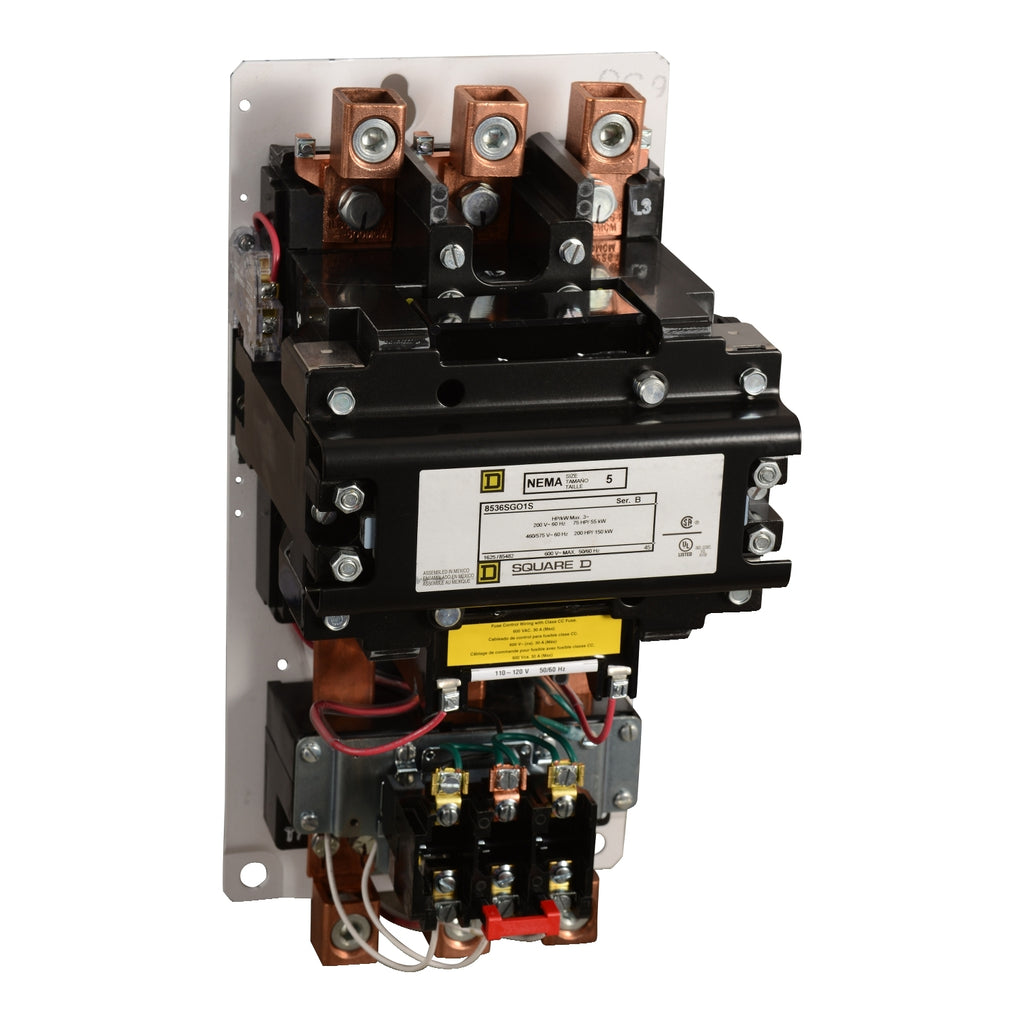

8536SGO1V02S - Schneider Electric - 270 Amp 3 Pole Square D Electric Motor Starter

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating. This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.



GENERAL SPECIFICATIONS

Main
Product Type Motor starter
Product Range S
Starter Type Non reversing
Complementary
NEMA Size 5
Rated Current 270 A
Number of Poles 3P
Maximum Voltage Rating 600 V AC
Phase 3 phase
Type of Overload Melting alloy 3
Horsepower Rating 75 HP 200 V AC
100 HP 230 V AC
200 HP 460 V AC
200 HP 575 V AC
SCCR Circuit-breaker: 10 kA at 600 V AC
Fuse: 10 kA at 600 V AC
Coil Voltage 110 V AC 50 Hz
120 V AC 60 Hz
Control Circuit Type Separate control circuit
Control Units No control units
Pilot Light Without pilot light
Auxiliary Contacts Without
Terminal Type Screw clamp terminals
Height 17.56 in (446.02 mm)
Width 8.56 in (217.42 mm)
Depth 8.75 in (222.25 mm)
Environment
Enclosure Type Not rated (open device)
Certifications UL Listed
CSA
NEMA
Ordering and shipping details
Category US10CP121194
Discount Schedule 0CP1
GTIN 785901854821
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.30 in (26.162 cm)
Package 1 Width 11.00 in (27.940 cm)
Package 1 Length 19.80 in (50.292 cm)
Package 1 Weight 55.900 lb(US) (25.356 kg)
Unit Type of Package 2 PAL
Number of Units in Package 2 24
Package 2 Height 40.00 in (101.600 cm)
Package 2 Width 40.00 in (101.600 cm)
Package 2 Length 48.00 in (121.920 cm)
Package 2 Weight 1341.999 lb(US) (608.720 kg)
