8903LG1200V02 - Schneider Electric - 30 Amp 12 Pole 120 Volt Square D Magnetic Contactor
Roll over image to zoom in Click on image to zoom
8903LG1200V02 - Schneider Electric - 30 Amp 12 Pole 120 Volt Square D Magnetic Contactor

8903LG1200V02 - Schneider Electric - 30 Amp 12 Pole 120 Volt Square D Magnetic Contactor

Square DSKU: SQD8903LG1200V02
Price:
$1,100.88
Stock:
Sold out

Description

8903LG1200V02 - Schneider Electric - 30 Amp 12 Pole 120 Volt Square D Magnetic Contactor

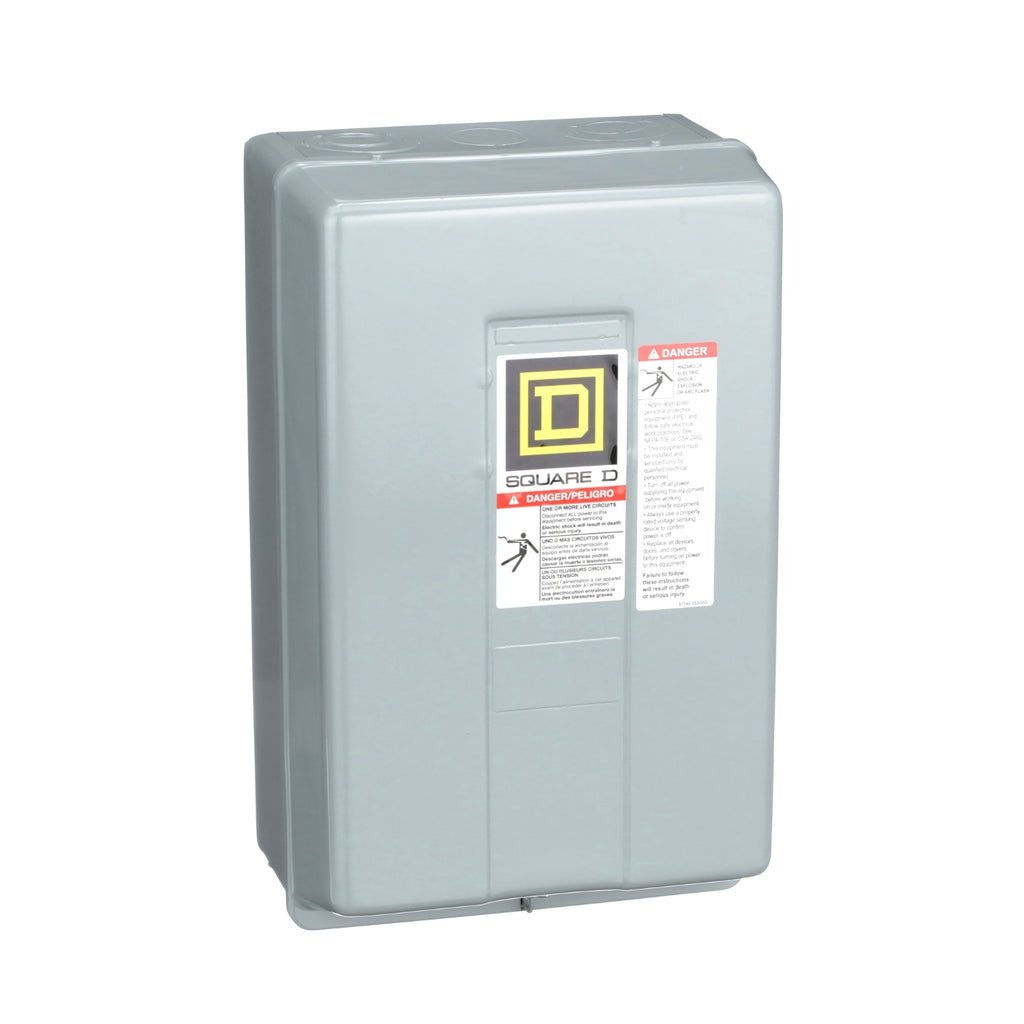

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

GENERAL SPECIFICATIONS

Main
Product or Component Type Electrically Held Lighting Contactor
Range of Product 8903L
Control Circuit Separate control circuit
Complementary
Control Circuit Voltage 110 V AC 50 Hz
120 V AC 60 Hz
Inrush power in VA 150 VA 60 Hz
170 VA 50 Hz
Hold-in power consumption in VA 35 VA 60 Hz
35 VA 50 Hz
Current Rating 20 A tungsten
30 A fluorescent
Number of Poles 12P 12 NO
Control Unit No control units
Pilot Light No indicator
Electrical Connection Screw-clamp terminals
Height 12.7 in (322 mm)
Depth 6.02 in (153 mm)
Width 7.8 in (198 mm)
Net Weight 11.001 lb(US) (4.99 kg)
Environment
Enclosure Type NEMA 1 painted sheet steel surface
Product Certifications UL Listed
CSA
Ordering and shipping details
Category US10CP121321
Discount Schedule 0CP1
GTIN 785901851615
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.20 in (18.3 cm)
Package 1 Width 8.31 in (21.1 cm)
Package 1 Length 13.70 in (34.8 cm)
Package 1 Weight 11.07 lb(US) (5.02 kg)
Unit Type of Package 2 PAL
Number of Units in Package 2 50
Package 2 Height 40.00 in (101.6 cm)
Package 2 Width 40.00 in (101.6 cm)
Package 2 Length 48.00 in (121.92 cm)
Package 2 Weight 553.497 lb(US) (251.062 kg)
Compliance
Compliance TAA Compliant

PRODUCT DATASHEET

Schneider Electric_Type-L-LX-Lighting-Contactors_8903LG1200V02
