Description

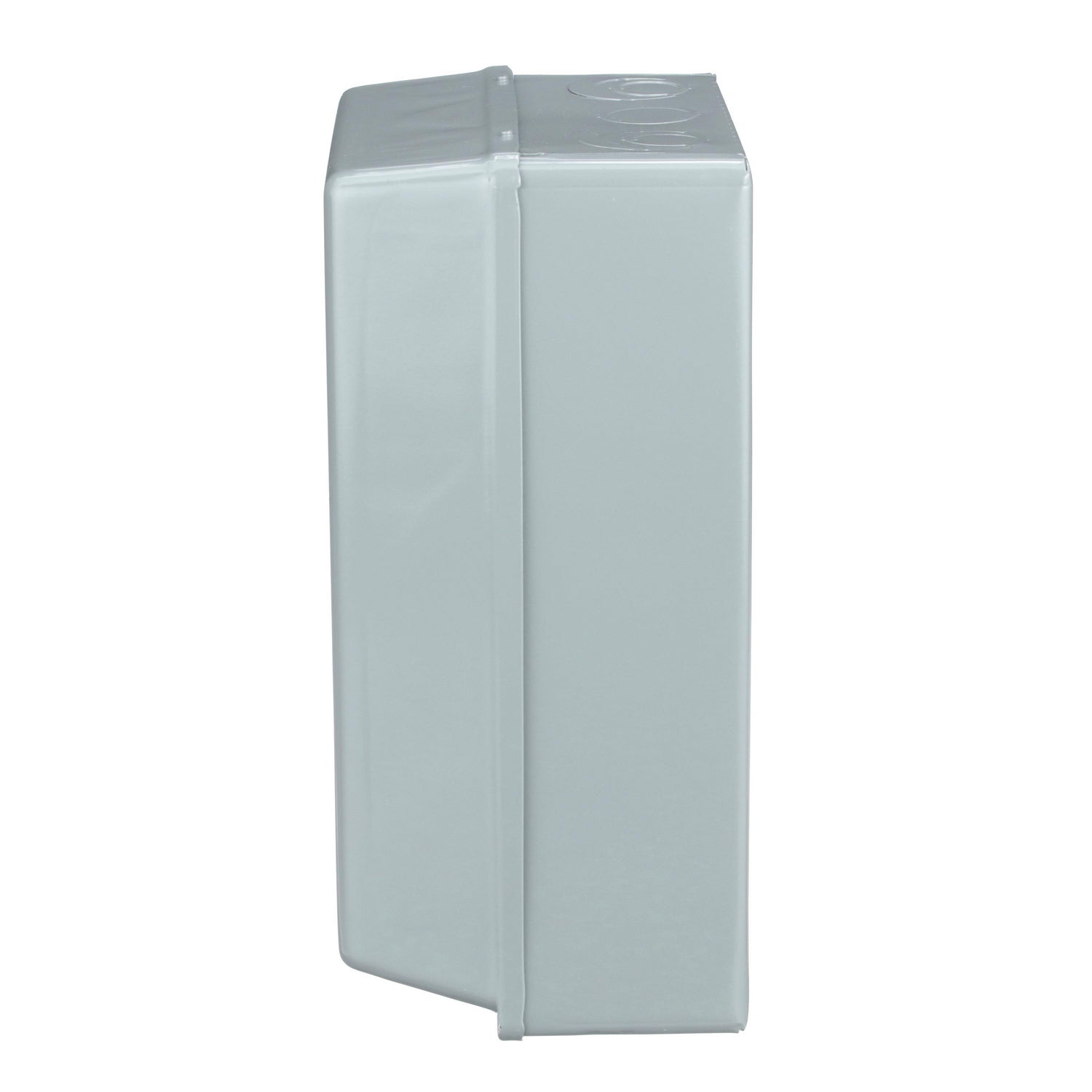

8903LG30V02 - Schneider Electric - 30 Amp 3 Pole 600 Volt Square D Multipole Lighting

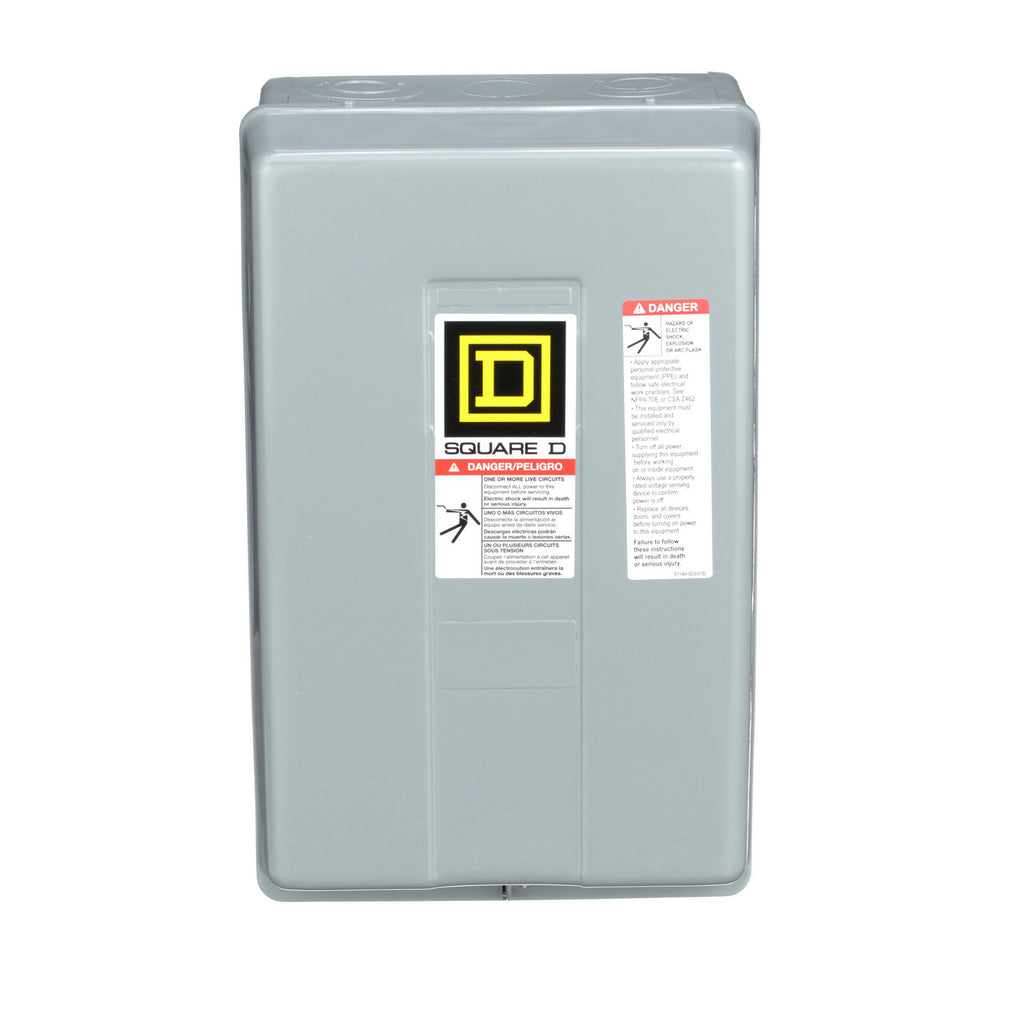

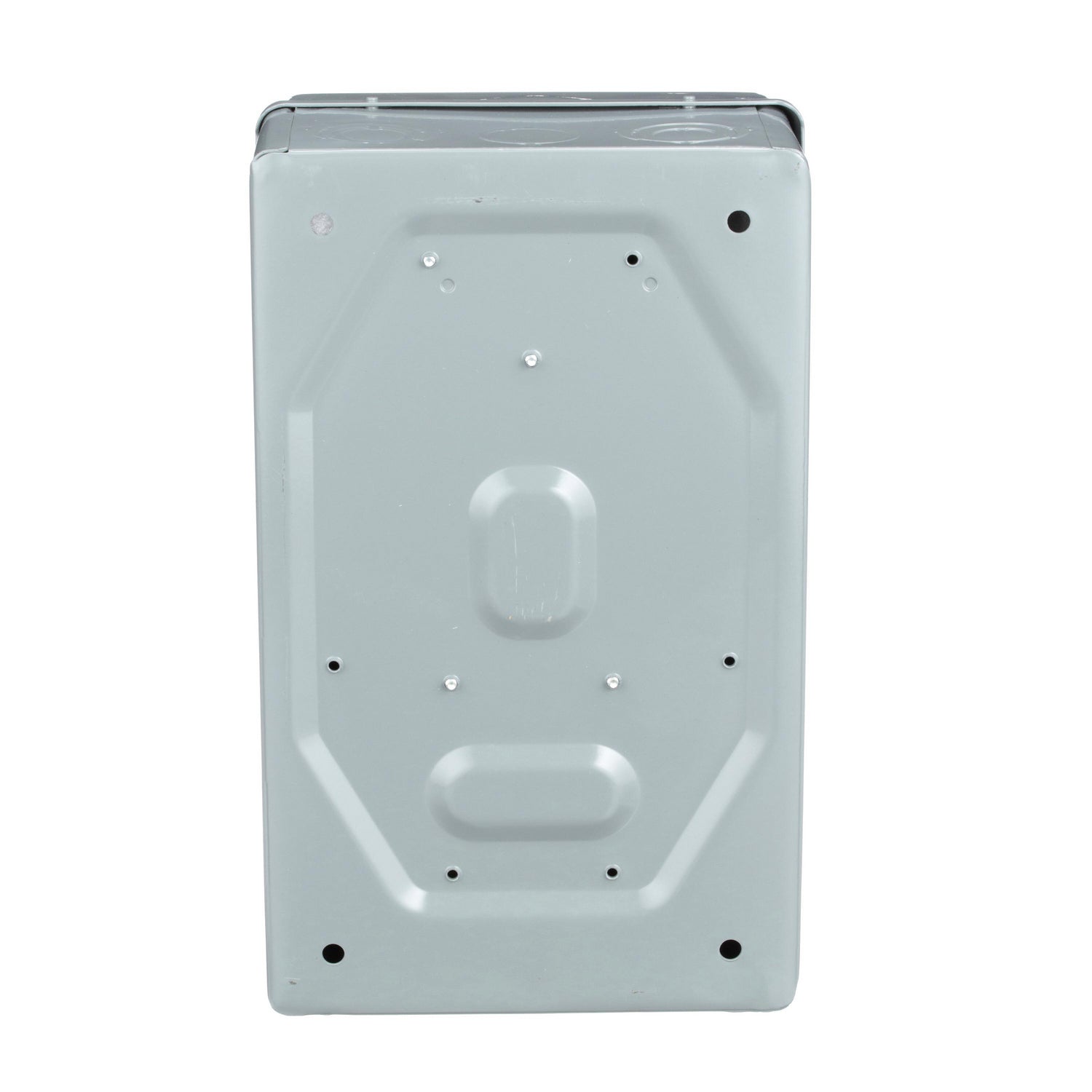

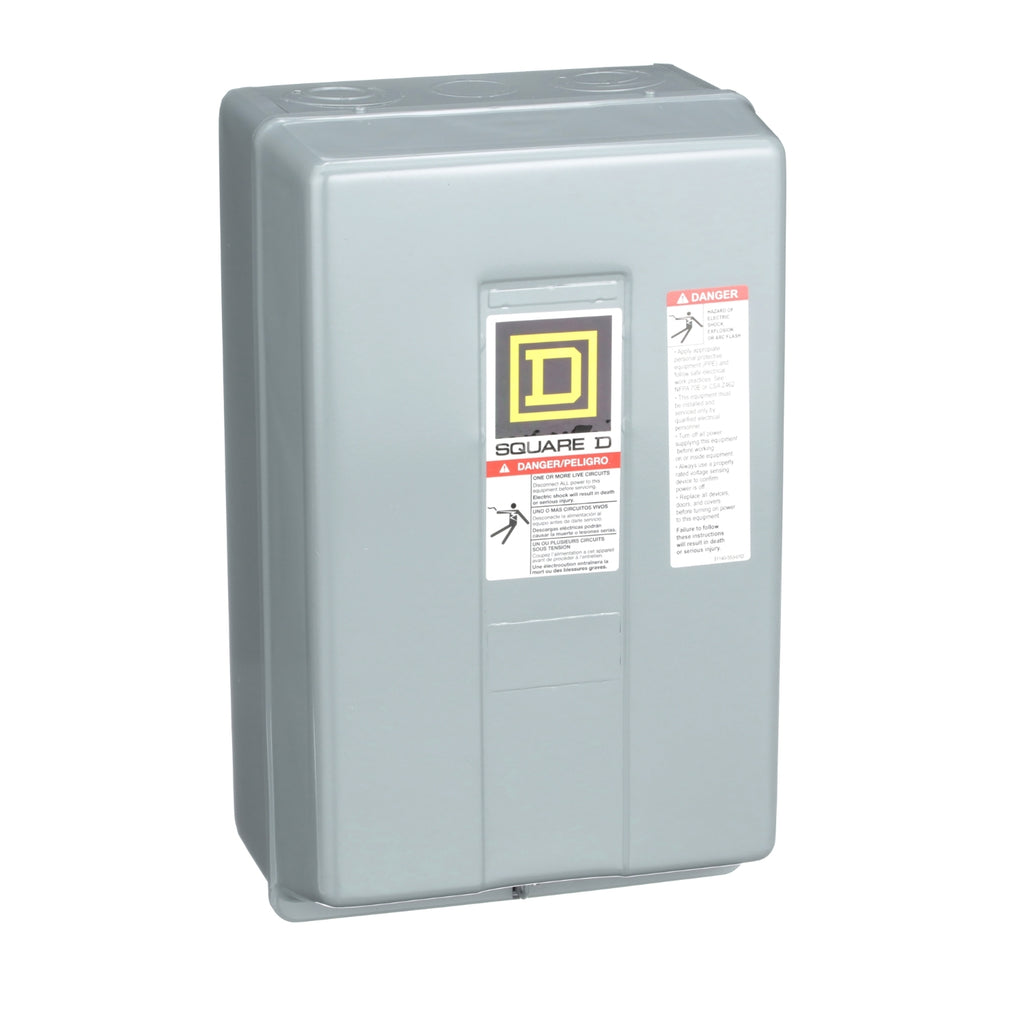

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Electrically Held Lighting Contactor |
|---|---|
| Range of Product | 8903L |
| Control Circuit | Separate control circuit |
| Control Circuit Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
|---|---|
| Inrush power in VA | 150 VA 60 Hz 140 VA 50 Hz |
| Hold-in power consumption in VA | 30 VA 60 Hz 30 VA 50 Hz |
| Current Rating | 20 A tungsten 30 A fluorescent |
| Number of Poles | 3P 3 NO |
| Control Unit | No control units |
| Pilot Light | No indicator |
| Electrical Connection | Screw-clamp terminals |
| Height | 12.7 in (322 mm) |
| Depth | 6.02 in (153 mm) |
| Width | 7.8 in (198 mm) |
| Enclosure Type | NEMA 1 painted sheet steel surface |
|---|---|
| Product Certifications | UL Listed CSA |
| Category | US10CP121321 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901851301 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.20 in (18.3 cm) |
| Package 1 Width | 8.39 in (21.3 cm) |
| Package 1 Length | 13.70 in (34.8 cm) |
| Package 1 Weight | 9.57 lb(US) (4.34 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 40.00 in (101.6 cm) |
| Package 2 Width | 40.00 in (101.6 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 484.435 lb(US) (219.736 kg) |
PRODUCT DATASHEET
Schneider Electric_Type-L-LX-Lighting-Contactors_8903LG30V02
