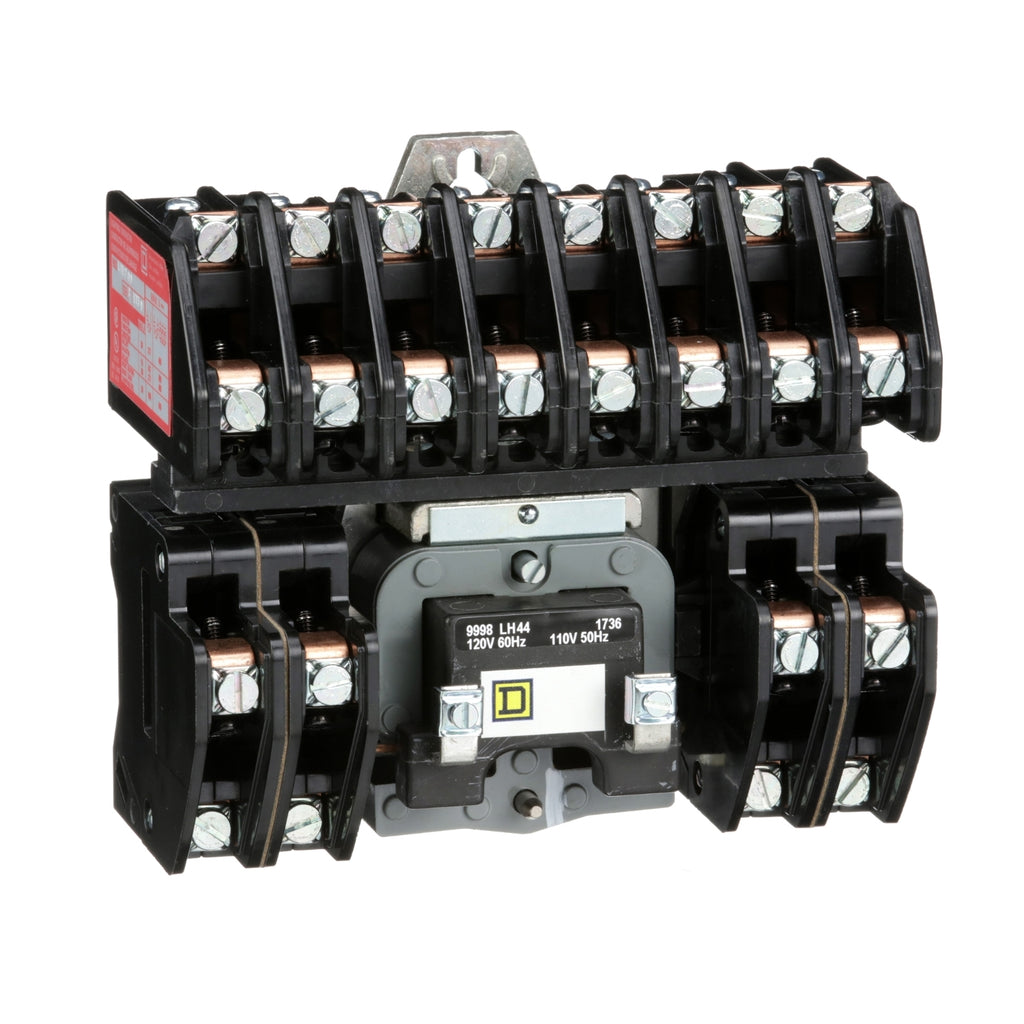

8903LO1200V02 - Schneider Electric - 30 Amp 12 Pole 600 V Square D Multipole Lighting
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Electrically Held Lighting Contactor |
|---|---|
| Range of Product | 8903L |
| Control Circuit | Separate control circuit |
| Control Circuit Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
|---|---|
| Inrush power in VA | 150 VA 60 Hz 170 VA 50 Hz |
| Hold-in power consumption in VA | 35 VA 60 Hz 35 VA 50 Hz |
| Current Rating | 20 A tungsten 30 A fluorescent |
| Number of Poles | 12P 12 NO |
| Control Unit | No control units |
| Pilot Light | No indicator |
| Electrical Connection | Screw-clamp terminals |
| Height | 5.0000000000 in (127 mm) |
| Depth | 3.1 in (79 mm) |
| Width | 5.6 in (143 mm) |
| Enclosure Type | Not rated (open device) |
|---|---|
| Product Certifications | UL Listed CSA |
| Category | US10CP121321 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901851813 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.70 in (14.478 cm) |
| Package 1 Width | 6.80 in (17.272 cm) |
| Package 1 Length | 7.90 in (20.066 cm) |
| Package 1 Weight | 4.381 lb(US) (1.987 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 126 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 552.0005 lb(US) (250.383 kg) |
PRODUCT DATASHEET
Schneider Electric_Type-L-LX-Lighting-Contactors_8903LO1200V02
