Description

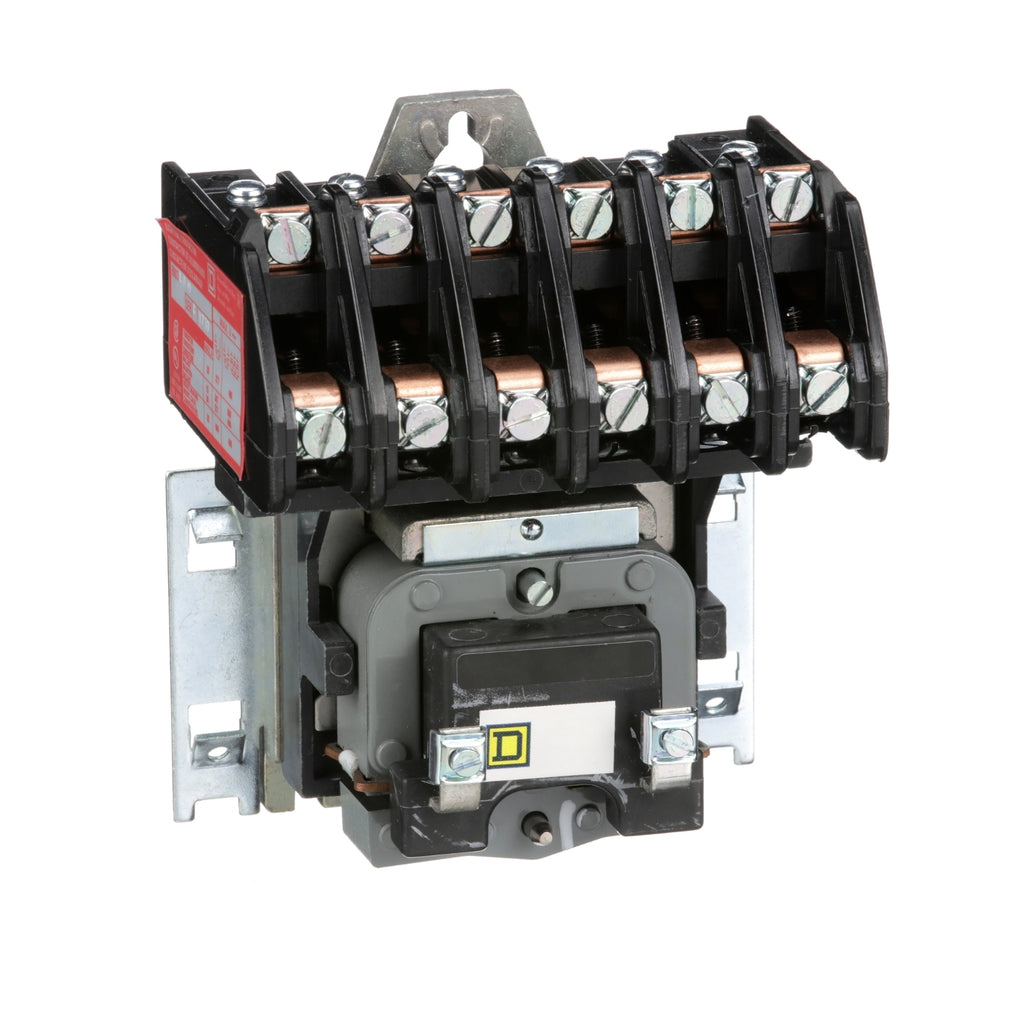

8903LO60V04 - Schneider Electric - 30 Amp 6 Pole 600V Square D Multipole Lighting
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 4.25 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Electrically Held Lighting Contactor |
|---|---|
| Range of Product | 8903L |
| Control Circuit | Separate control circuit |
| Control Circuit Voltage | 277 V AC 60 Hz |
|---|---|
| Inrush power in VA | 150 VA 60 Hz |
| Hold-in power consumption in VA | 30 VA 60 Hz |
| Current Rating | 20 A tungsten 30 A fluorescent |
| Number of Poles | 6P 6 NO |
| Control Unit | No control units |
| Pilot Light | No indicator |
| Electrical Connection | Screw-clamp terminals |
| Height | 5.0000000000 in (127 mm) |
| Depth | 3.1 in (79 mm) |
| Width | 4.3 in (108 mm) |
| Enclosure Type | Not rated (open device) |
|---|---|
| Product Certifications | UL Listed CSA |
| Category | US10CP121321 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901455899 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.80 in (12.192 cm) |
| Package 1 Width | 6.00 in (15.24 cm) |
| Package 1 Length | 6.80 in (17.272 cm) |
| Package 1 Weight | 3.269 lb(US) (1.483 kg) |
PRODUCT DATASHEET
Schneider Electric_Type-L-LX-Lighting-Contactors_8903LO60V04
