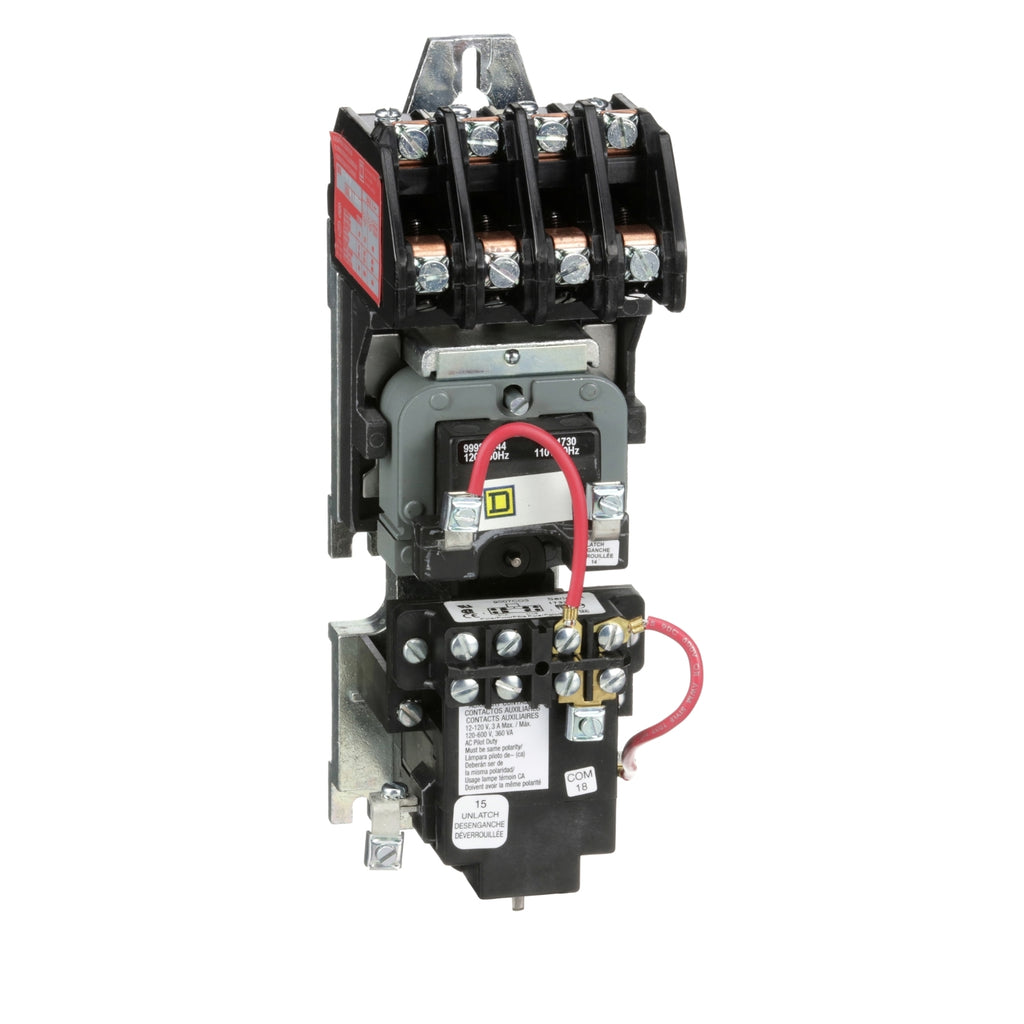

8903LXO40V02 - Schneider Electric - 30 Amp 4 Pole 600 V Square D Multipole Lighting
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 2.88 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Mechanically Held Lighting Contactor |
|---|---|
| Range of Product | 8903LX |
| Control Circuit | Separate control circuit |
| Control Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
|---|---|
| Inrush power in VA | 150 VA 60 Hz 140 VA 50 Hz 25 VA 50/60 Hz |
| Current Rating | 20 A tungsten 30 A fluorescent |
| Number of Poles | 4P 4 NO |
| Control Unit | No control units |
| Pilot Light | No indicator |
| Other Options | None |
| Electrical Connection | Screw-clamp terminals |
| Height | 8.8 in (224 mm) |
| Depth | 3.3 in (83 mm) |
| Width | 2.9 in (73 mm) |
| Enclosure Type | Not rated (open device) |
|---|---|
| Product Certifications | UL Listed CSA |
| Category | US10CP121322 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901057321 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.45 in (11.4 cm) |
| Package 1 Width | 7.40 in (18.8 cm) |
| Package 1 Length | 10.5 in (26.7 cm) |
| Package 1 Weight | 4.54 lb(US) (2.06 kg) |
