Description
| Main | |
|---|---|

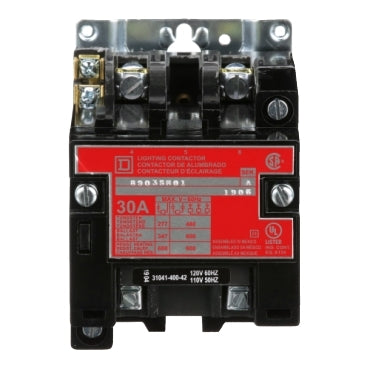

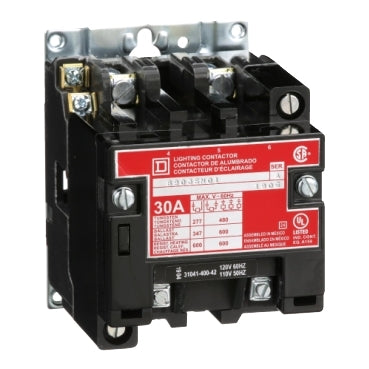

| Product | Electrically Held Lighting Contactor |
| Type | S |
| Complementary | |
| Control Circuit Voltage | 120 V AC 60 Hz110 V AC 50 Hz |
| Current Rating | 30 A |
| Number of Poles | 2P |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Other Options | None |
| Electrical Connection | Lugs |
| Height | 3.5 in (89 mm) |
| Depth | 4.2 in (107 mm) |
| Width | 3.2 in (82 mm) |
| Environment | |
| Enclosure Type | Not rated (open device) surface none |
| Product Certifications | UL ListedCSA |
| Ordering and shipping details | |
| Category | US10CP121325 |
| Discount Schedule | 0CP1 |
| GTIN | 785901619536 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.5 in (11.4 cm) |
| Package 1 Width | 5.9 in (15.0 cm) |
| Package 1 Length | 8.0 in (20.3 cm) |
| Package weight(Lbs) | 3.02 lb(US) (1.37 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
8903SMO1V02
8903SMO1V02
