Description
"
Specifications
| Main | |

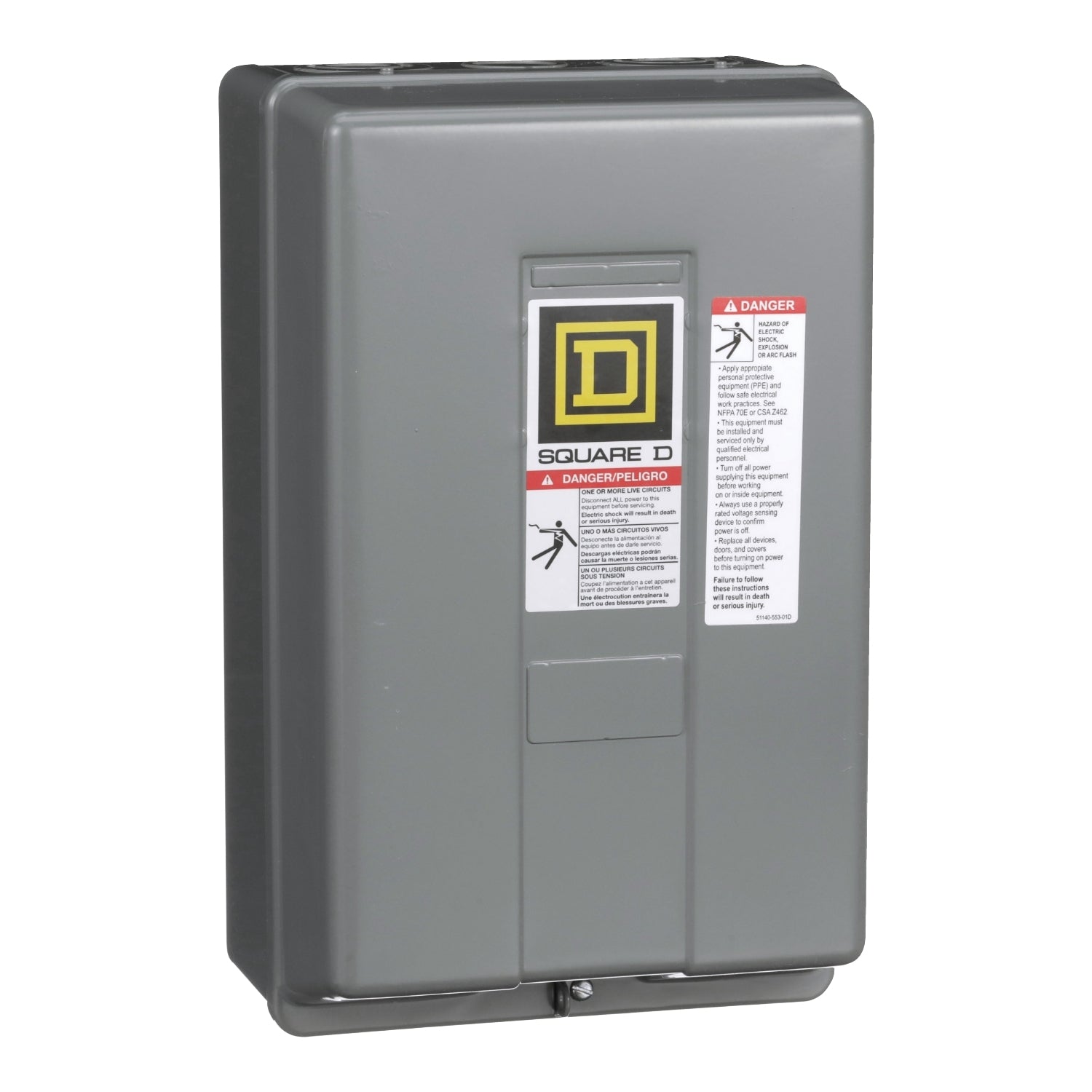

| Product | Electrically Held Lighting Contactor |
|---|---|
| Type | S |
| Complementary | |
| Control Circuit Voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Current Rating | 60 A |
| Number of Poles | 3P |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Other Options | None |
| Electrical Connection | Lugs |
| Height | 12.7 in (322 mm) |
| Depth | 6.02 in (153 mm) |
| Width | 7.8 in (198 mm) |
| Environment | |
| Enclosure Type | NEMA 1 painted sheet steel surface none |
| Product Certifications | UL Listed CSA |
| Ordering and shipping details | |
| Category | US10CP121325 |
| Discount Schedule | 0CP1 |
| GTIN | 785901619499 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nr. of units in pkg. | 1 |
| Package 1 Height | 7.50 in (19.05 cm) |
| Package 1 Width | 8.200 in (20.828 cm) |
| Package 1 Length | 13.300 in (33.782 cm) |
| Package weight(Lbs) | 12.240 lb (US) (5.552 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
