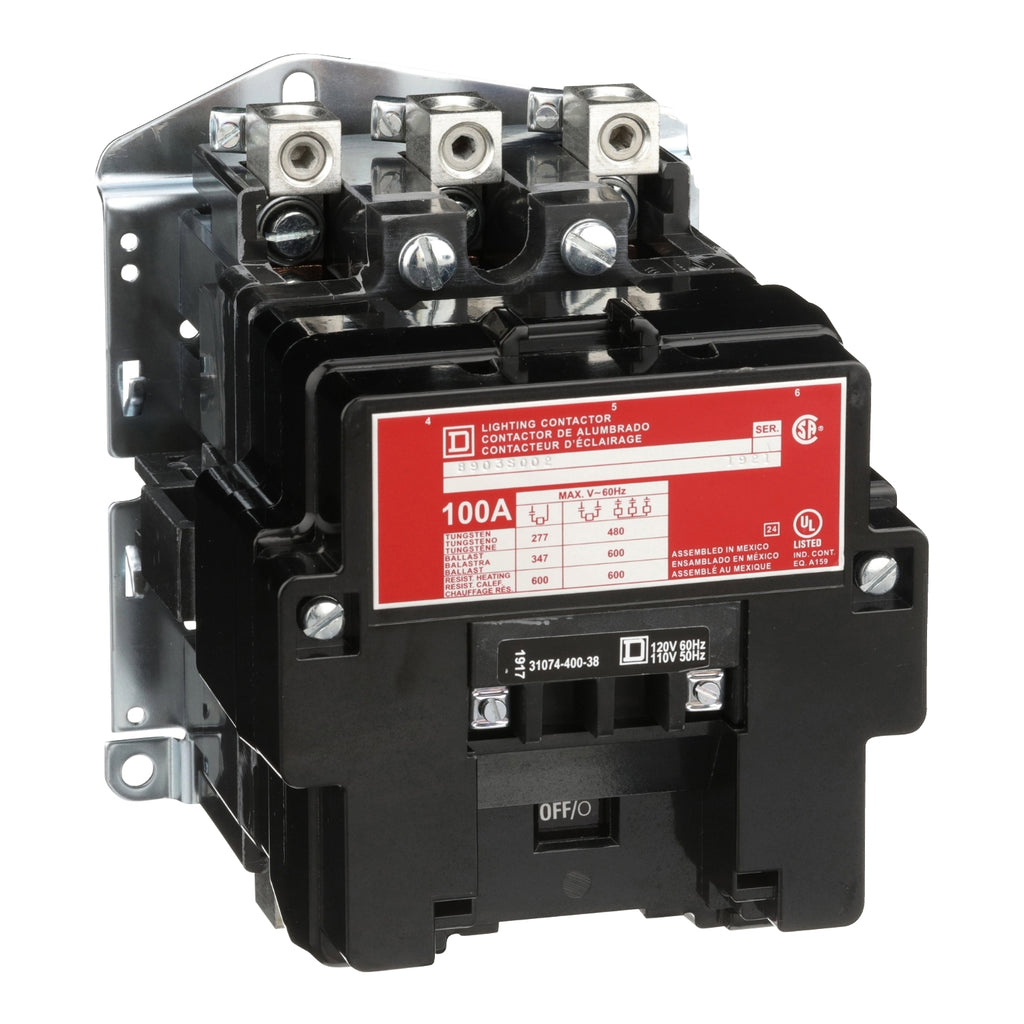

8903SQO2V02 - Schneider Electric - 100 A 3 Pole Square D Electrically Held Lighting Contactor
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 7.26 inches tall, 5.45 inches wide and 6.50 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product | Electrically Held Lighting Contactor |
|---|---|
| Type | S |
| Control Circuit Voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
|---|---|
| Current Rating | 100 A |
| Number of Poles | 3P |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Without |
| Other Options | None |
| Electrical Connection | Lugs |
| Height | 7.2 in (184 mm) |
| Depth | 6.5 in (165 mm) |
| Width | 5.4 in (138 mm) |
| Enclosure Type | Not rated (open device) surface none |
|---|---|
| Product Certifications | UL Listed CSA |
| Category | US10CP121325 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901619420 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.40 in (18.796 cm) |
| Package 1 Width | 8.80 in (22.352 cm) |
| Package 1 Length | 14.30 in (36.322 cm) |
| Package 1 Weight | 12.851 lb(US) (5.829 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 775.0004 lb(US) (351.534 kg) |
PRODUCT DATASHEET
Schneider Electric_Type-S-Multipole-Lighting-Contactors-8903_8903SQO2V02
