8910DP32V02 - Schneider Electric - 30 Amp 2 Pole 600 Volt Square D Definite Purpose Contactors
Roll over image to zoom in Click on image to zoom
8910DP32V02 - Schneider Electric - 30 Amp 2 Pole 600 Volt Square D Definite Purpose Contactors

8910DP32V02 - Schneider Electric - 30 Amp 2 Pole 600 Volt Square D Definite Purpose Contactors

Square DSKU: SQD8910DP32V02
Price:
$45.61
Stock:
Sold out

Description

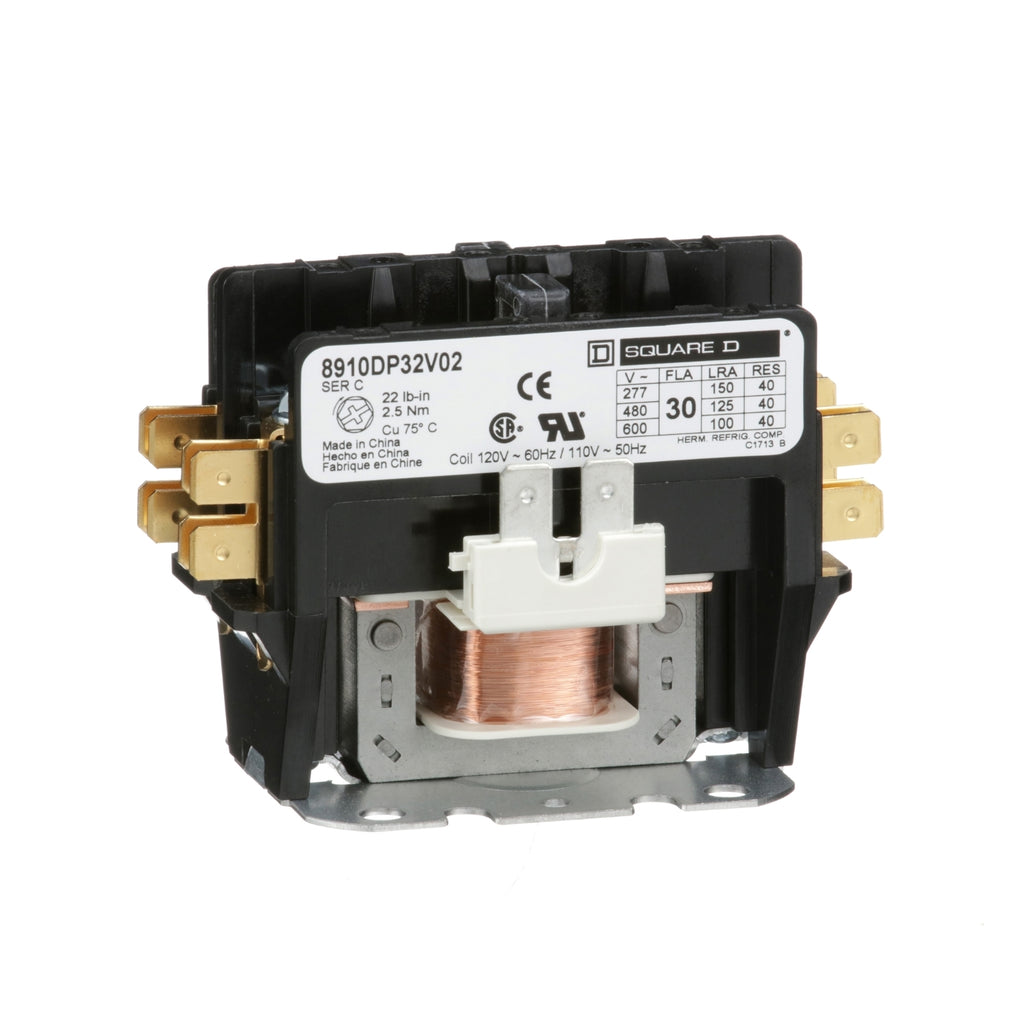

8910DP32V02 - Schneider Electric - 30 Amp 2 Pole 600 Volt Square D Definite Purpose Contactors

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

GENERAL SPECIFICATIONS

Main
Product or Component Type Definite Purpose Contactor
Line Rated Current 30 A
Number of Poles 2P
Pole contact composition 2 NO
Range of Product DP
Complementary
Maximum Horse Power Rating 2 hp 115 V AC, 1 phase
5 hp 230 V AC, 1 phase
Locked rotor rated current 125 A 460 V AC
100 A 575 V AC
150 A 277 V AC
[Ue] rated operational voltage 600 V AC
[Uc] control circuit voltage 120 V AC 60 Hz
110 V AC 50 Hz
Phase 1 phase
Electrical Connection Binder head
Quick connect terminals
Environment
Product Certifications UL Recognized
CSA
Ordering and shipping details
Category US1CP1B21356
Discount Schedule CP1B
GTIN 785901073338
Returnability Yes
Country of origin CN
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.600 in (6.604 cm)
Package 1 Width 3.400 in (8.636 cm)
Package 1 Length 2.300 in (5.842 cm)
Package weight(Lbs) 9.600 oz (272.155 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 12
Package 2 Height 5.800 in (14.732 cm)
Package 2 Width 7.100 in (18.034 cm)
Package 2 Length 7.200 in (18.288 cm)
Package 2 Weight 7.531 lb(US) (3.416 kg)

PRODUCT DATASHEET

Schneider Electric_Definite-Purpose-Contactors-8910_8910DP32V02
