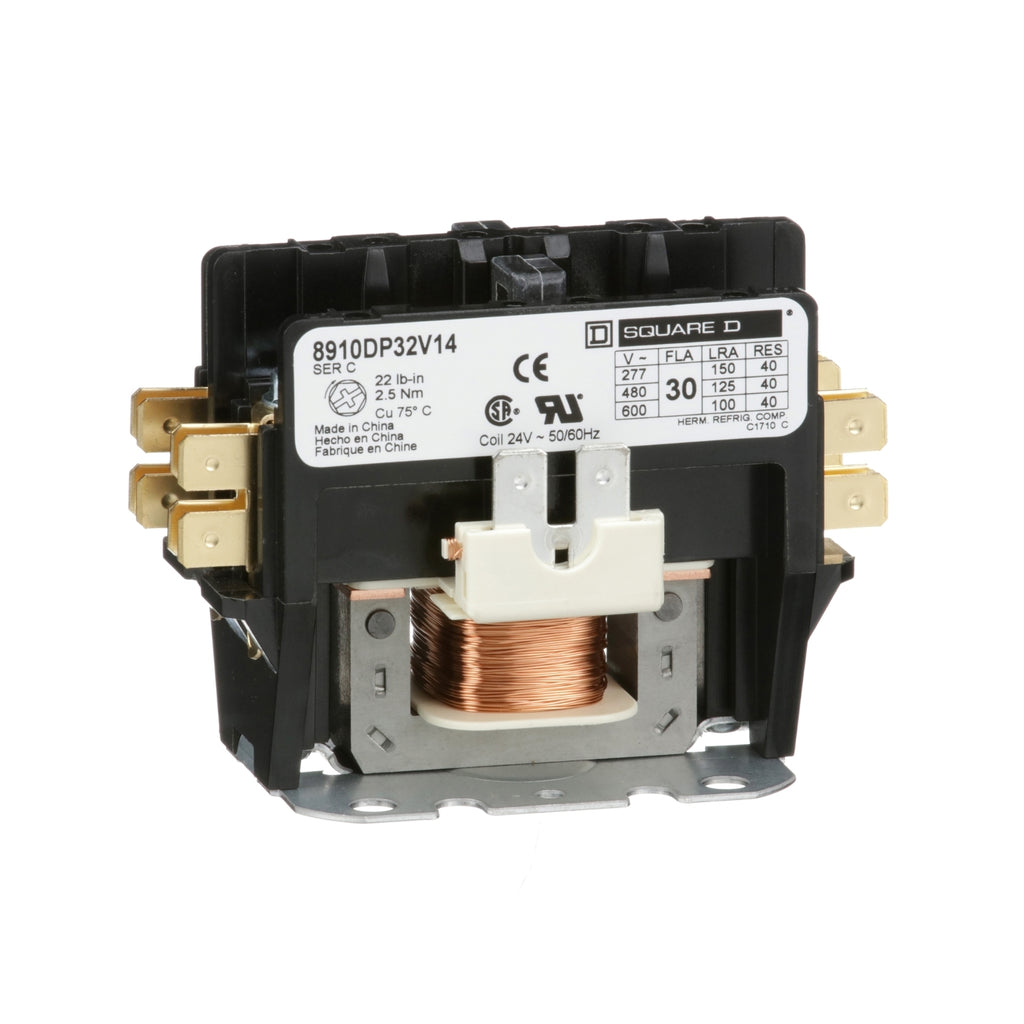

8910DP32V14 - Schneider Electric - 30 Amp 2 Pole Square D Definite Purpose Contactor
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 30 A |
| Number of Poles | 2P |
| Pole contact composition | 2 NO |
| Range of Product | DP |
| Maximum Horse Power Rating | 2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase |
|---|---|
| Locked rotor rated current | 125 A 460 V AC 100 A 575 V AC 150 A 277 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Phase | 1 phase |
| Electrical Connection | Binder head Quick connect terminals |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21356 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080442 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.90 in (14.986 cm) |
| Package 1 Width | 6.90 in (17.526 cm) |
| Package 1 Length | 7.30 in (18.542 cm) |
| Package 1 Weight | 7.101 lb(US) (3.221 kg) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 5.80 in (14.732 cm) |
| Package 2 Width | 7.00 in (17.780 cm) |
| Package 2 Length | 7.50 in (19.050 cm) |
| Package 2 Weight | 7.551 lb(US) (3.425 kg) |
