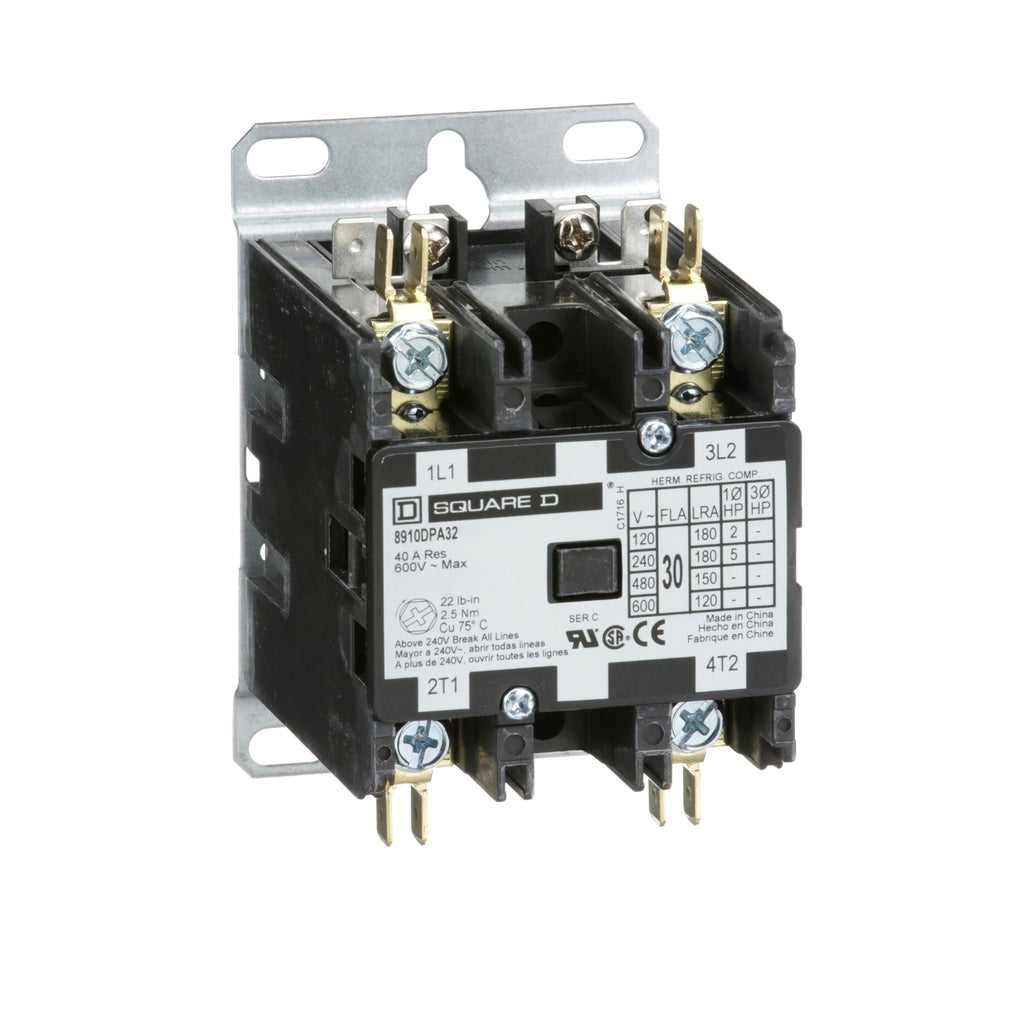

8910DPA32V04 - Schneider Electric - 30 Amp 2 Pole Square D Definite Purpose Contactor
Roll over image to zoom in Click on image to zoom
8910DPA32V04 - Schneider Electric - 30 Amp 2 Pole Square D Definite Purpose Contactor

8910DPA32V04 - Schneider Electric - 30 Amp 2 Pole Square D Definite Purpose Contactor

Square DSKU: SQD8910DPA32V04
Price:
$60.61
Stock:
Sold out

Description

8910DPA32V04 - Schneider Electric - 30 Amp 2 Pole  Square D Definite Purpose Contactor

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

GENERAL SPECIFICATIONS

Main
Product or Component Type Definite Purpose Contactor
Line Rated Current 30 A
Number of Poles 2P
Pole contact composition 2 NO
Range of Product DPA
Complementary
Maximum Horse Power Rating 2 hp 115 V AC, 1 phase
5 hp 230 V AC, 1 phase
Locked rotor rated current 150 A 460 V AC
120 A 575 V AC
180 A 277 V AC
[Ue] rated operational voltage 600 V AC
[Uc] control circuit voltage 277 V AC 60 Hz
Phase 1 phase
Electrical Connection Binder head
Quick connect terminals
Environment
Product Certifications UL Recognized
CSA
Ordering and shipping details
Category US1CP1B21343
Discount Schedule CP1B
GTIN 785901024408
Returnability Yes
Country of origin CN
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.50 in (6.35 cm)
Package 1 Width 3.20 in (8.128 cm)
Package 1 Length 4.20 in (10.668 cm)
Package 1 Weight 16.320 oz (462.664 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 8
Package 2 Height 7.00 in (17.78 cm)
Package 2 Width 5.60 in (14.224 cm)
Package 2 Length 8.50 in (21.59 cm)
Package 2 Weight 8.521 lb(US) (3.865 kg)


PRODUCT DATASHEET

Schneider Electric_Definite-Purpose-Contactors-8910_8910DPA32V04
