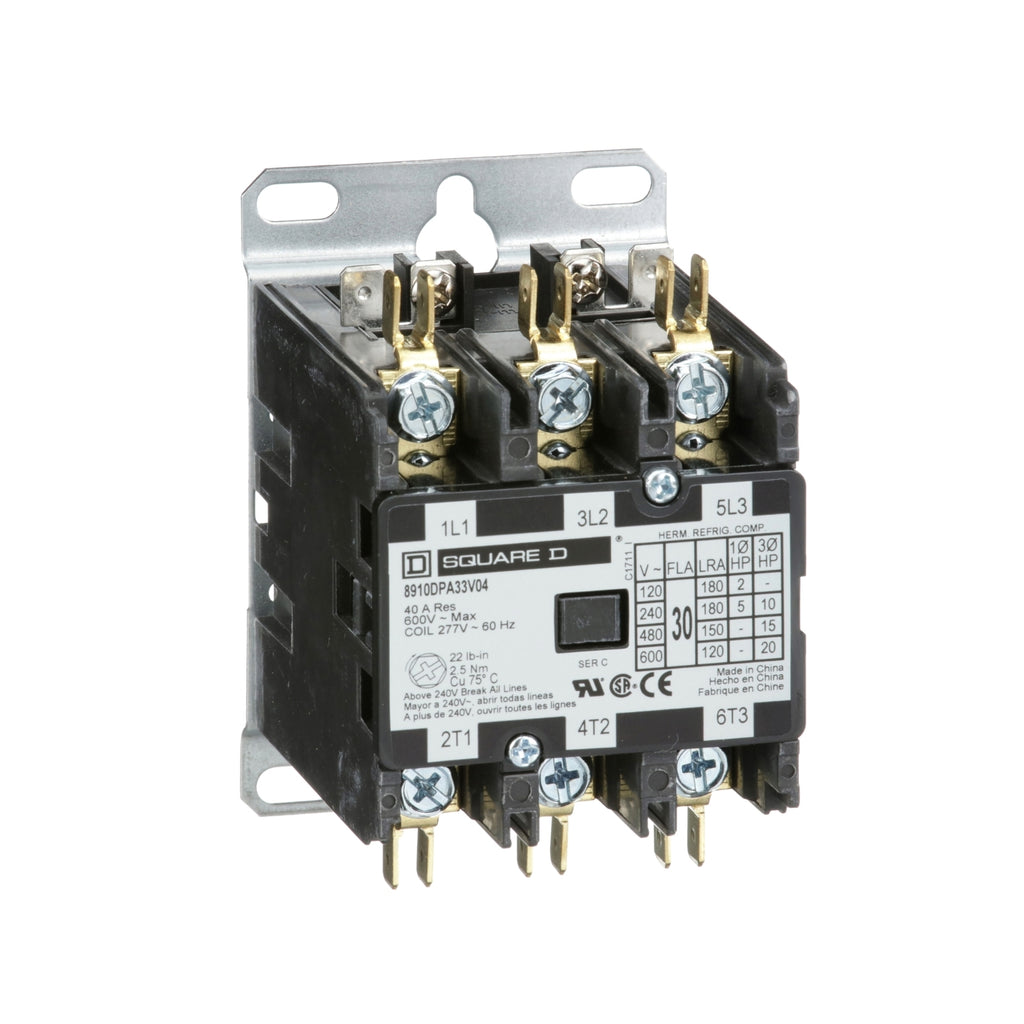

8910DPA33V04 - Schneider Electric - 30 Amp 3 Pole Square D Definite Purpose Contactor
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 30 A |
| Number of Poles | 3P |
| Pole contact composition | 3 NO |
| Range of Product | DPA |
| Maximum Horse Power Rating | 2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase 10 hp 230 V AC, 3 phase 15 hp 460 V AC, 3 phase 20 hp 575 V AC, 3 phase |
|---|---|
| Locked rotor rated current | 150 A 460 V AC 120 A 575 V AC 180 A 277 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 277 V AC 60 Hz |
| Phase | 3 phase |
| Electrical Connection | Quick connect terminals Binder head |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21343 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901024422 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.50 in (6.35 cm) |
| Package 1 Width | 3.20 in (8.128 cm) |
| Package 1 Length | 4.20 in (10.668 cm) |
| Package 1 Weight | 15.68 oz (444.52 g) |
