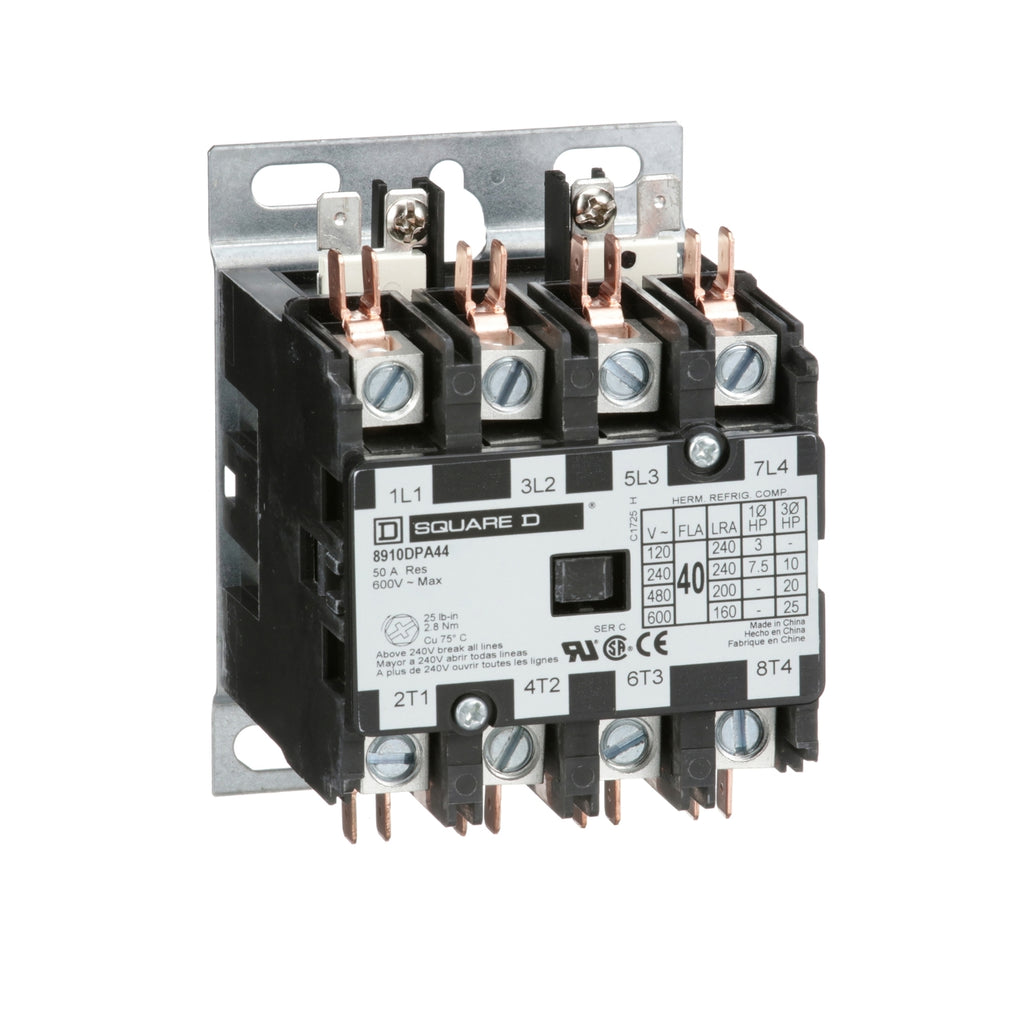

8910DPA44V09 - Schneider Electric - 40 Amp 4 Pole Square D Magnetic Contactor

8910DPA44V09 - Schneider Electric - 40 Amp 4 Pole Square D Magnetic Contactor

Square DSKU: SQD8910DPA44V09
Price:
$95.88
Stock:
Sold out

Description

8910DPA44V09 - Schneider Electric - 40 Amp 4 Pole  Square D Magnetic Contactor

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

GENERAL SPECIFICATIONS

Main
Product or Component Type Definite Purpose Contactor
Line Rated Current 40 A
Number of Poles 4P
Pole contact composition 4 NO
Range of Product DPA
Complementary
Maximum Horse Power Rating 3 hp 115 V AC, 1 phase
7.5 hp 230 V AC, 1 phase
10 hp 230 V AC, 3 phase
20 hp 460 V AC, 3 phase
25 hp 575 V AC, 3 phase
Locked rotor rated current 240 A 277 V AC
200 A 460 V AC
160 A 575 V AC
[Ue] rated operational voltage 600 V AC
[Uc] control circuit voltage 208...240 V AC 60 Hz
220 V AC 50 Hz
Phase 3 phase
Electrical Connection Quick connect terminals
Box lugs
Environment
Product Certifications UL Recognized
CSA
Ordering and shipping details
Category US1CP1B21344
Discount Schedule CP1B
GTIN 785901749837
Returnability Yes
Country of origin CN
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.30 in (8.382 cm)
Package 1 Width 3.30 in (8.382 cm)
Package 1 Length 4.30 in (10.922 cm)
Package 1 Weight 20.480 oz (580.598 g)



PRODUCT DATASHEET

Schneider Electric_Definite-Purpose-Contactors-8910_8910DPA44V09
