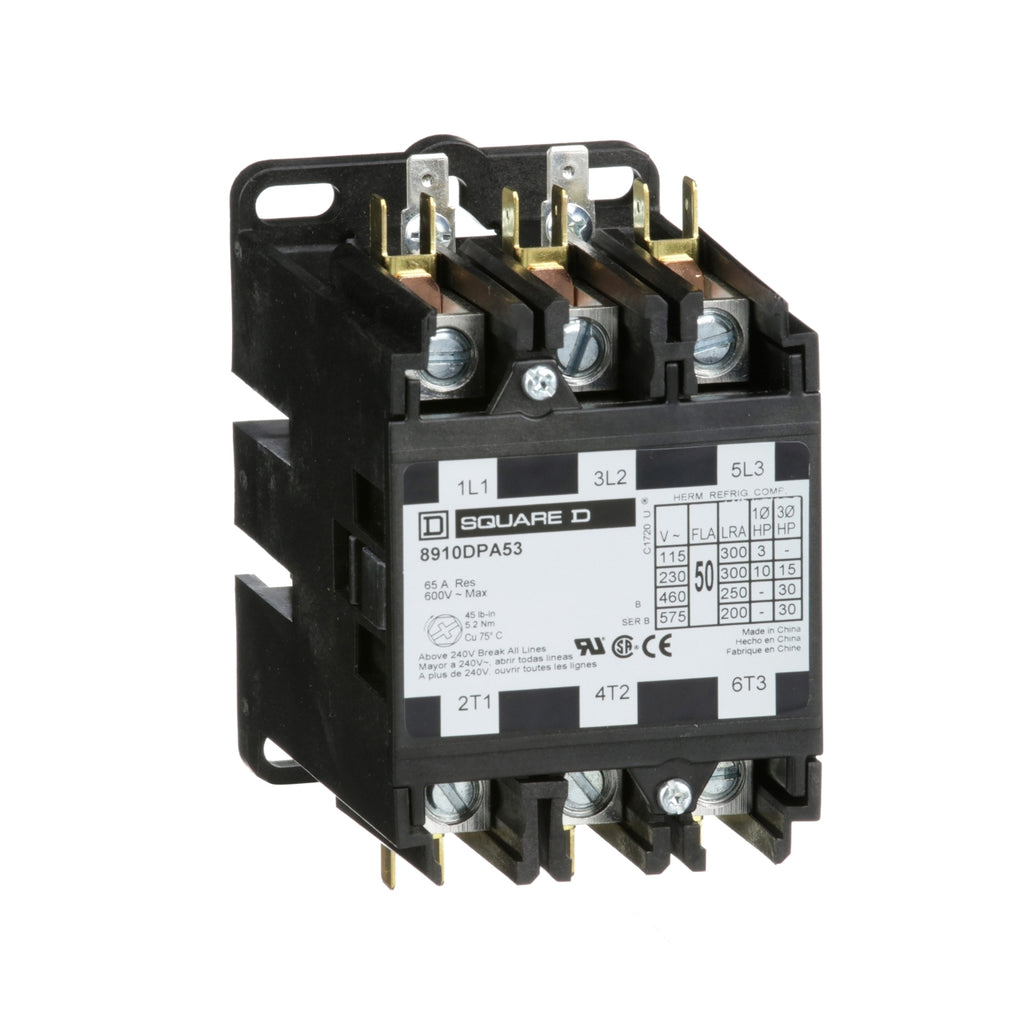

8910DPA53V09 - Schneider Electric - 50 Amp 3 Pole Square D Definite Purpose Contactor
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 50 A |
| Number of Poles | 3P |
| Pole contact composition | 3 NO |
| Range of Product | DPA |
| Maximum Horse Power Rating | 3 hp 115 V AC, 1 phase 10 hp 230 V AC, 1 phase 15 hp 230 V AC, 3 phase 30 hp 460 V AC, 3 phase 30 hp 575 V AC, 3 phase |
|---|---|
| Locked rotor rated current | 300 A 277 V AC 250 A 460 V AC 200 A 575 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 208...240 V AC 60 Hz 220 V AC 50 Hz |
| Phase | 3 phase |
| Electrical Connection | Box lugs Quick connect terminals |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21345 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080732 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.80 in (9.652 cm) |
| Package 1 Width | 2.80 in (7.112 cm) |
| Package 1 Length | 4.50 in (11.430 cm) |
| Package 1 Weight | 24.000 oz (680.388 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 8.20 in (20.828 cm) |
| Package 2 Width | 5.80 in (14.732 cm) |
| Package 2 Length | 9.00 in (22.860 cm) |
| Package 2 Weight | 12.291 lb(US) (5.575 kg) |
