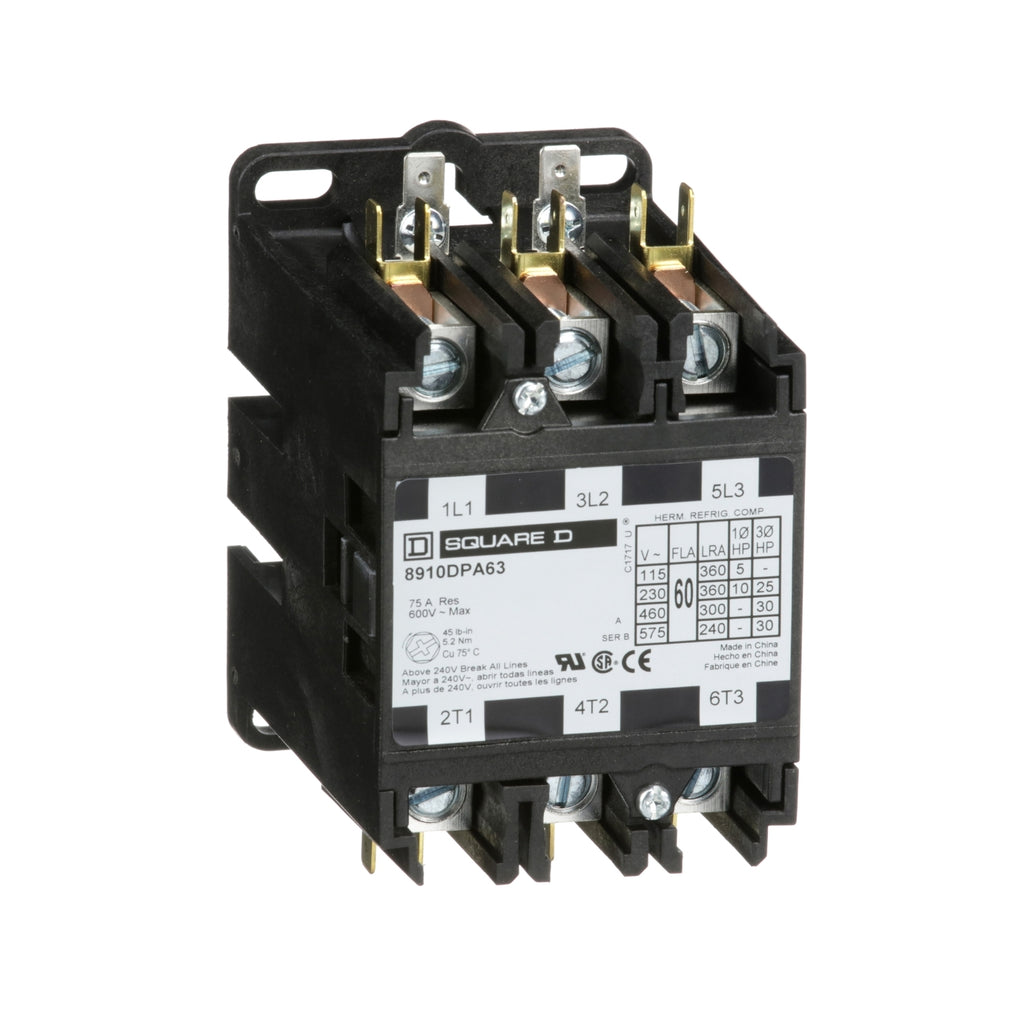

8910DPA63V02 - Schneider Electric - 60 Amp 3 Pole Square D Magnetic Contactor
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 60 A |
| Number of Poles | 3P |
| Pole contact composition | 3 NO |
| Range of Product | DPA |
| Maximum Horse Power Rating | 5 hp 115 V AC, 1 phase 10 hp 230 V AC, 1 phase 30 hp 460 V AC, 3 phase 30 hp 575 V AC, 3 phase 25 hp 230 V AC, 3 phase |
|---|---|
| Locked rotor rated current | 360 A 277 V AC 300 A 460 V AC 240 A 575 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Phase | 3 phase |
| Electrical Connection | Quick connect terminals Box lugs |
| Height | 4.13 in (104.90 mm) 4.1 in (105 mm) |
| Width | 2.56 in (65.02 mm) 2.6 in (65 mm) |
| Depth | 3.67 in (93.22 mm) 3.7 in (93 mm) |
| Net Weight | 1.50 lb(US) (0.68 kg) 1.5 lb(US) (0.7 kg) |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21346 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080817 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.90 in (7.366 cm) |
| Package 1 Width | 4.90 in (12.446 cm) |
| Package 1 Length | 4.10 in (10.414 cm) |
| Package 1 Weight | 24.160 oz (684.924 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 8.10 in (20.574 cm) |
| Package 2 Width | 5.80 in (14.732 cm) |
| Package 2 Length | 9.00 in (22.860 cm) |
| Package 2 Weight | 12.350 lb(US) (5.602 kg) |
PRODUCT DATASHEET
Schneider Electric_Definite-Purpose-Contactors-8910_8910DPA63V02
