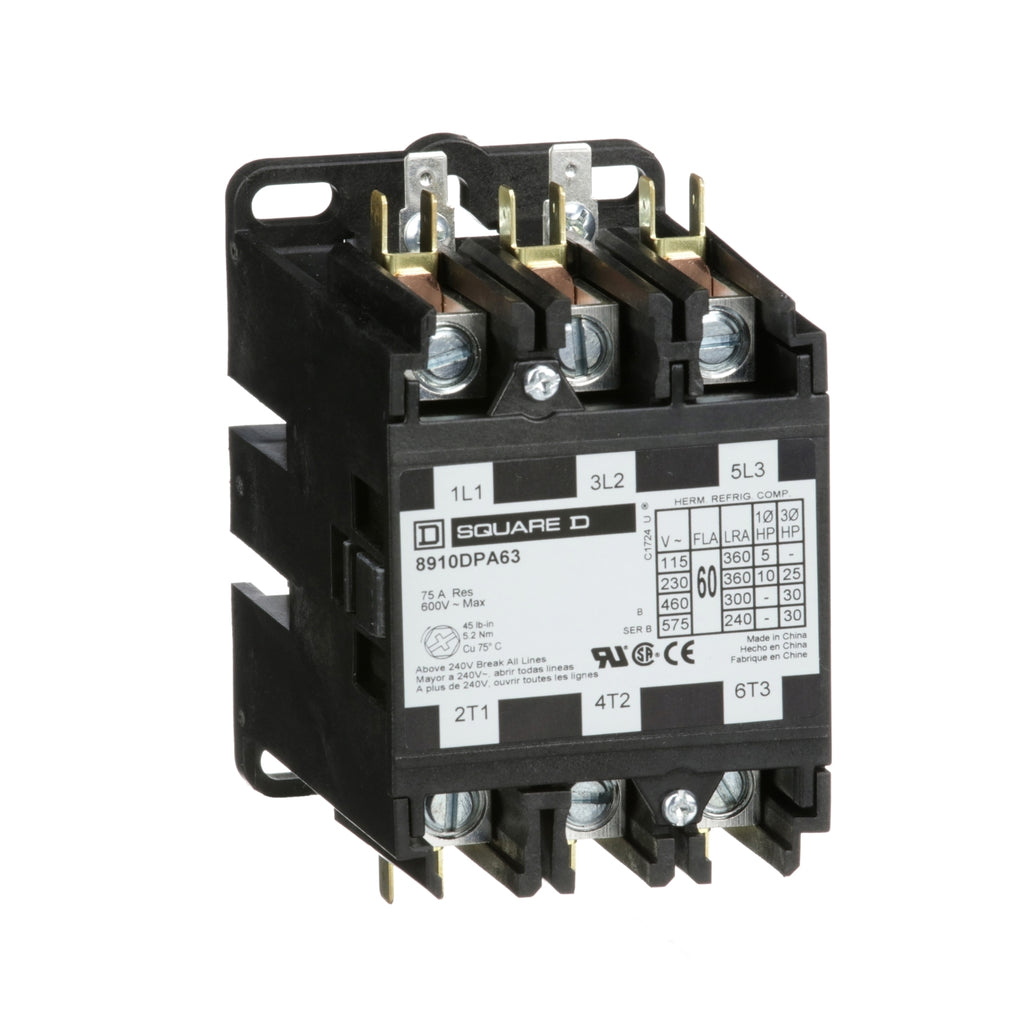

8910DPA63V09 - Schneider Electric - 60 Amp 3 Pole 240 Volt Square D Definite Purpose Contactor
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 60 A |
| Number of Poles | 3P |
| Pole contact composition | 3 NO |
| Range of Product | DPA |
| Maximum Horse Power Rating | 5 hp 115 V AC, 1 phase 10 hp 230 V AC, 1 phase 30 hp 460 V AC, 3 phase 30 hp 575 V AC, 3 phase 25 hp 230 V AC, 3 phase |
|---|---|
| Locked rotor rated current | 360 A 277 V AC 300 A 460 V AC 240 A 575 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 208...240 V AC 60 Hz 220 V AC 50 Hz |
| Phase | 3 phase |
| Electrical Connection | Box lugs Quick connect terminals |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21346 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901080794 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.750 in (9.525 cm) |
| Package 1 Width | 4.600 in (11.684 cm) |
| Package 1 Length | 2.700 in (6.858 cm) |
| Package weight(Lbs) | 24.000 oz (680.388 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 5.900 in (14.986 cm) |
| Package 2 Width | 8.300 in (21.082 cm) |
| Package 2 Length | 9.000 in (22.860 cm) |
| Package 2 Weight | 13.159 lb(US) (5.969 kg) |
