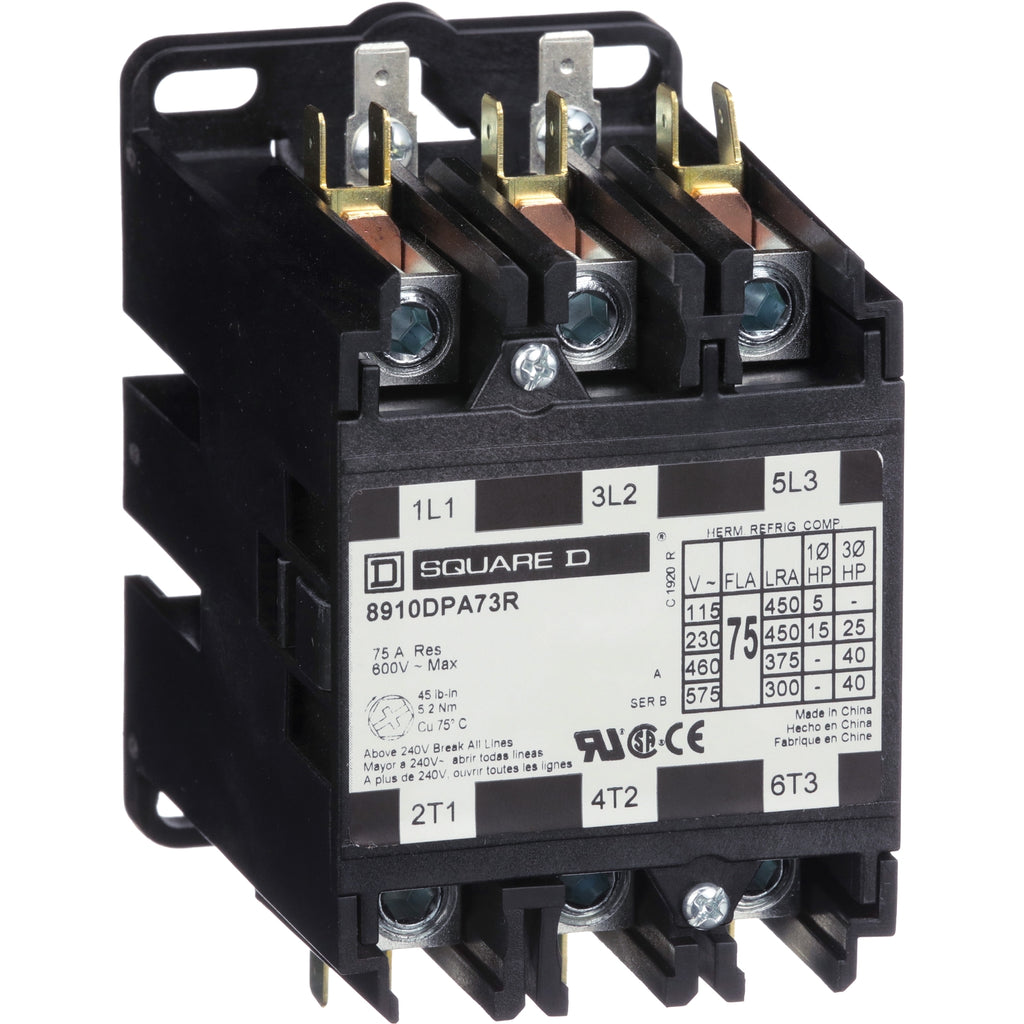

8910DPA73RV02 - Schneider Electric - 75 Amp Square D Contactor
The Schneider Electric Class 8910 Definite Purpose contactors are versatile, compact devices designed for various applications such as heating, air conditioning, refrigeration, data processing, and food service equipment. They come in 1 and 2 pole compact options as well as full-size 2, 3, and 4-pole versions, offering flexibility for different needs. With quick connect terminals, binder head screws, and standard box lugs on larger models, wiring these contactors is easy and efficient. Additionally, they feature an exclusive DIN track mounting option, potentially reducing installation costs. These contactors boast a range of features including a maximum 600Vac rating, current ratings from 20-90A, industry standard mounting, double break contacts, low coil VA, straight-through wiring, and a long mechanical and electrical operations life. Furthermore, they are UL listed and CSA certified, ensuring high safety standards. Product 8910DPA73RV02, is a 75A, 3-pole open contactor with a 40 HP rating at 575 VAC, 3 phase, and a 110/120 VAC 50/60 Hz coil.
GENERAL SPECIFICATIONS
| Product or Component Type | Definite Purpose Contactor |
|---|---|
| Line Rated Current | 75 A |
| Number of Poles | 3P |
| Pole contact composition | 3 NO |
| Range of Product | DPA |
| Maximum Horse Power Rating | 5 hp 115 V AC, 1 phase 15 hp 230 V AC, 1 phase 25 hp 230 V AC, 3 phase 40 hp 460 V AC, 3 phase 40 hp 575 V AC, 3 phase |
|---|---|
| Locked rotor rated current | 450 A 277 V AC 375 A 460 V AC 300 A 575 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uc] control circuit voltage | 120 V AC 60 Hz 110 V AC 50 Hz |
| Phase | 3 phase |
| Electrical Connection | Quick connect terminals Box lugs |
| Height | 3.7 in (92.8 mm) |
| Width | 4.10 in (104.03 mm) |
| Depth | 2.6 in (65 mm) |
| Product Certifications | UL Recognized CSA |
|---|
| Category | US1CP1B21347 |
|---|---|
| Discount Schedule | CP1B |
| GTIN | 785901768333 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.06 in (10.3 cm) |
| Package 1 Width | 3.3 in (8.5 cm) |
| Package 1 Length | 3.7 in (9.3 cm) |
| Package 1 Weight | 24.0000000000 oz (680.4 g) |
