9001BG201 - Schneider Electric - Square D Pushbutton Control Station 1 NO Contact NEMA 4X Enclosure

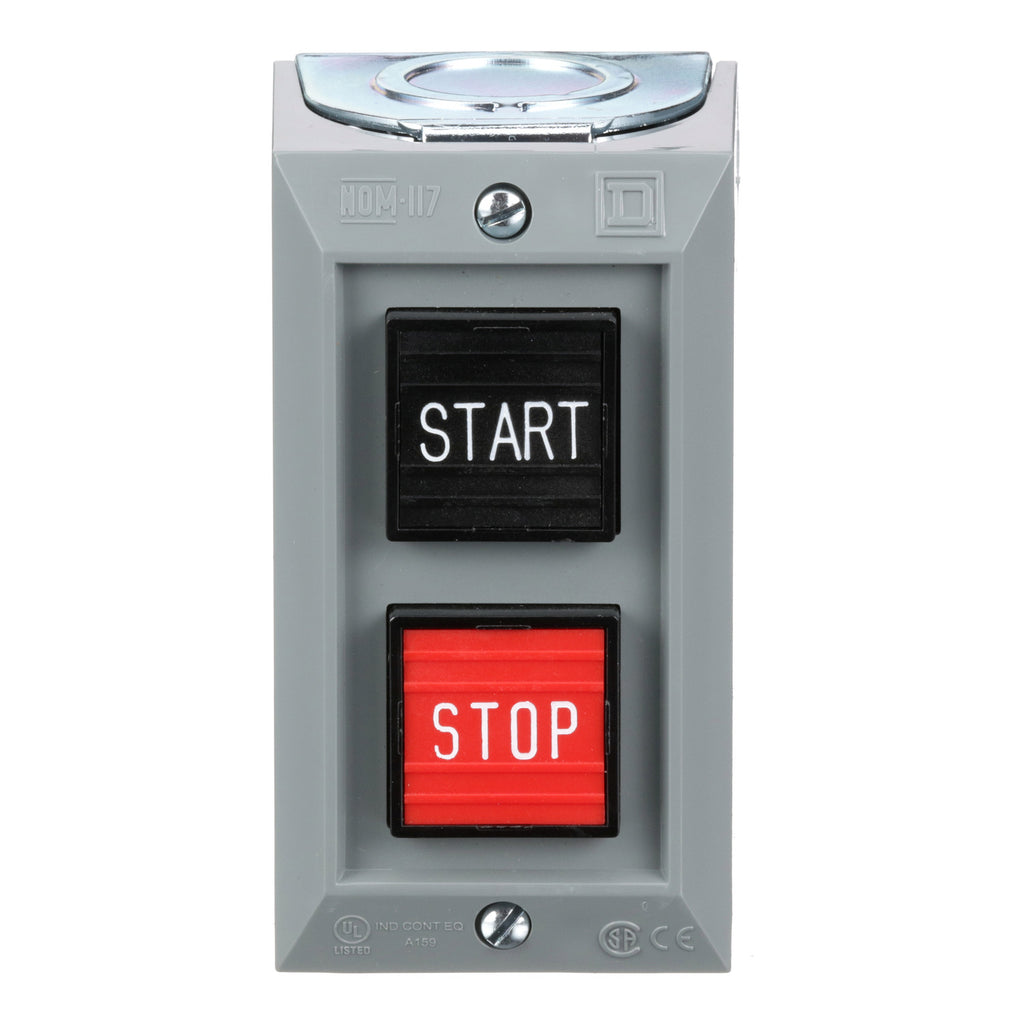

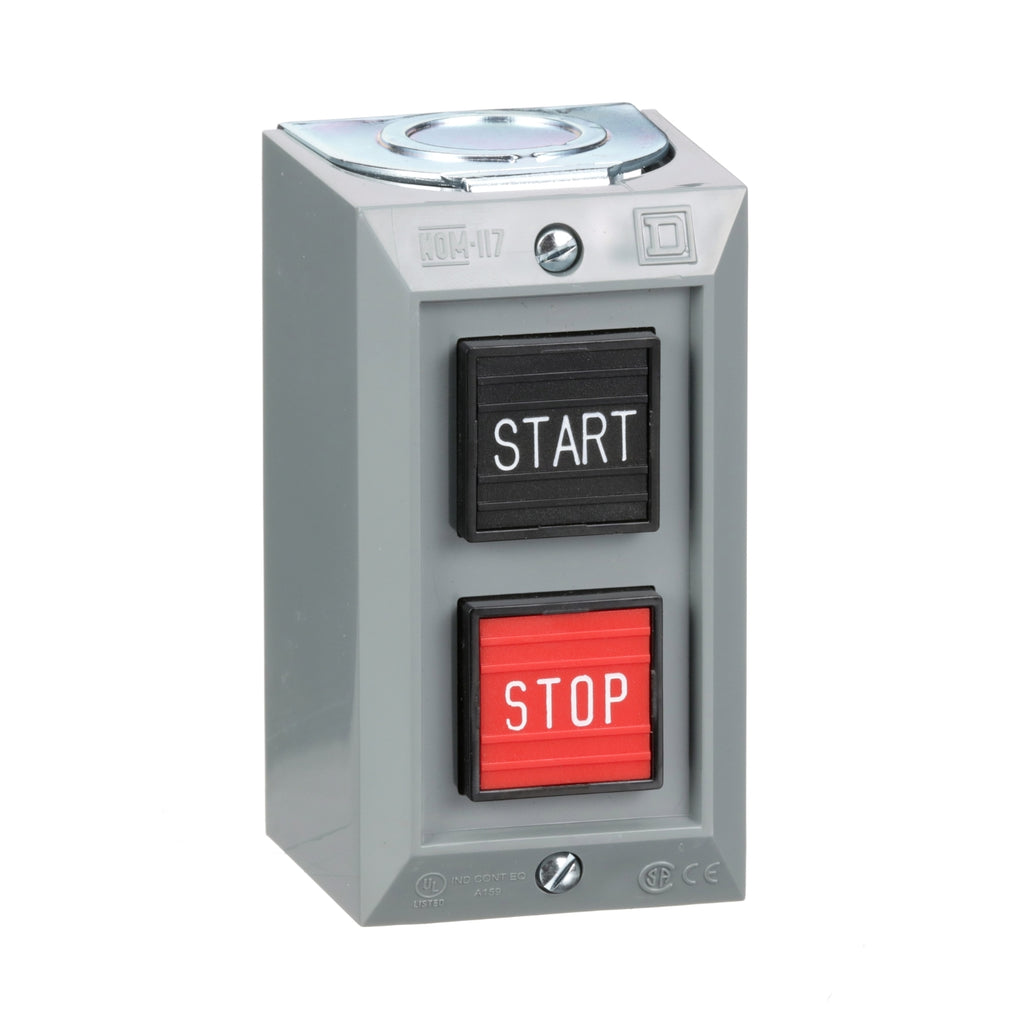

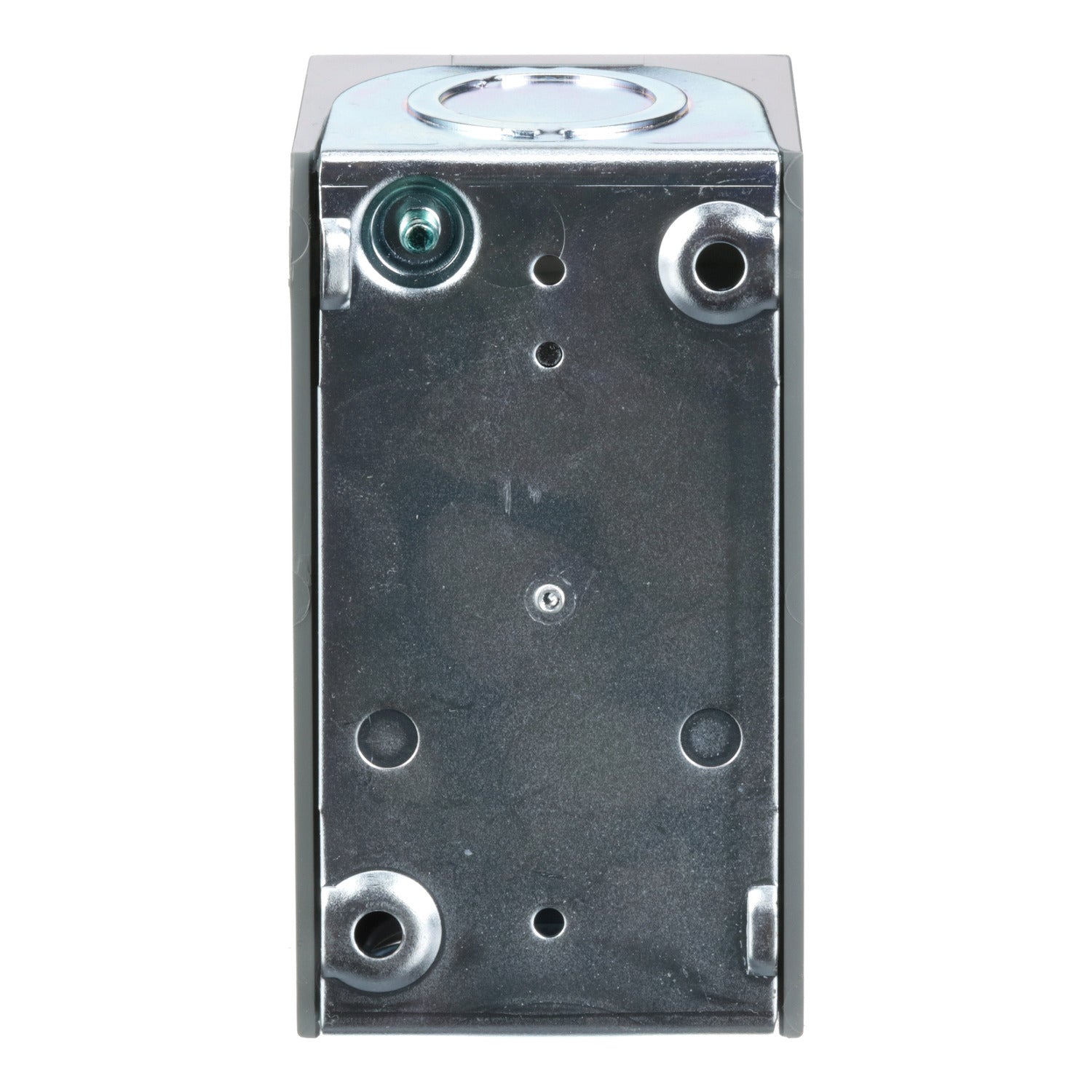

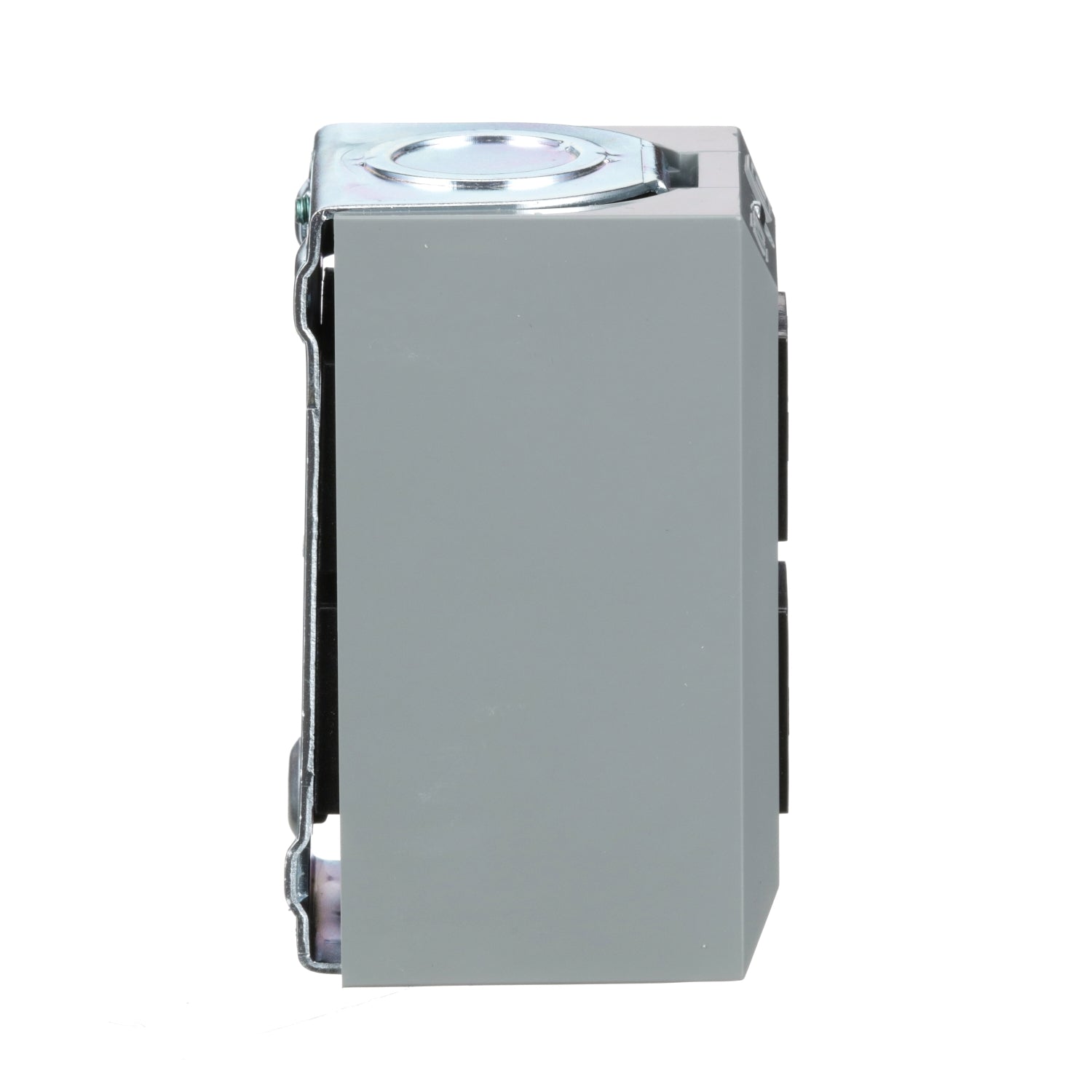

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. This control station is UL Listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001B |
| Product or Component Type |
Complete control station |
| Device short name |
9001BG |
Complementary
| Control station composition |
2 push-buttons START-STOP |
| Contacts type and composition |
1 NO + 1 NC |
| Number of command positions |
2 |
| Number of indicator lights |
0 |
| Connections - terminals |
Screw clamp terminal |
| Number of push buttons |
2 |
| [Ie] rated operational current |
5 A 600 V |
| Number of selector switches |
0 |
| Number of key switches |
0 |
| Device mounting |
Surface |
| Type of Installation |
Indoor |
| Number of mushroom-shaped push-buttons |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
Environment
| NEMA degree of protection |
NEMA 1 |
| Product Certifications |
UL listed file E42259 CCN NKCR
CE
CSA LR25490 class 3211 03 |
| Environmental characteristic |
Standard environment |
| NEMA Degree of Protection |
NEMA 13 |
Ordering and shipping details
| Category |
US10CS121421 |
| Discount Schedule |
0CS1 |
| GTIN |
785901390176 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
10.160 in (25.806 cm) |
| Package 1 Width |
4.00 in (10.16 cm) |
| Package 1 Length |
25.806 in (65.548 cm) |
| Package weight(Lbs) |
9.600 oz (272.155 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
1440 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
40.0 in (101.6 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
863.999 lb(US) (391.903 kg) |
| Unit Type of Package 3 |
CAR |
| Number of Units in Package 3 |
24 |
| Package 3 Height |
6.00 in (15.24 cm) |
| Package 3 Width |
12.50 in (31.75 cm) |
| Package 3 Length |
16.00 in (40.64 cm) |
| Package 3 Weight |
14.401 lb(US) (6.532 kg) |
PRODUCT DATASHEET
9001BG201_Product Datasheet
