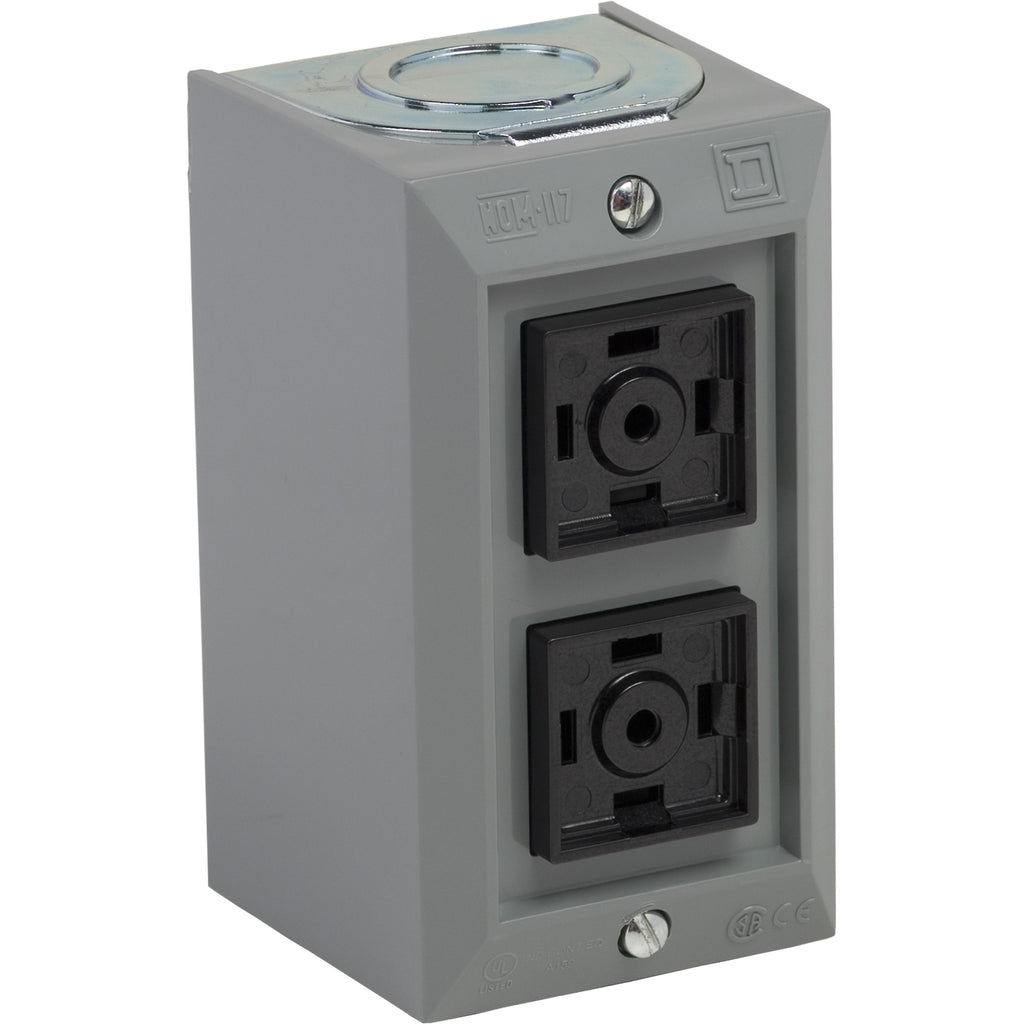

9001BG214 - Schneider Electric - Square D Pushbutton Control Station 1 NO Contact NEMA 4X Enclosure
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. Each push button has a normally open and a normally closed contact. Each push button is supplied without a legend insert. The required legend insert must be purchased separately. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified. "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001B |
| Product or Component Type |
Complete control station |
| Device short name |
9001BG |
Complementary
| AC control voltage 50 HZ |
125…600 V |
| AC control voltage 60 HZ |
125…600 V |
| DC control voltage |
125…600 V |
| Control station composition |
2 push-buttons |
| Contacts type and composition |
2 NO + 2 NC |
| Number of command positions |
2 |
| Number of indicator lights |
0 |
| Connections - terminals |
Screw clamp terminal |
| Number of push buttons |
2 |
| [Ie] rated operational current |
5 A 600 V |
| Number of selector switches |
0 |
| Number of key switches |
0 |
| Device mounting |
Surface |
| Type of Installation |
Indoor |
| Number of mushroom-shaped push-buttons |
0 |
| Emergency Power Off (EPO) |
No |
| Number of contacts as normally closed contact |
2 |
| Number of contacts as normally open contact |
2 |
| Number of contacts as change-over contact |
0 |
| Housing material |
Metal |
| Housing Colour |
Grey |
| colour of cover |
Grey |
Environment
| NEMA degree of protection |
NEMA 1 |
| Product Certifications |
CE
UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03 |
| Environmental characteristic |
Standard environment |
| NEMA Degree of Protection |
NEMA 13 |
Ordering and shipping details
| Category |
US10CS121421 |
| Discount Schedule |
0CS1 |
| GTIN |
785901390251 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
10.160 in (25.806 cm) |
| Package 1 Width |
4.00 in (10.16 cm) |
| Package 1 Length |
25.806 in (65.548 cm) |
| Package weight(Lbs) |
10.080 oz (285.763 g) |
PRODUCT DATASHEET
9001BG214_Product Datasheet
