Description

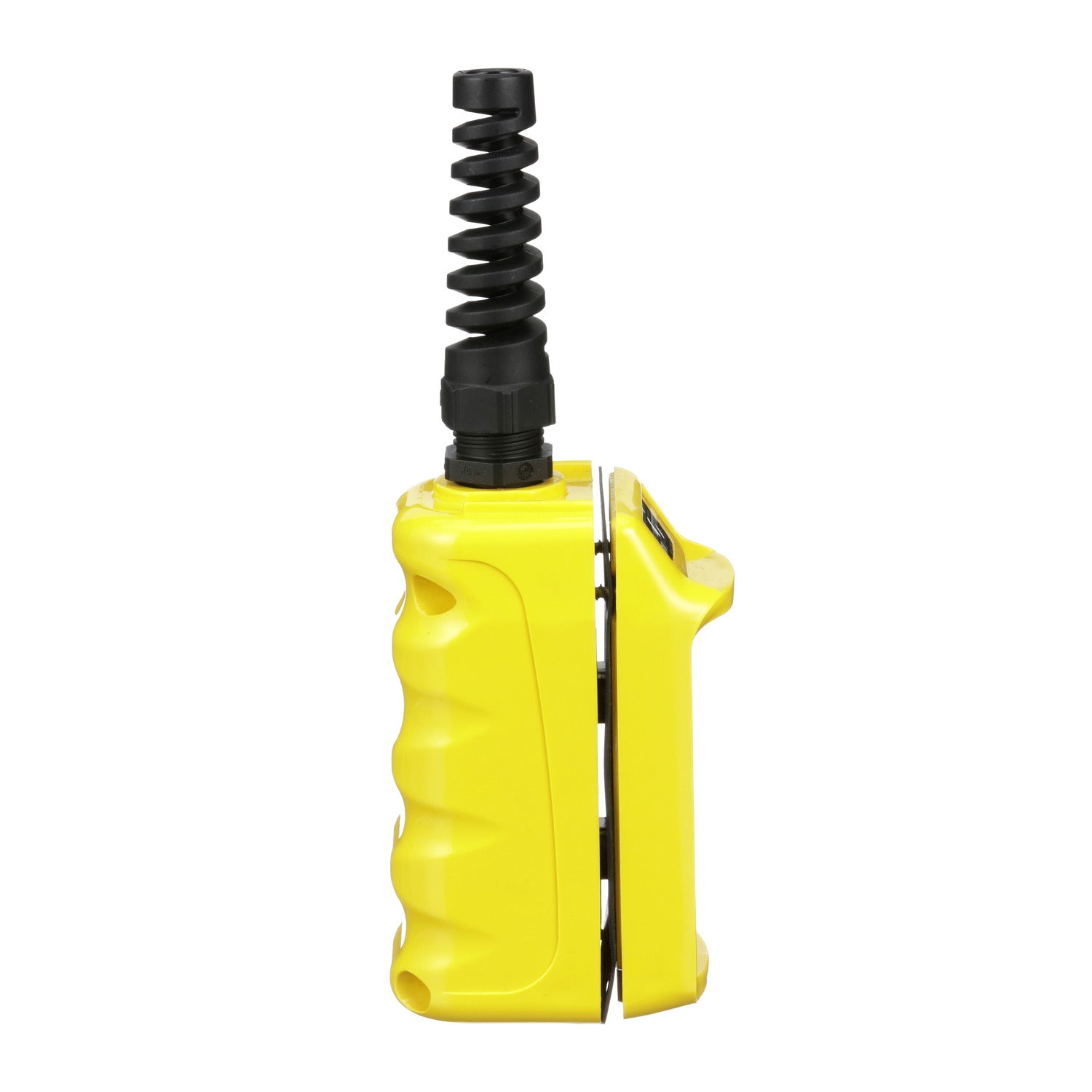

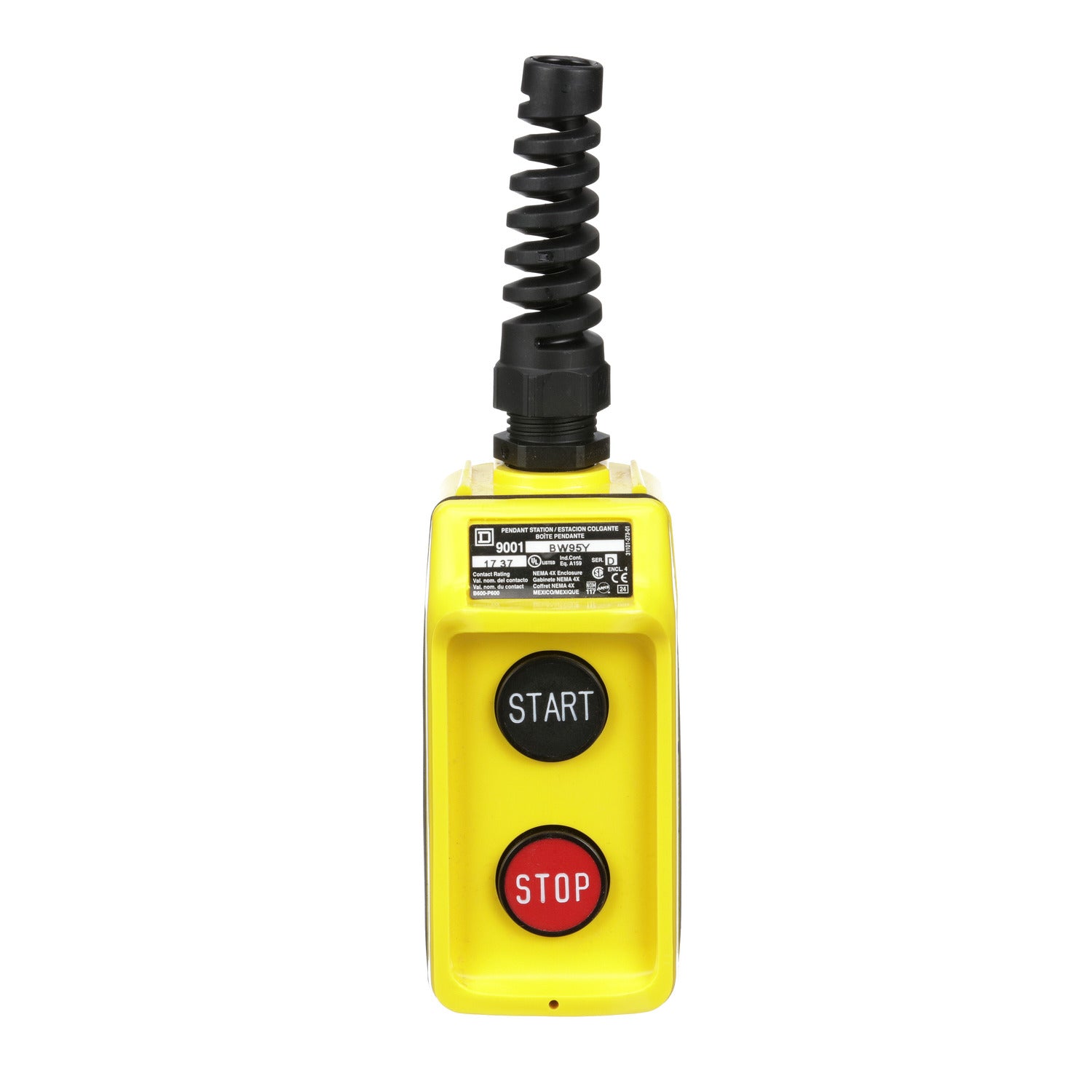

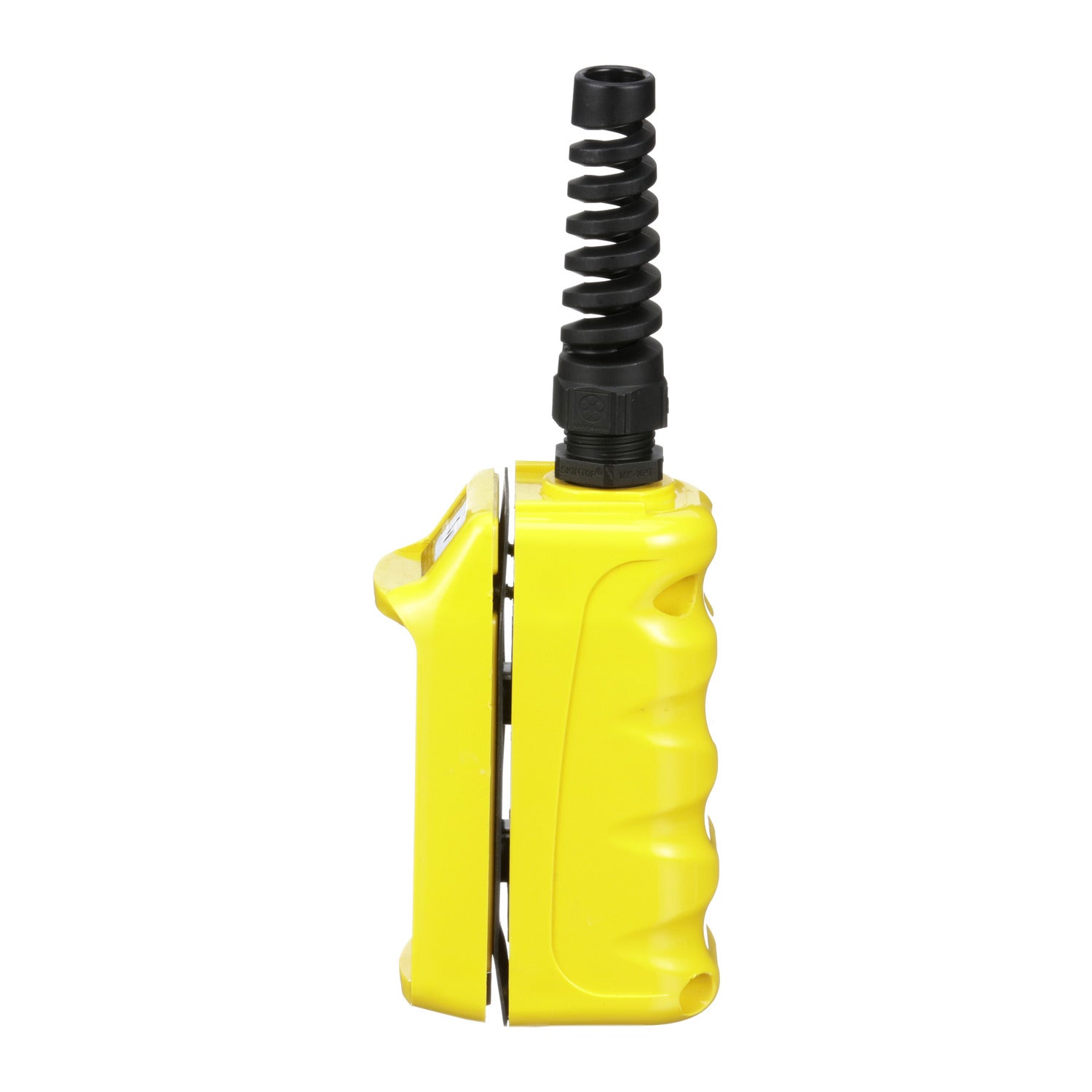

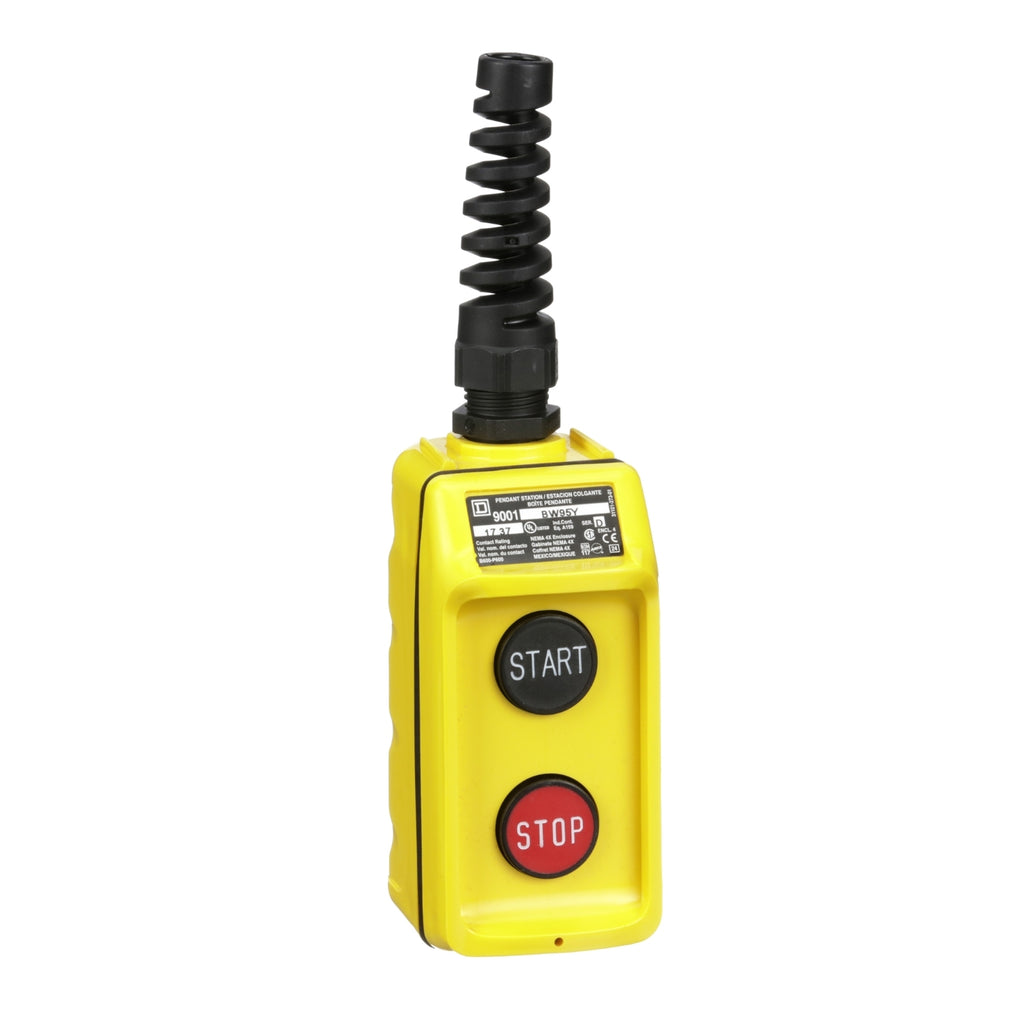

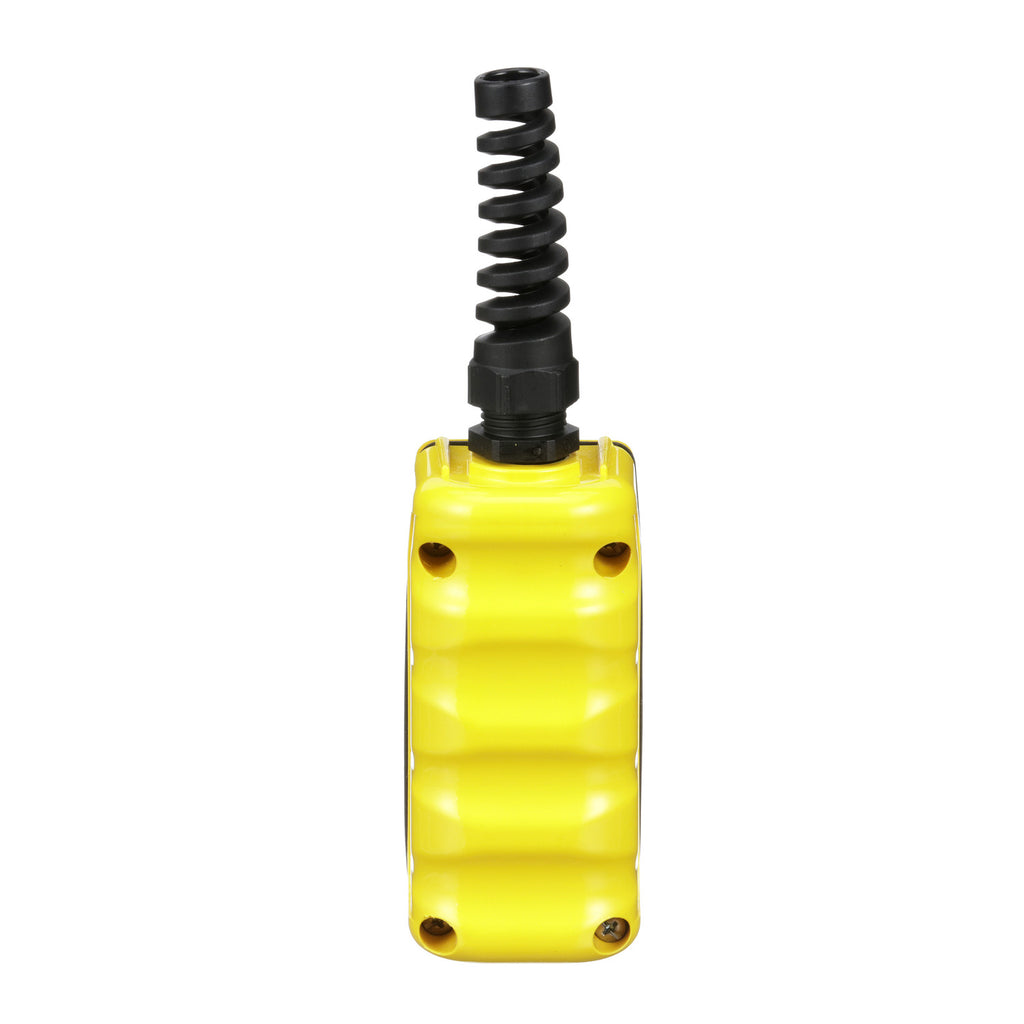

9001BW95Y - Schneider Electric - Square D Pushbutton Control Station 1 NO Contact NEMA 4X Enclosure
This Harmony 9001B range is a complete control station with two push buttons pros an ergonomic interface for your machines. The control station is composed of two push-buttons with NO contact - START, NC contact - STOP, and it is connected to control circuits with classic screw-clamp connections Classic screw clamp connections are used to connected to control circuits. It is a type B control station with a rated voltage of 600V AC and rated operating current of 5A. This control station is made of die-cast zinc. It complies with the RoHS directive related to the management of electronic and electrical waste.
GENERAL SPECIFICATIONS
| Category | US10CS121422 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901663690 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.32 in (51.613 cm) |
| Package 1 Width | 8.00 in (20.32 cm) |
| Package 1 Length | 51.61 in (131.097 cm) |
| Package 1 Weight | 11.520 oz (326.587 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 13.00 in (33.02 cm) |
| Package 2 Width | 13.00 in (33.02 cm) |
| Package 2 Length | 16.50 in (41.91 cm) |
| Package 2 Weight | 10.501 lb(US) (4.763 kg) |
PRODUCT DATASHEET
