9001G6 - Schneider Electric - Square D Pilot Light Lens

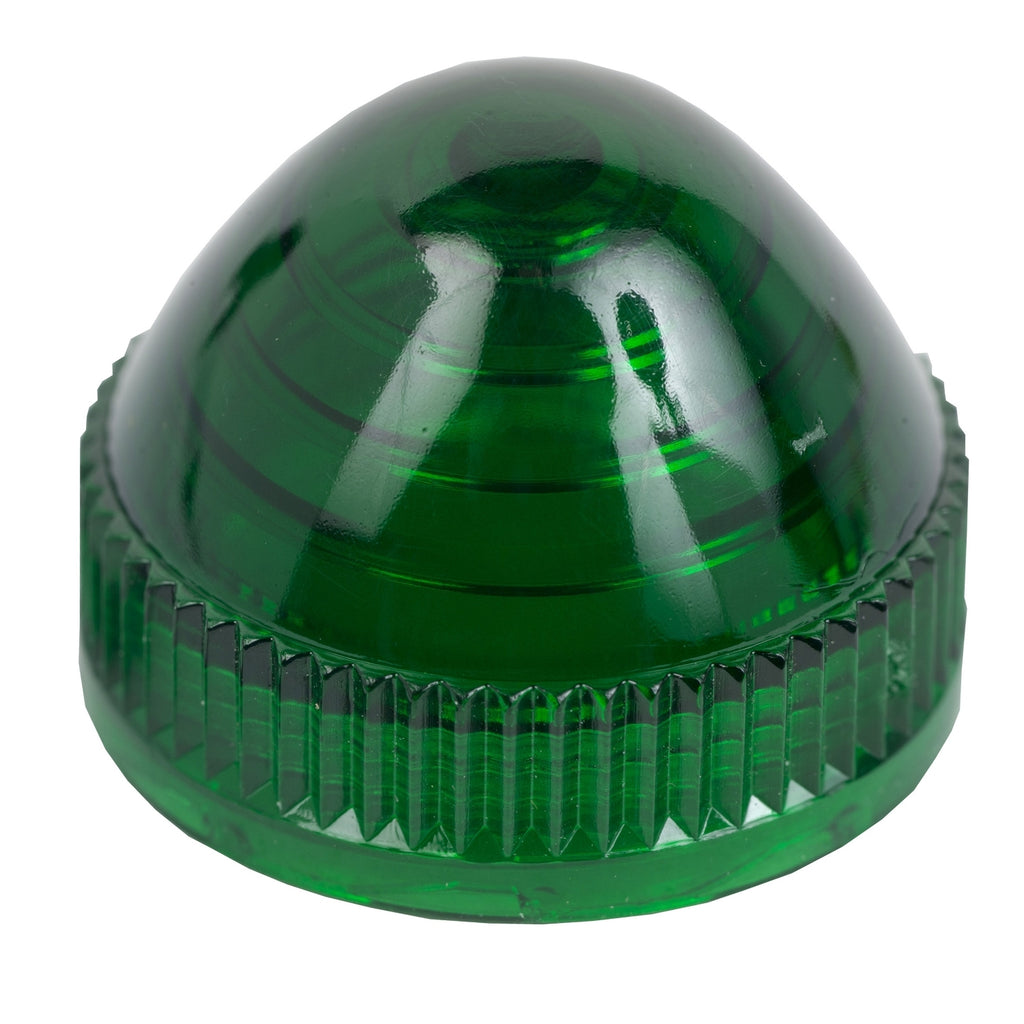

The Schneider Electric 9001G6 is a 30mm domed glass lens, green in color, designed for use as a spare part with Harmony 9001K pilot lights. This accessory provides clear illumination for pilot light functions in industrial control panels.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Lens |
| Accessory / Separate Part Type |
Lens |
| Accessory / separate part category |
Spare parts |
| Accessory / separate part destination |
Pilot light |
| Quantity per Set |
Set of 1 |
Complementary
| Lens type |
Domed |
| Mounting diameter |
1.2 in (30 mm) |
| Cap/operator or lens colour |
Green |
| Net Weight |
0.011 lb(US) (0.005 kg) |
Ordering and shipping details
| Category |
US10CS121433 |
| Discount Schedule |
0CS1 |
| GTIN |
785901857532 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.71 in (1.8 cm) |
| Package 1 Width |
4.02 in (10.2 cm) |
| Package 1 Length |
5.98 in (15.2 cm) |
| Package 1 Weight |
0.3 oz (9.1 g) |
PRODUCT DATASHEET
9001G6_Product Datasheet
