Description

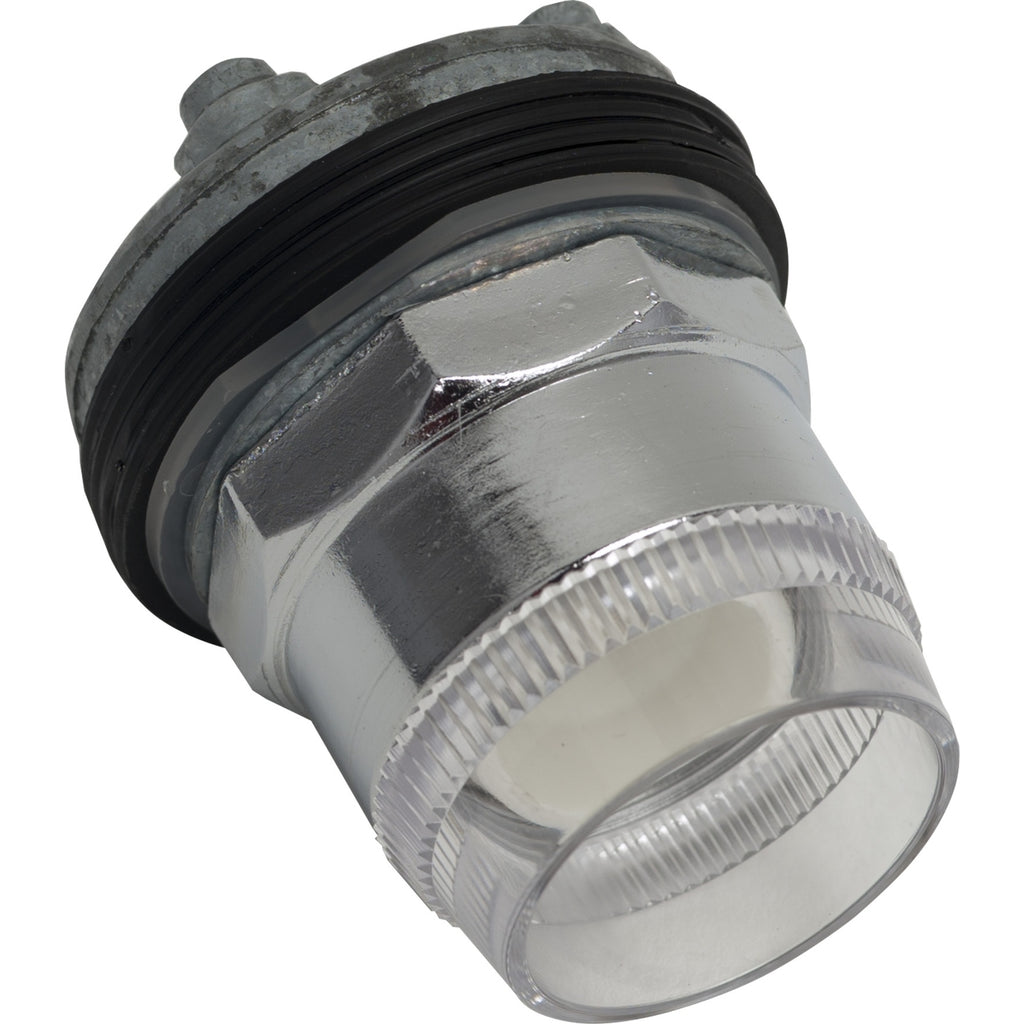

9001K1L - Schneider Electric - Square D Automation Switch
This illuminated push-button with full guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for illuminated push-button |
| Device short name | K |
| Operator additional information | Plastic guard |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Light source | without |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Without supply |
| Contacts type and composition | Without contact block |
| [Ie] rated operational current | 10 A, AC-15 10 A, DC-13 |
| Device presentation | Basic element |
| Cap/operator or lens colour | Without cap |
| Light block supply | Without supply |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Product Certifications | NEMA UL listed file E42259 CCN NKCR CSA LR 25490 class 3211 03 CE |
|---|---|
| NEMA degree of protection | NEMA 3R/6/13 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901909224 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.90 in (4.826 cm) |
| Package 1 Width | 2.20 in (5.588 cm) |
| Package 1 Length | 3.70 in (9.398 cm) |
| Package 1 Weight | 3.680 oz (104.326 g) |
