Description
9001K1L1 - Schneider Electric - Square D Class 20 Melting Alloy Thermal Unit

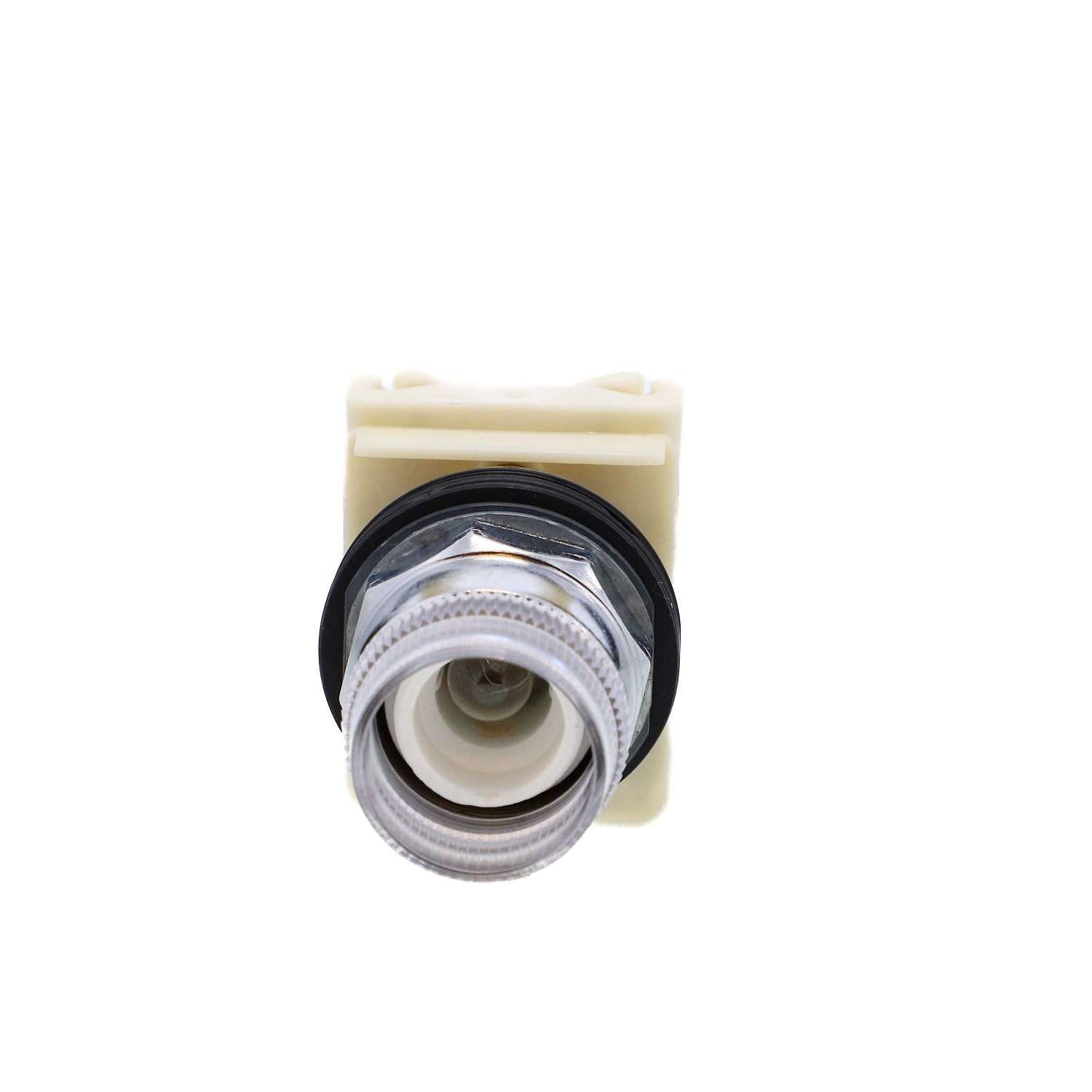

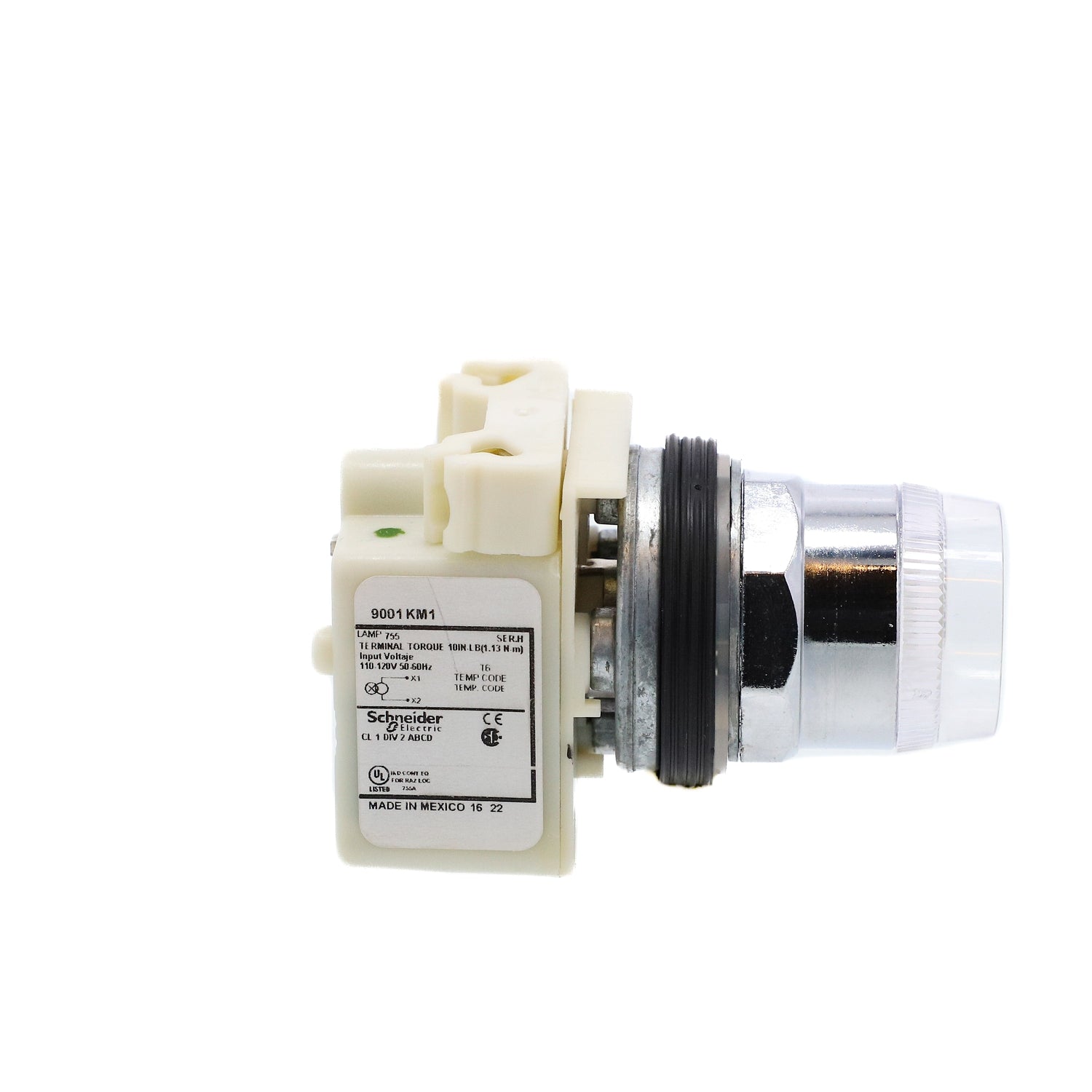

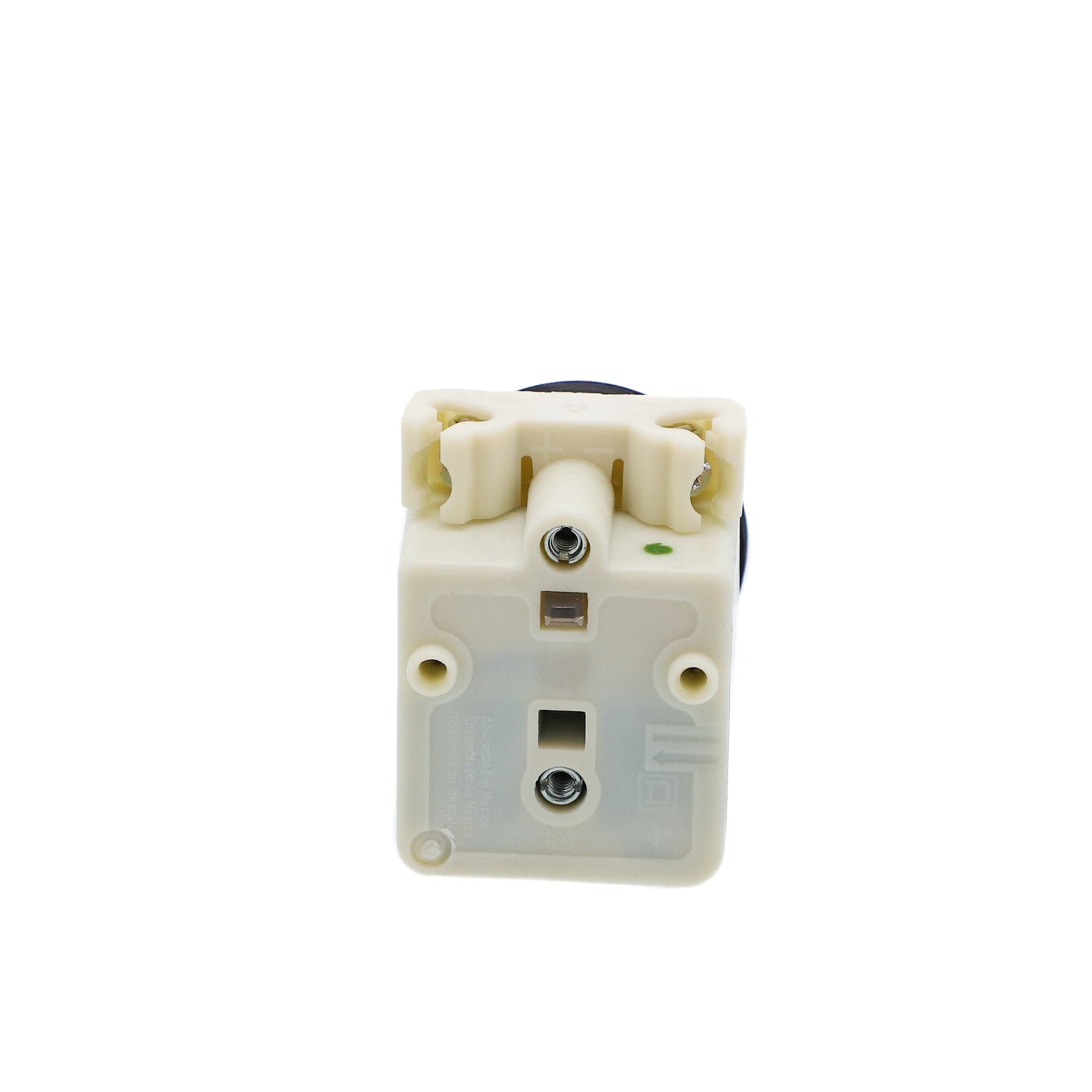

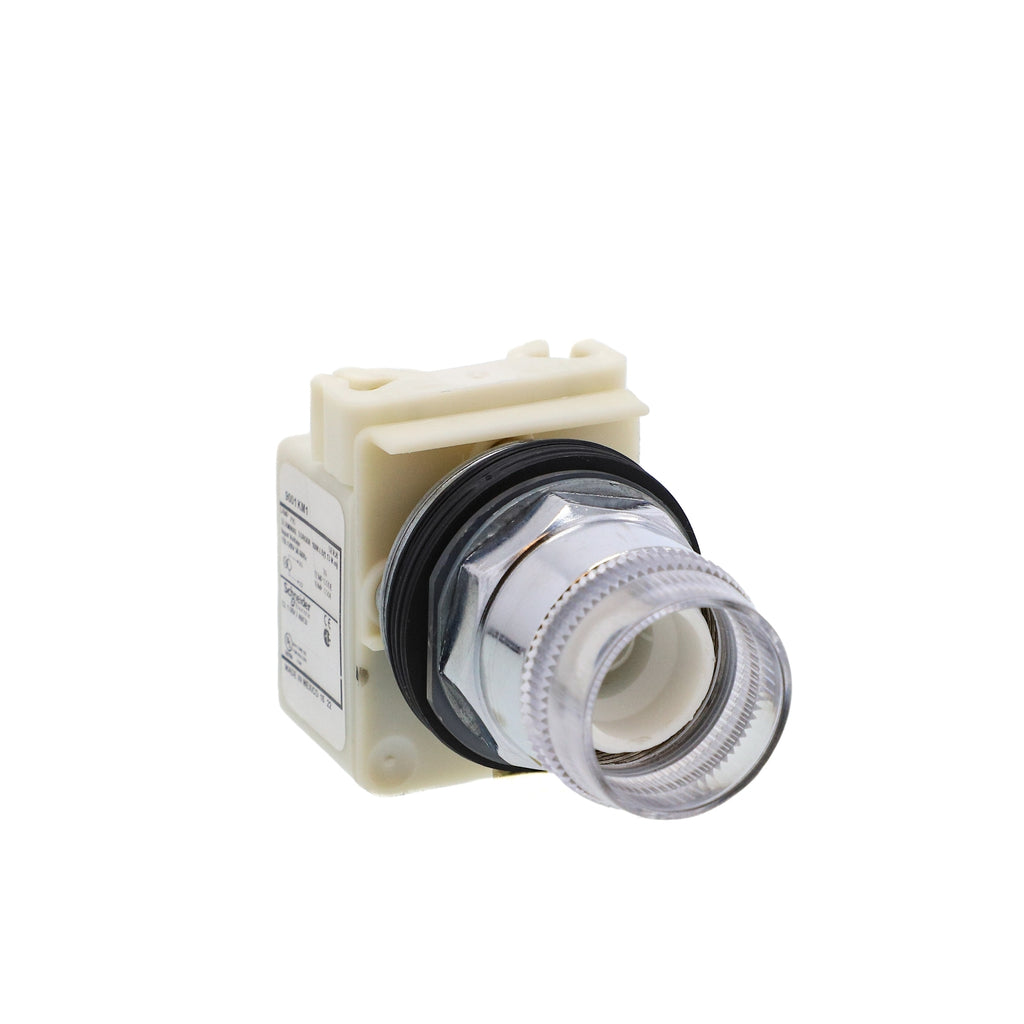

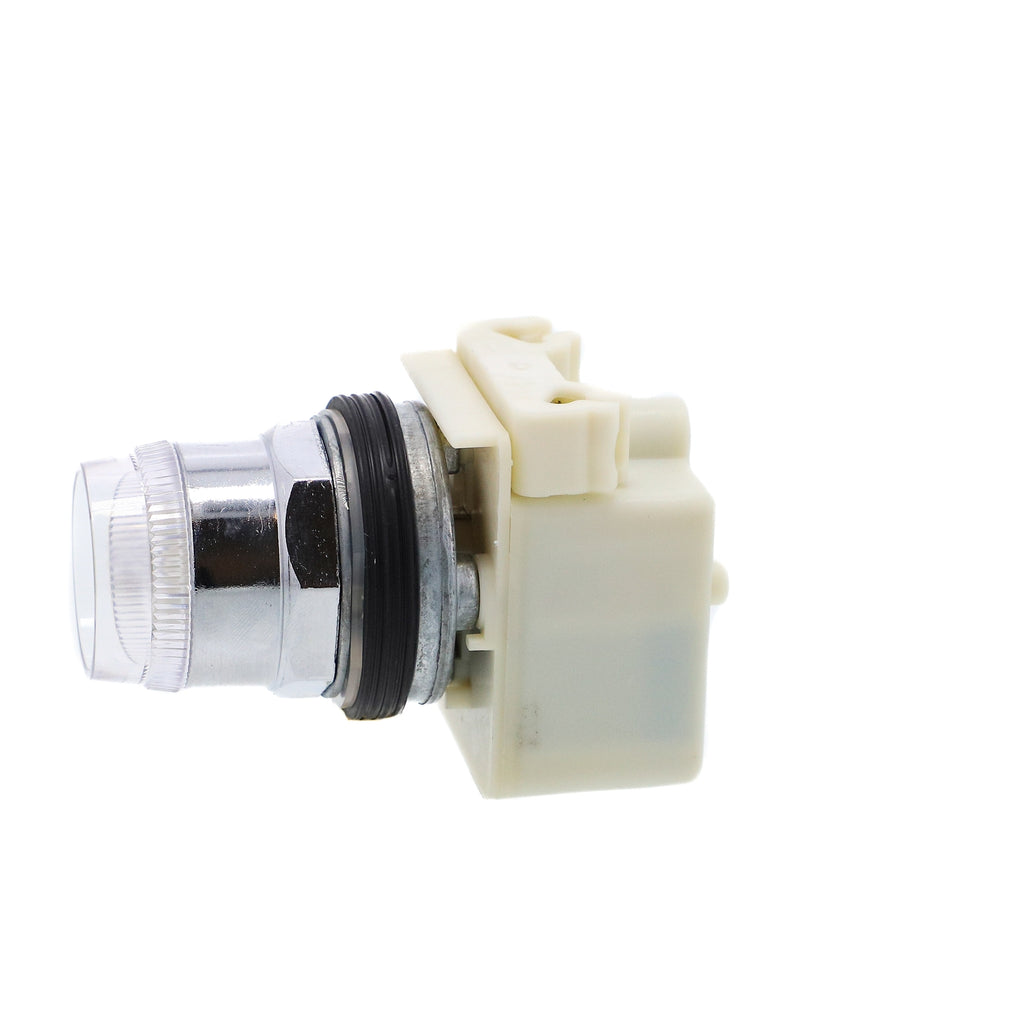

This illuminated push-button with transformer and full plastic guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for illuminated push-button |
| Device short name | K |
| Operator additional information | Plastic guard |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Light source | Incandescent bulb |
| Bulb base | BA 9s |
| Light block supply | Via transformer |
| Contacts type and composition | Without contact block |
| [Ie] rated operational current | 10 A, AC-15 10 A, DC-13 |
| Device presentation | Basic element |
| Cap/operator or lens colour | Without cap |
| [Us] Rated supply voltage | 110...120 V |
| Light block supply | Via integral transformer |
| Operator profile | Flush |
| Type of operator | Spring return |
| Supply frequency | 50...60 Hz |
| Size | 30 mm |
| Product Certifications | CSA LR 25490 class 3211 03 NEMA UL listed file E42259 CCN NKCR CE |
|---|---|
| NEMA degree of protection | NEMA 3R/6/13 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901005605 |
| Returnability | NO |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.80 in (4.572 cm) |
| Package 1 Width | 2.10 in (5.334 cm) |
| Package 1 Length | 3.60 in (9.144 cm) |
| Package 1 Weight | 8.320 oz (235.868 g) |
