9001K1L1G - Schneider Electric - Square D Motor Control Part And Accessory

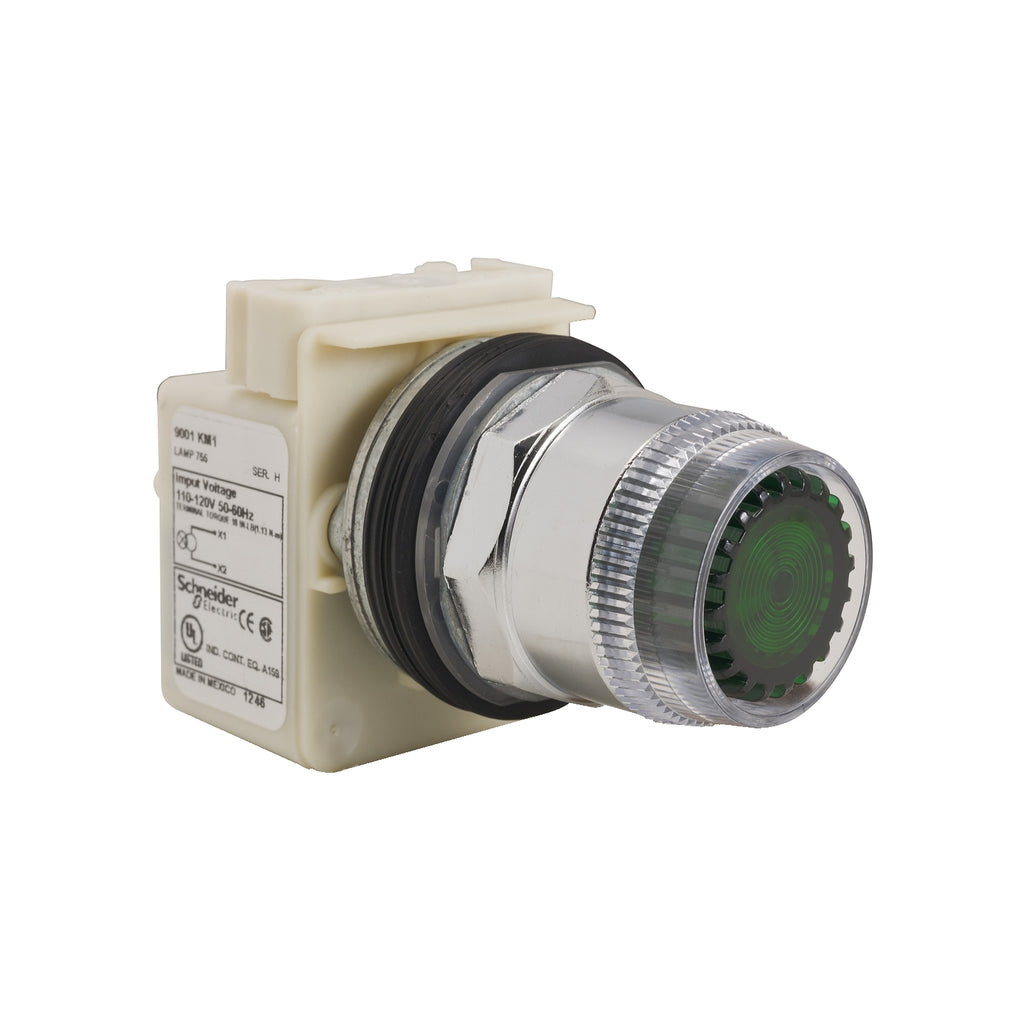

This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for illuminated push-button |
| Device short name |
9001K |
| Operator profile |
Green flush |
| Operator additional information |
Plastic guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Green |
| [Us] rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Operator profile |
Flush |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901350422 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
2.000 in (5.080 cm) |
| Package 1 Width |
2.300 in (5.842 cm) |
| Package 1 Length |
3.800 in (9.652 cm) |
| Package weight(Lbs) |
8.466 oz (240.000 g) |
| Unit Type of Package 2 |
S01 |
| Number of Units in Package 2 |
16 |
| Package 2 Height |
5.9 in (15 cm) |
| Package 2 Width |
5.9 in (15 cm) |
| Package 2 Length |
15.7 in (40 cm) |
| Package 2 Weight |
8.761 lb(US) (3.974 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
512 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
31.496 in (80.000 cm) |
| Package 3 Length |
23.622 in (60.000 cm) |
| Package 3 Weight |
298.023 lb(US) (135.181 kg) |
PRODUCT DATASHEET
9001K1L1G_Product Datasheet
