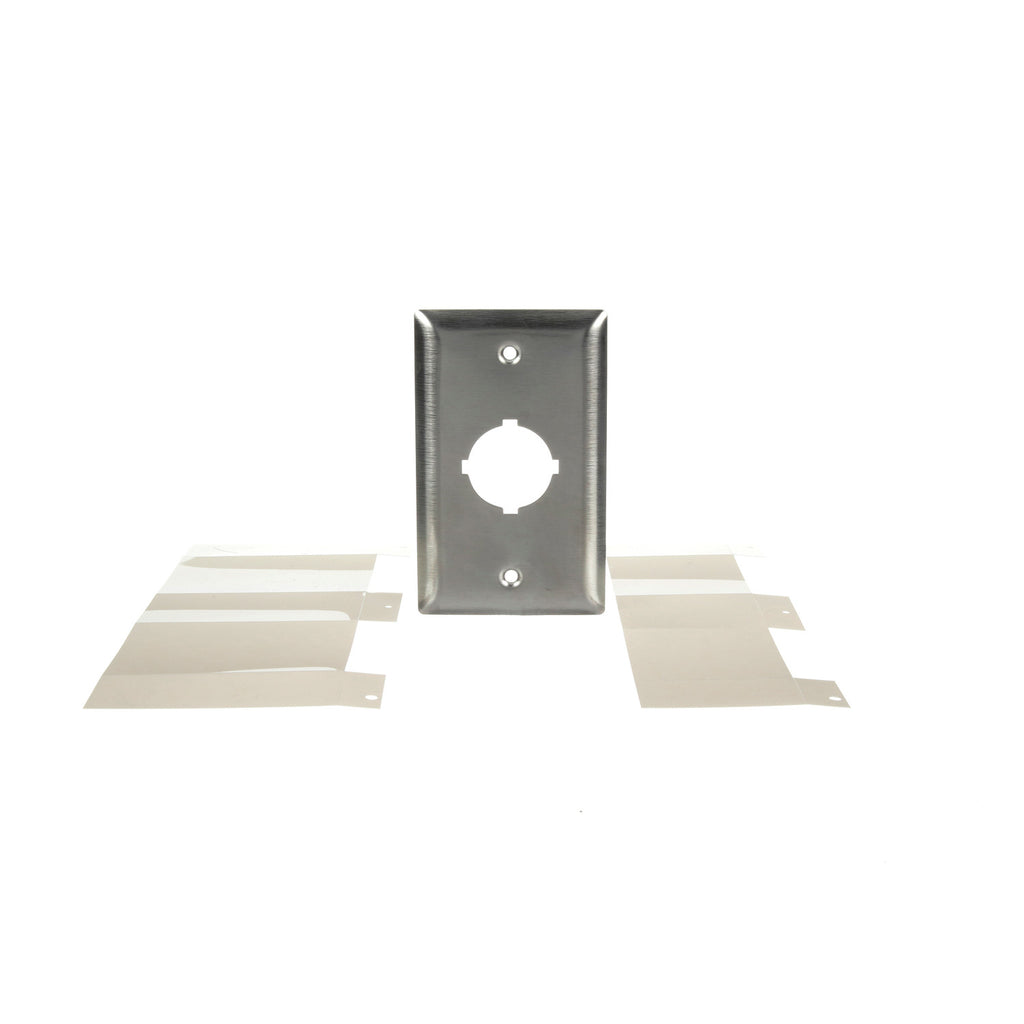

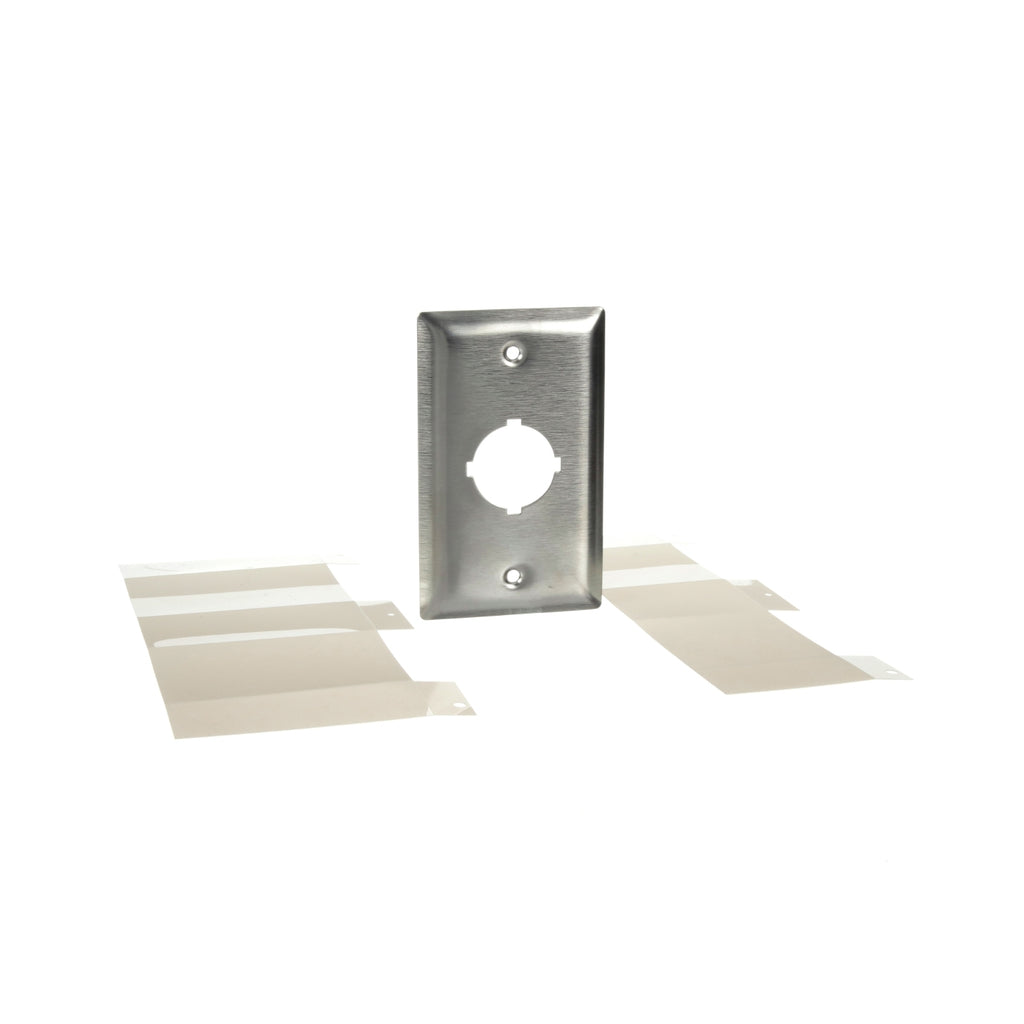

9001K25 - Schneider Electric - Square D 30mm Push Button Type K Flush Plate 1 Hole NEMA 1
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Drilled front plate |
| Accessory / Separate Part Type |
Push-button |
| Accessory / separate part category |
Enclosure accessory |
| Product destination |
indoor enclosure |
| Accessory / separate part destination |
Flush mounted push-button |
Complementary
| Product Weight |
0.33 lb(US) (0.15 kg) |
| Material Mounting Plate |
Stainless Steel |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901875734 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
3.500 in (8.890 cm) |
| Package 1 Width |
4.500 in (11.430 cm) |
| Package 1 Length |
6.400 in (16.256 cm) |
| Package weight(Lbs) |
2.880 oz (81.647 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
13.000 in (33.020 cm) |
| Package 2 Width |
13.000 in (33.020 cm) |
| Package 2 Length |
16.500 in (41.910 cm) |
| Package 2 Weight |
5.840 lb(US) (2.649 kg) |
