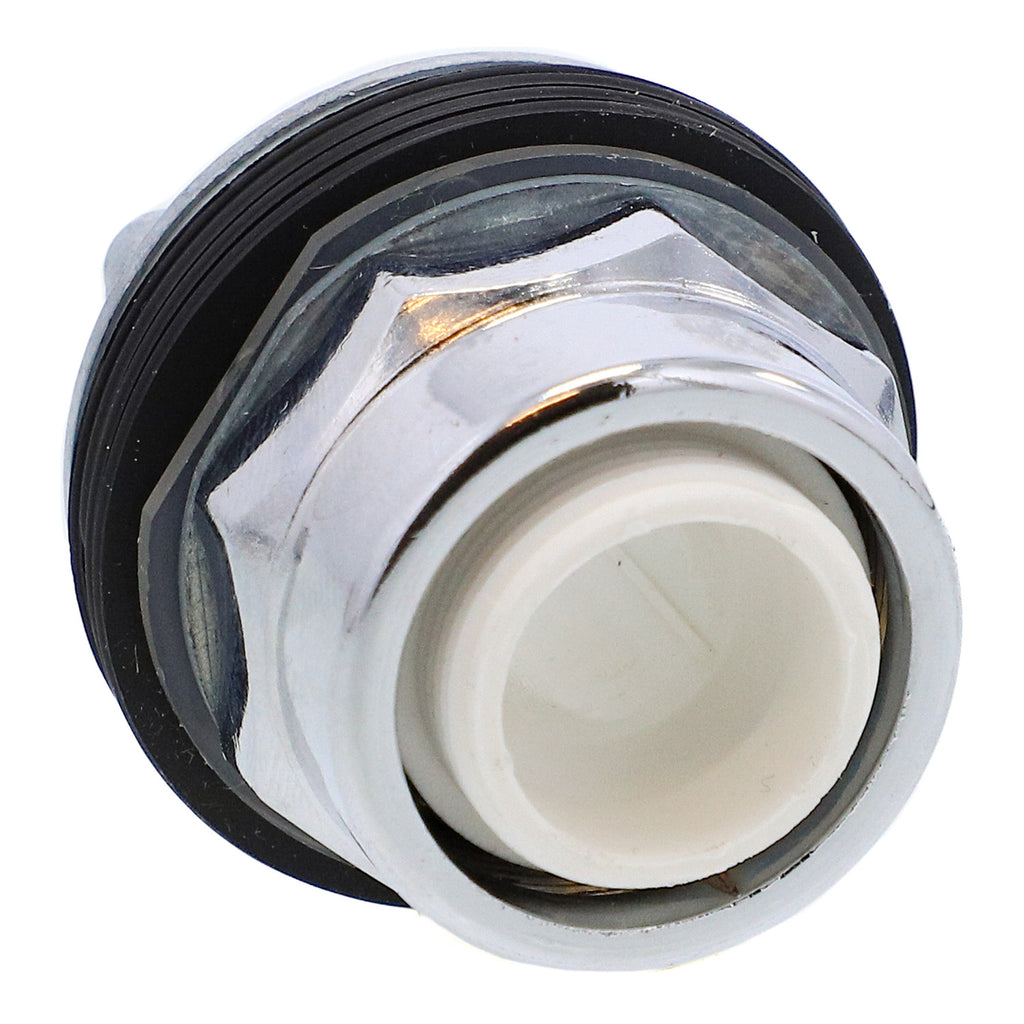

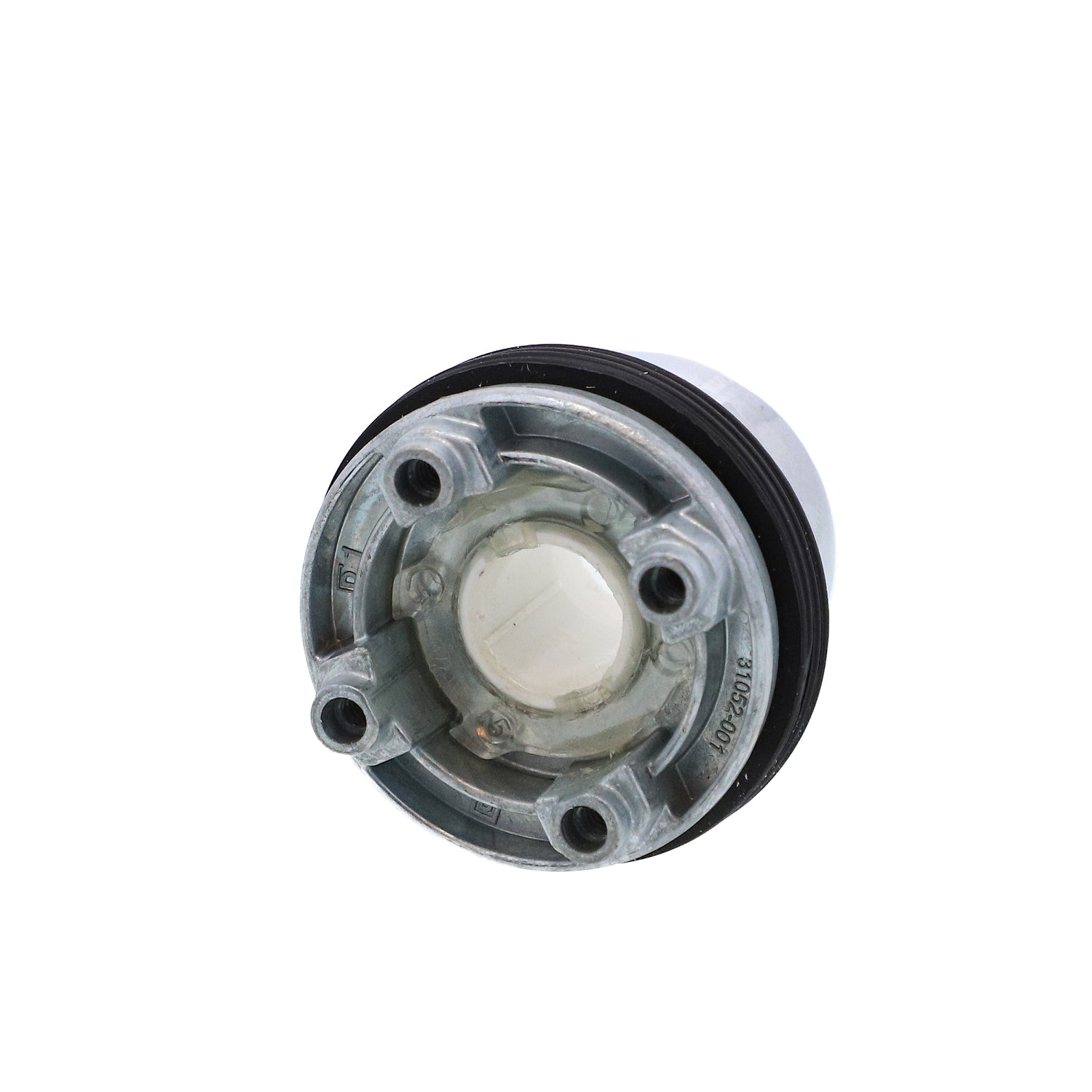

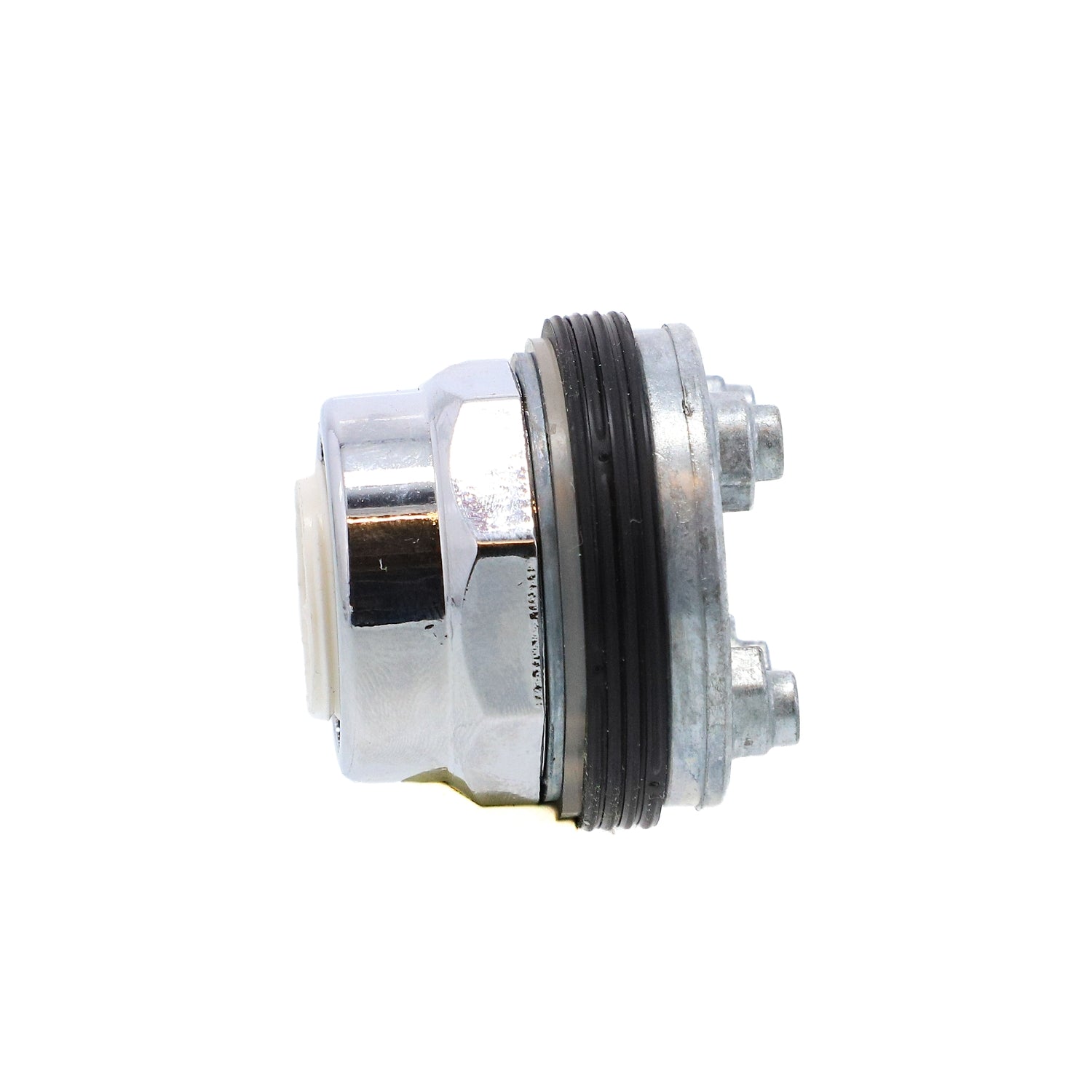

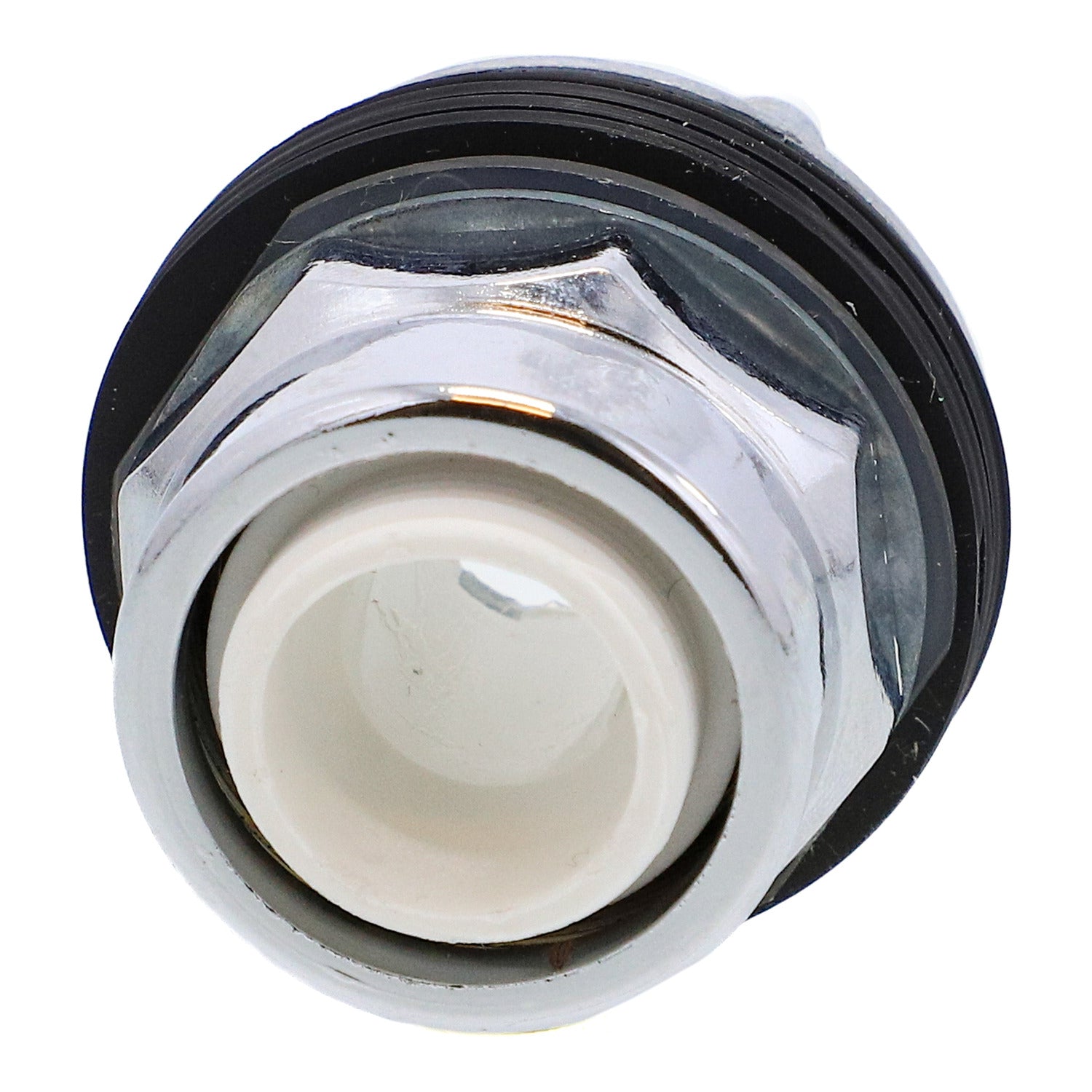

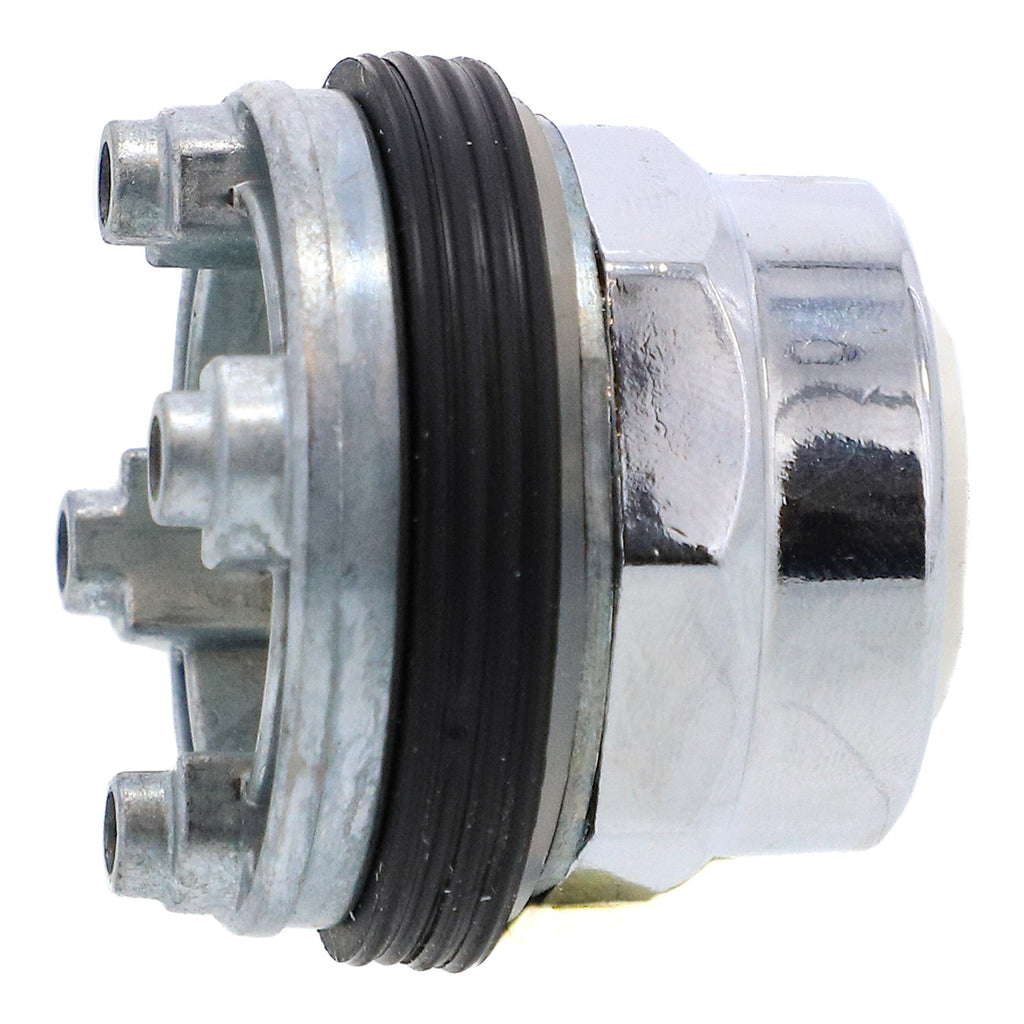

9001K2L - Schneider Electric - Square D Motor Control Part And Accessory
This push-button provides an ergonomic and visual interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP64, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for illuminated push-button |
| Device short name |
9001K |
| Operator profile |
Without cap flush |
| Operator additional information |
Without guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Without cap |
| Light block supply |
Without supply |
| Operator profile |
Projecting |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901178538 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.900 in (4.826 cm) |
| Package 1 Width |
2.200 in (5.588 cm) |
| Package 1 Length |
3.700 in (9.398 cm) |
| Package weight(Lbs) |
3.680 oz (104.326 g) |
PRODUCT DATASHEET
9001K2L_Product Datasheet
