9001K2L1G - Schneider Electric - 110-120V Square D Illuminated Push-button head

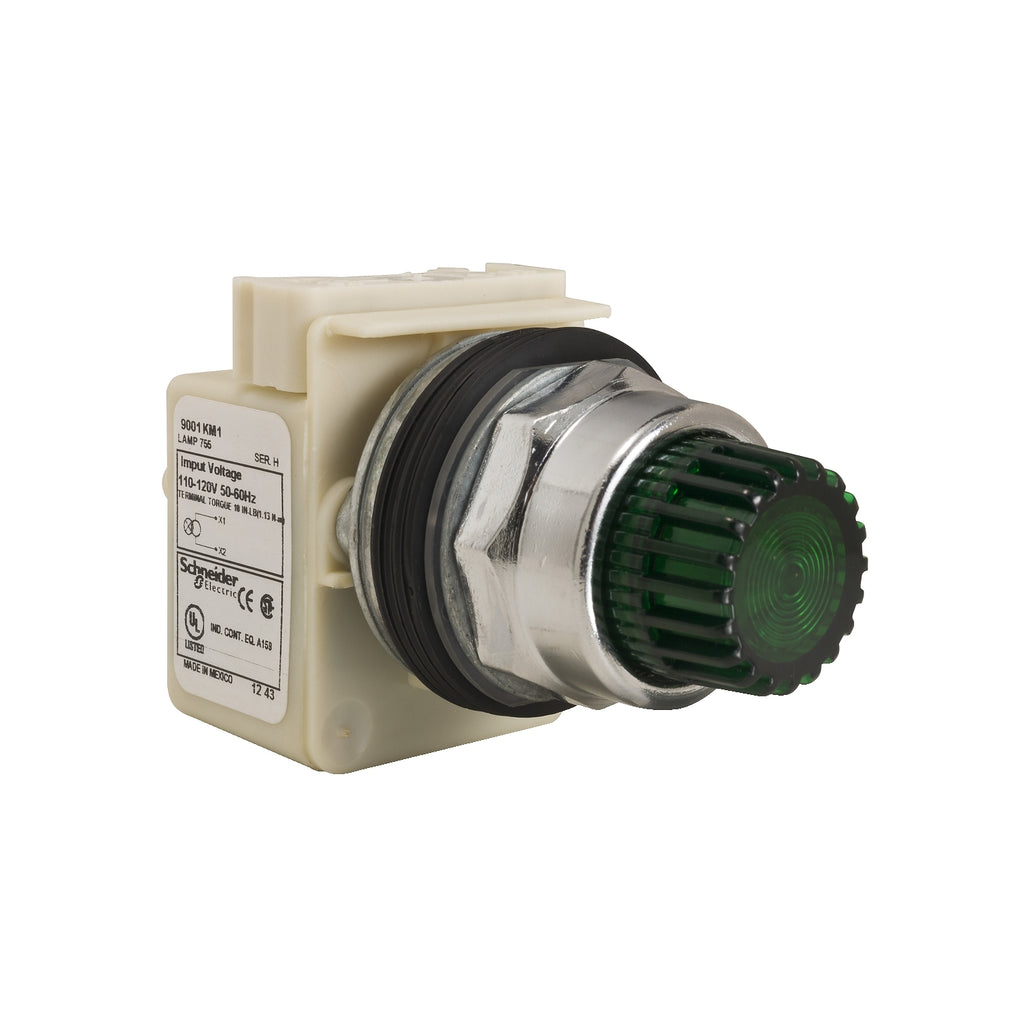

This Harmony 9001K, modular consists of illuminated projecting green push button. It has a chromium-plated metal bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for illuminated push-button |
| Device short name |
9001K |
| Operator profile |
Green flush |
| Operator additional information |
Without guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Green |
| [Us] Rated supply voltage |
110...120 V |
| Light block supply |
Via integral transformer |
| Operator profile |
Projecting |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901350484 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.80 in (4.572 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
3.70 in (9.398 cm) |
| Package 1 Weight |
8.320 oz (235.868 g) |
PRODUCT DATASHEET
9001K2L1G_Product Datasheet
