Description

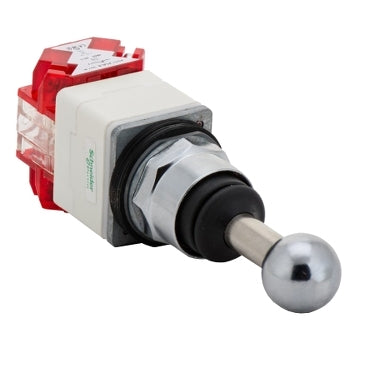

9001K35H2 - Square D - 30mm Metal 4-Direction Spring Return 2CO Joystick Controller
This Harmony 9001K, joystick controller has 5-positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Joystick controller |
| Device short name | 9001K |
| Sale per indivisible quantity | 1 |
| Type of operator | To centre spring return |
| Operator profile | 80 mm long operating shaft |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Net Weight | 0.820 lb(US) (0.372 kg) |
| Operating position | Any position |
| Shape of signaling unit head | Octagonal |
| Contacts type and composition | 2 C/O |
| Positive opening | Without |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Contacts material | Silver alloy contacts |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 NEMA 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA 15 kA 480 V AC-15, 7200 VA 30 kA 240 V AC-15, 7200 VA 60 kA 120 V AC-15, 7200 VA |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA 6 kA 120 V AC-15, 720 VA 1.2 kA 600 V AC-15, 720 VA 1.5 kA 480 V AC-15, 720 VA 0.1 kA 600 V DC-13 0.27 kA 250 V DC-13 0.55 kA 125 V DC-13 |
| Device presentation | Complete product |
| Operator direction information | 4 directions |
| Type of operator | Spring return |
| Size | 30 mm |
| Return | To centre |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40...158 degF (-40...70 degC) |
| Ambient Air Temperature for Operation | -13...158 degF (-25...70 degC) |
| Overvoltage category | II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| Standards | JIS C 852 JIS C8201-5-1 UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | NEMA UL 508 |
| Vibration resistance | 7 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901028284 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.05 in (5.2 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 2.3 in (5.8 cm) |
| Package weight(Lbs) | 10.7 oz (304.0 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 5.9 in (15.0 cm) |
| Package 2 Width | 5.9 in (15.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 5.858 lb(US) (2.657 kg) |
