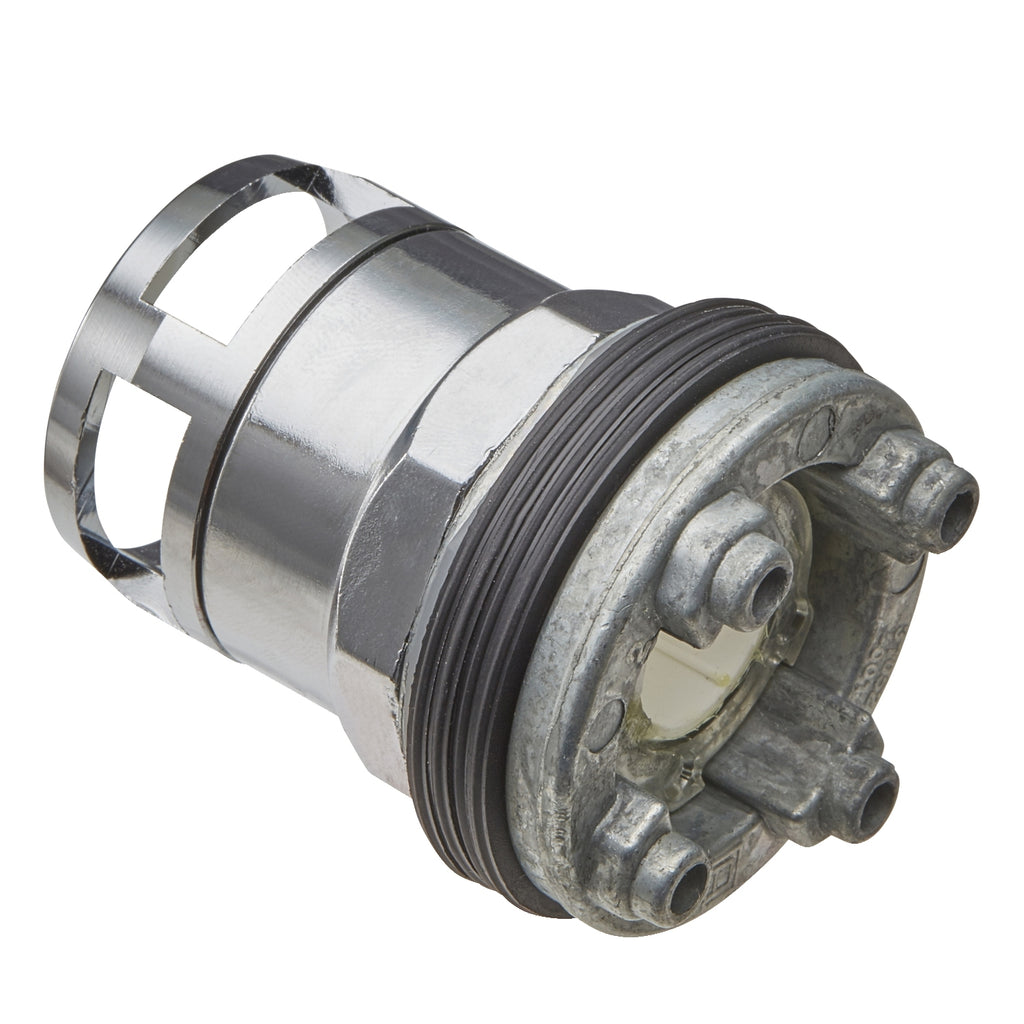

9001K3L - Schneider Electric - Square D Illuminated Push-button Head
The Schneider Electric 9001K3L is a 30mm illuminated pushbutton head designed for use with Harmony 9001K series control and signaling units. This metal flush-mount head features a metal guard, spring return functionality, and is supplied without a cap or bulb, allowing for customization to suit specific industrial control panel requirements.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Head for illuminated push-button |
| Device short name |
9001K |
| Operator profile |
Without cap flush |
| Operator additional information |
Metal guard |
Complementary
| Mounting diameter |
1.2 in (30 mm) |
| Shape of signaling unit head |
Round |
| Type of operator |
spring return |
| Bezel material |
Metal |
| Cap/operator or lens colour |
Without cap |
| Light block supply |
Without supply |
| Operator profile |
Flush |
| Type of operator |
Spring return |
| Contacts type and composition |
Without contact block |
Environment
| IP Degree of Protection |
IP65/IP66 |
Ordering and shipping details
| Category |
US10CS121426 |
| Discount Schedule |
0CS1 |
| GTIN |
785901028321 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
5.084 in (12.913 cm) |
| Package 1 Width |
2.002 in (5.084 cm) |
| Package 1 Length |
12.913 in (32.799 cm) |
| Package weight(Lbs) |
7.257 oz (205.749 g) |
