9001K73 - Schneider Electric - Square D Motor Control Part And Accessory

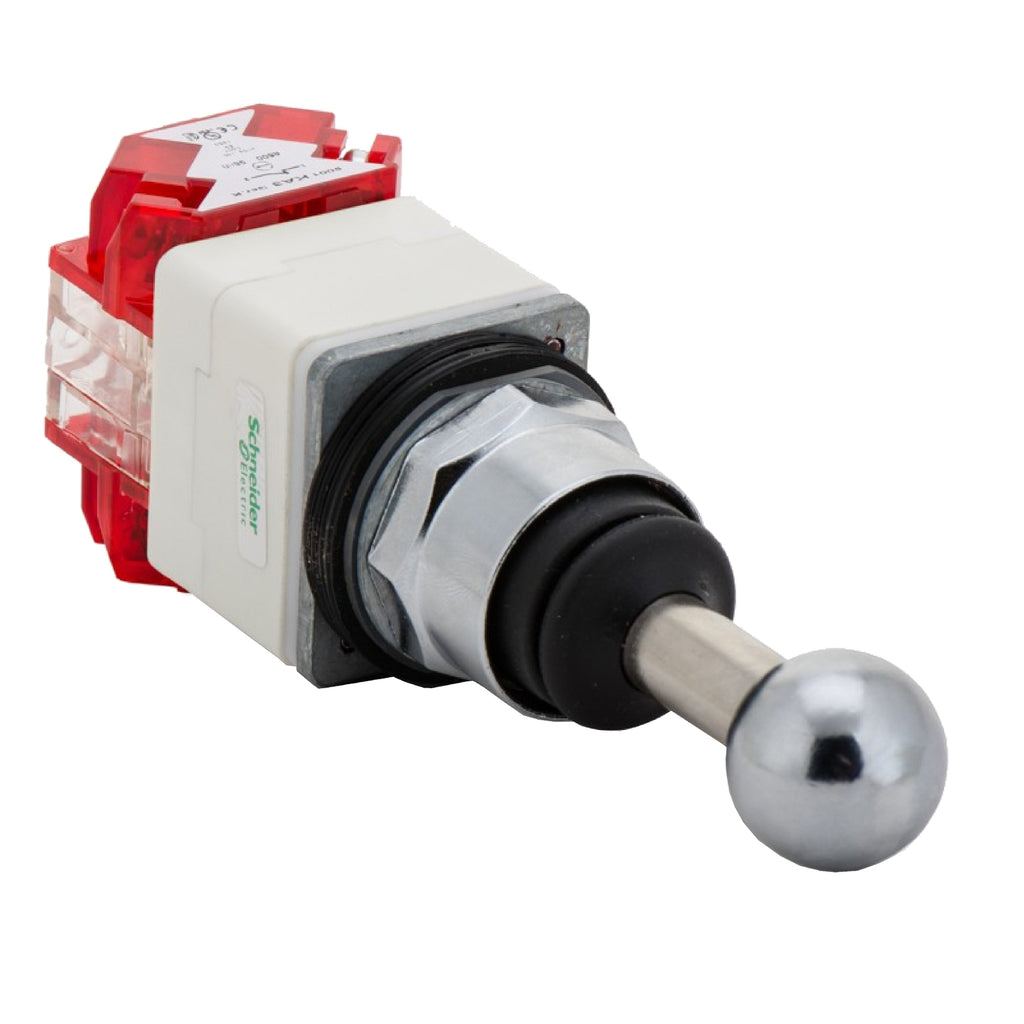

This Harmony 9001K73 is a joystick controller, 3 positions stay put, without contact. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for joystick controller |
| Device short name | 9001K |
| Sale per indivisible quantity | 1 |
| Type of operator | stay put |
| Operator profile | 80 mm long operating shaft |
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Net Weight | 0.820 lb(US) (0.372 kg) |
| Operating position | Any position |
| Shape of signaling unit head | Octagonal |
| Contacts type and composition | Without contact block |
| Device presentation | Basic element |
| Operator direction information | 2 directions |
| Type of operator | Stay put |
| Size | 30 mm |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | II conforming to IEC 61140 |
| IP degree of protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| Standards | JIS C8201-5-1 IEC 60947-5-1 UL 508 IEC 60947-1 CSA C22.2 No 14 JIS C 852 IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | NEMA UL 508 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901236887 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.6 in (4.1 cm) |
| Package 1 Width | 2.01 in (5.1 cm) |
| Package 1 Length | 5.2 in (13.3 cm) |
| Package 1 Weight | 8.5 oz (240.0 g) |
