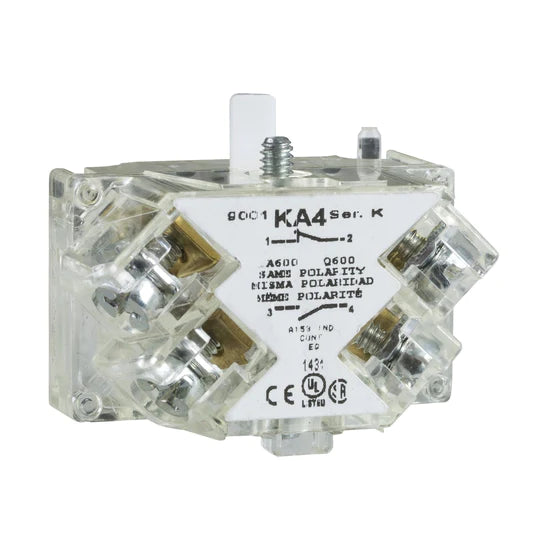

9001KA1 - Schneider Electric - Square D 10 Amp Pushbutton Contact Block
This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | Harmony 9001K |
| Harmony 9001SK | |
| Product or Component Type | Contact block |
| Device short name | 9001K |
| Contacts type and composition | 1 C/O |
| Complementary | |
| Net Weight | 0.060 lb(US) (0.027 kg) |
| Contact operation | Positive opening |
| Positive opening | Without |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Contacts material | Silver alloy contacts |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 NEMA |
| 0.55 A 125 V, DC-13, A600-Q600 NEMA | |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA |
| 15 kA 480 V AC-15, 7200 VA | |
| 30 kA 240 V AC-15, 7200 VA | |
| 60 kA 120 V AC-15, 7200 VA | |
| 0.1 kA 600 V DC-13, 7200 VA | |
| 0.27 kA 250 V DC-13, 7200 VA | |
| 0.55 kA 125 V DC-13 | |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA |
| 6 kA 120 V AC-15, 720 VA | |
| 1.2 kA 600 V AC-15, 720 VA | |
| 1.5 kA 480 V AC-15, 720 VA | |
| 0.1 kA 600 V DC-13 | |
| 0.27 kA 250 V DC-13 | |
| 0.55 kA 125 V DC-13 | |
| [Us] rated supply voltage | 0...600 V |
| Connections - Terminals | Screw-clamp terminals |
| Environment | |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | IEC 60947-5-1 |
| JIS C 4520 | |
| UL 508 | |
| IEC 60947-1 | |
| JIS C 852 | |
| CSA C22.2 No 14 | |
| IEC 60947-5-4 | |
| UL 60947-5-1 | |
| Product Certifications | NEMA |
| UL 508 | |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Ordering and shipping details | |
| Category | US10CS121434 |
| Discount Schedule | 0CS1 |
| GTIN | 785901880004 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.024 in (2.600 cm) |
| Package 1 Width | 1.969 in (5.000 cm) |
| Package 1 Length | 3.150 in (8.000 cm) |
| Package weight(Lbs) | 1.023 oz (29.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 5.906 in (15.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 6.748 lb(US) (3.061 kg) |
