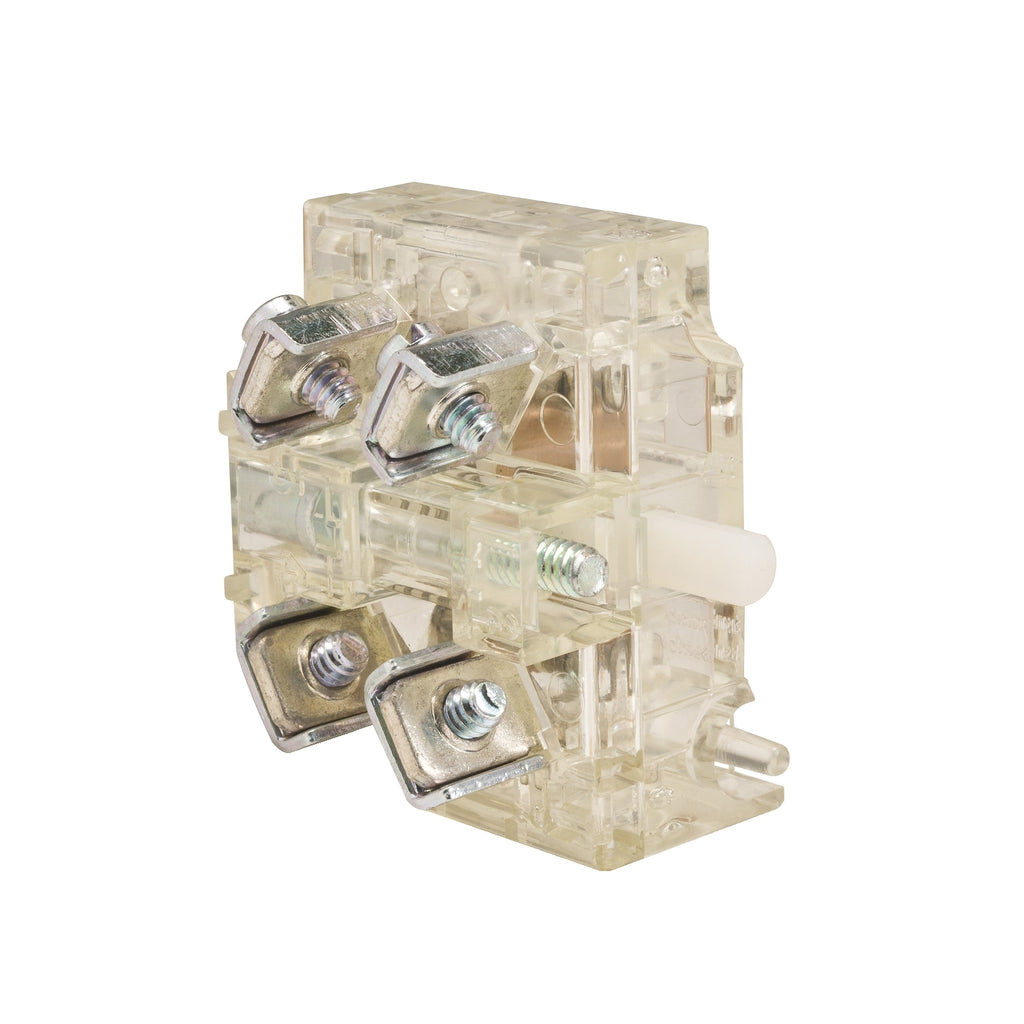

9001KA1G - Schneider Electric - Square D Contact Block
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches The line Rated current is 10 A It is easily installed and replaced on 9001K complete push-button units and selector switches The package dimensions are 2.540 cm (width) x 16.387 cm (length) x 6.452 cm (height) High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony 9001K
Harmony 9001SK |
| Product or Component Type |
Contact block |
| Device short name |
K |
| Contacts type and composition |
1 C/O |
Complementary
| Contact operation |
Standard |
| Contacts material |
Silver alloy contacts |
| Short-circuit protection |
10 A without fingersafe |
| [Us] rated supply voltage |
0...600 V |
| Connections - Terminals |
Screw terminals for lug |
Environment
| Product Certifications |
UL listed file E42259 CCN NKCR
CSA LR 25490 class 3211 03
CE |
Ordering and shipping details
| Category |
US10CS121434 |
| Discount Schedule |
0CS1 |
| GTIN |
785901028789 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.0 in (2.5 cm) |
| Package 1 Width |
4.02 in (10.2 cm) |
| Package 1 Length |
6.0 in (15.2 cm) |
| Package weight(Lbs) |
1.0 oz (27.2 g) |
PRODUCT DATASHEET
9001KA1G_Product Datasheet
