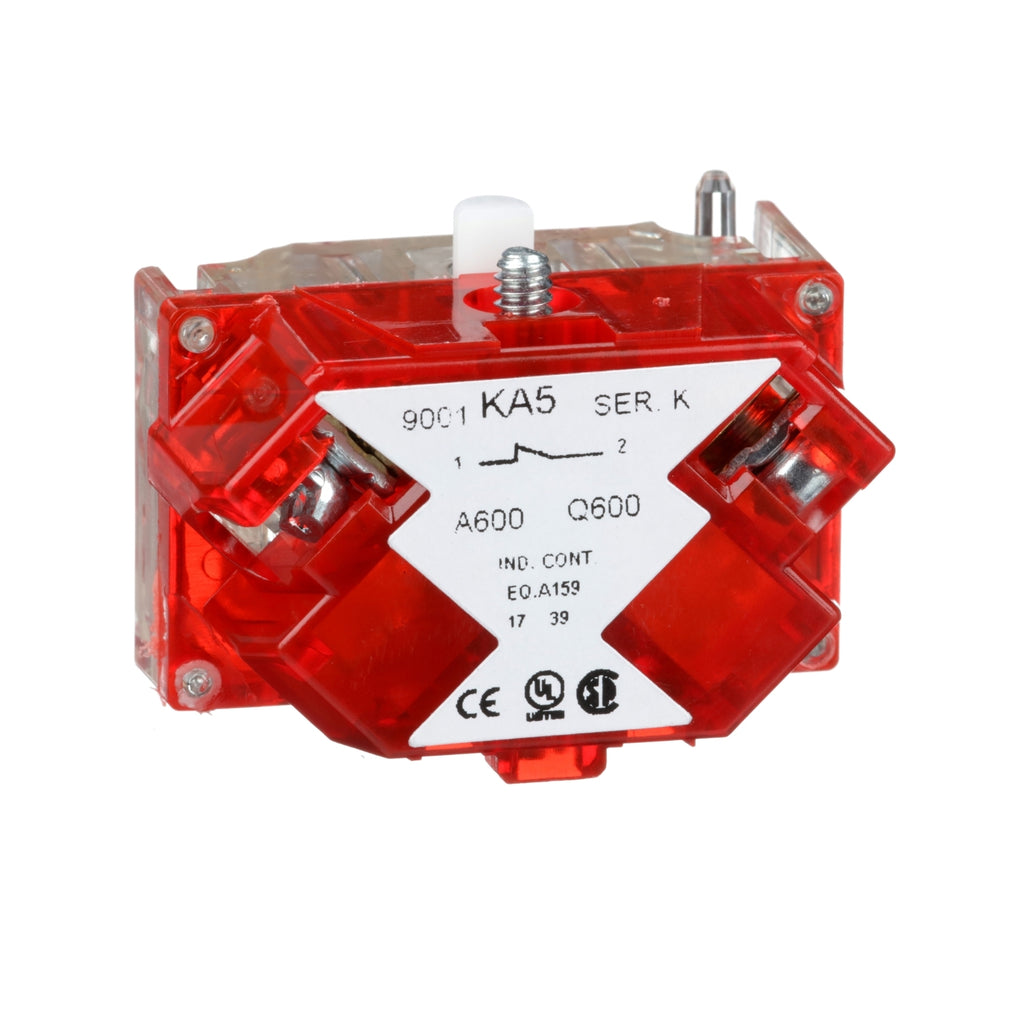

9001KA5 - Schneider Electric - Square D Motor Control Part And Accessory

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features late-break contact operation. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

GENERAL SPECIFICATIONS

Main
Range of Product Harmony 9001K
Harmony 9001SK
Product or Component Type Contact block
Device short name 9001K
Contacts type and composition 1 NC
Complementary
Terminals description ISO n°1 (3-4)NO_CL
Net Weight 0.051 lb(US) (0.023 kg)
Contact operation Late-break
Positive opening With IEC 60947-5-2
Connections - terminals Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head Cross slotted
Contacts material Silver alloy contacts
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600-Q600 NEMA
0.55 A 125 V, DC-13, A600-Q600 NEMA
[Icm] rated short-circuit making capacity 12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA
0.55 kA 125 V DC-13
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
Rated breaking capacity 3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13
[Us] Rated supply voltage 0...600 V
Connections - Terminals Screw-clamp terminals
Environment
Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II IEC 61140
Standards IEC 60947-5-1
UL 508
IEC 60947-5-4
CSA C22.2 No 14
JIS C 4520
IEC 60947-1
JIS C 852
UL 60947-5-1
Product Certifications NEMA
UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Ordering and shipping details
Category US10CS121434
Discount Schedule 0CS1
GTIN 785901880103
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Pkg. 1
Package 1 Height 1.00 in (2.54 cm)
Package 1 Width 1.40 in (3.556 cm)
Package 1 Length 1.70 in (4.318 cm)
Package 1 Weight(Lbs) 0.80 oz (22.68 g)
