Description

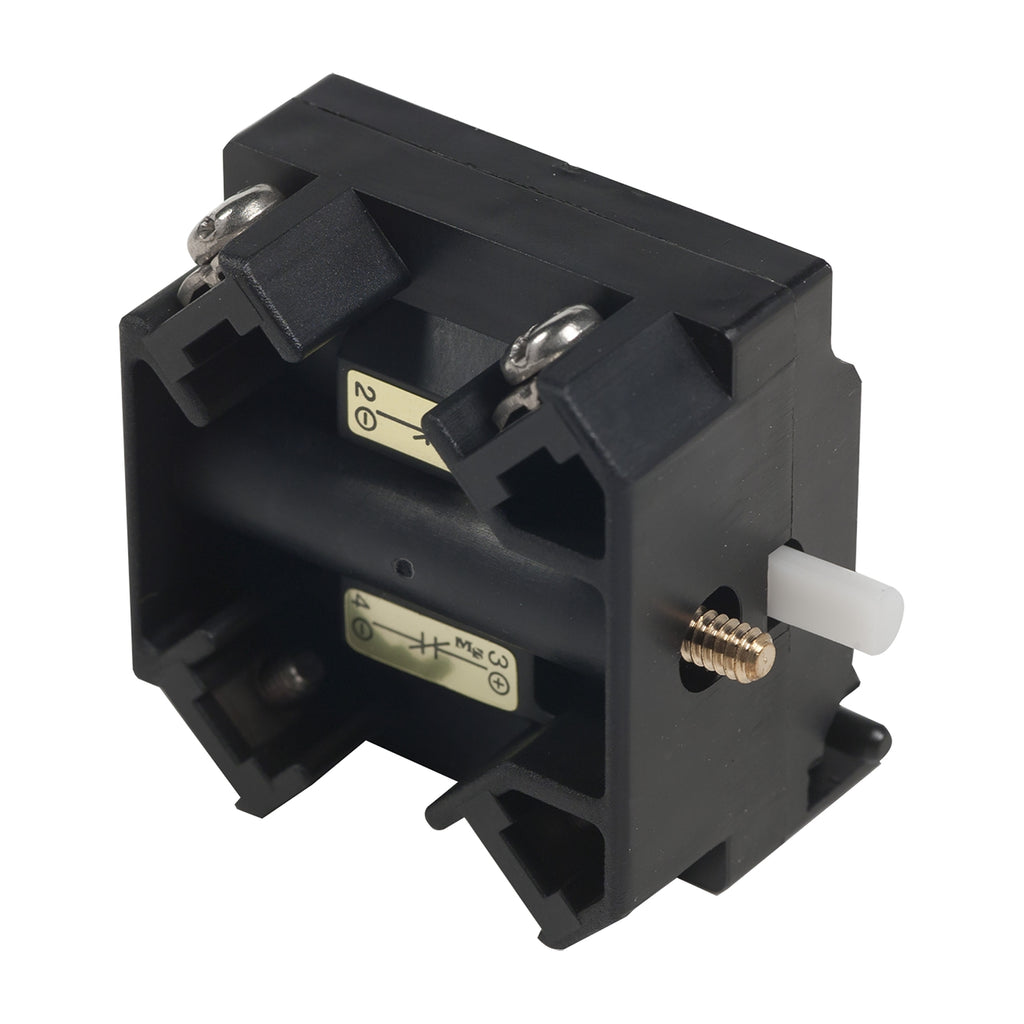

9001KA54 - Schneider Electric - Square D 240V Contact Block
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches The contact block has 2N/ O contacts It is easily installed and replaced on 9001K complete push-button units and selector switches High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Contact block |
| Device short name | K |
| Contacts type and composition | 2 NC |
| Contact operation | Power reed Hermetically sealed |
|---|---|
| Short-circuit protection | 3 A fingersafe |
| [Us] Rated supply voltage | 240 V |
| Connections - Terminals | Screw-clamp terminals |
| Product Certifications | UL listed file E42259 CCN NKCR CSA LR 25490 class 3211 03 CE |
|---|
| Category | US10CS121434 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901827528 |
| Returnability | Yes |
| Country of origin | JP |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.10 in (2.8 cm) |
| Package 1 Width | 1.69 in (4.3 cm) |
| Package 1 Length | 1.89 in (4.8 cm) |
| Package 1 Weight | 1.6 oz (45.4 g) |
