Description
9001KM35 - Schneider Electric - Square D Motor Control Part And Accessory

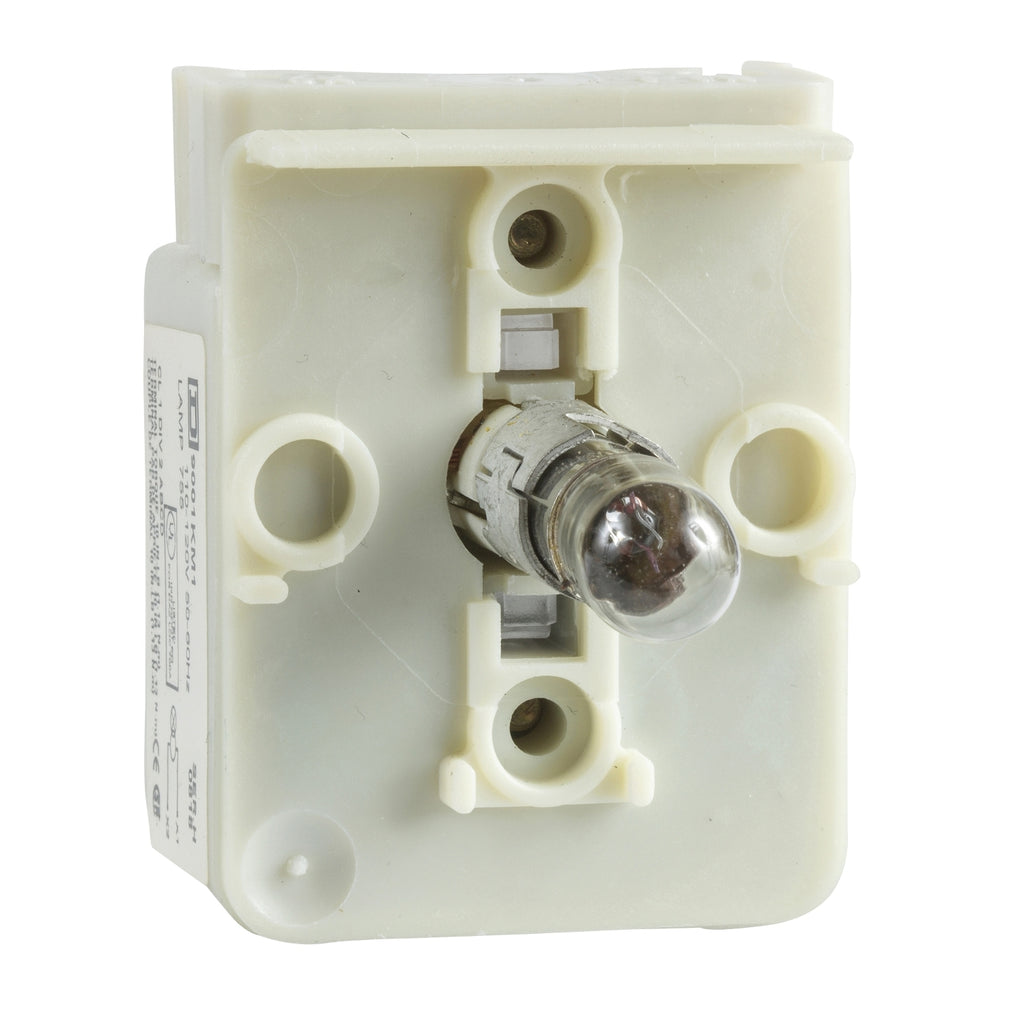

This light blocks is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is supplied with 12V AC/DC via integral resistance and includes a BA 9s 6 V bulb incandescent. It is compatible with pilot lights and illuminated pushbuttons of Harmony 9001K and Harmony 9001SK ranges. It weighs 50g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Light block |
| Device short name | 9001K |
| Bulb base | BA 9s |
| Light block supply | Direct via integral resistance |
| Net Weight | 0.11 lb(US) (0.05 kg) |
|---|---|
| Light source | Incandescent bulb |
| [Us] rated supply voltage | 24 V AC/DC |
| [Us] Rated supply voltage | 24...28 V |
| Light block supply | Full voltage |
| Size | 30 mm |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| IP degree of protection | IP10 IEC 60529 |
| Standards | IEC 60947-5-4 JIS C 852 UL 508 IEC 60947-1 CSA C22.2 No 14 JIS C 4520 IEC 60947-5-1 |
| Product Certifications | NEMA UL 508 |
| Electrical shock protection class | Class II IEC 61140 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121435 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901726524 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.20 in (5.588 cm) |
| Package 1 Width | 3.60 in (9.144 cm) |
| Package 1 Length | 1.90 in (4.826 cm) |
| Package 1 Weight(Lbs) | 2.240 oz (63.503 g) |
