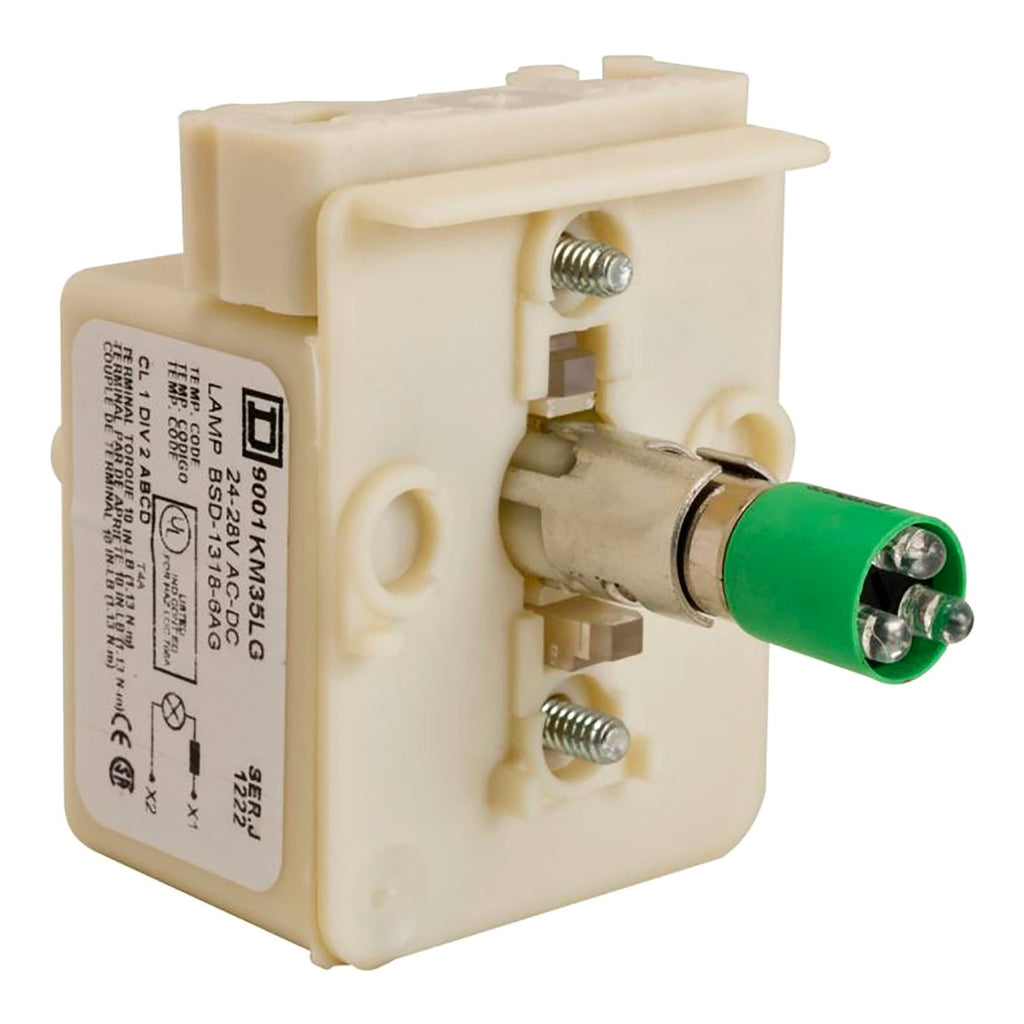

9001KM35LG - Schneider Electric - Square D 30mm Green LED Light Block and Module
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Light module Light block |
| Device short name | 9001K |
| Bulb base | BA 9s |
| Light block supply | Direct via integral resistance 0.28 VA |
| Light source | LED (bulb included) |
|---|---|
| Light block colour | Green |
| [Us] rated supply voltage | 24...28 V AC 50...60 Hz 24...28 V DC |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) -40…70 °C (-40…158 °F) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) -25…70 °C (-13…158 °F) |
| IP degree of protection | IP10 IEC 60529 |
| Standards | UL 508 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C 4520 JIS C 852 |
| Product Certifications | UL Listed CSA NEMA |
| Electrical shock protection class | Class II IEC 61140 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121435 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901028956 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.01 in (5.1 cm) |
| Package 1 Width | 2.3 in (5.8 cm) |
| Package 1 Length | 3.70 in (9.4 cm) |
| Package weight(Lbs) | 2.6 oz (72.6 g) |
