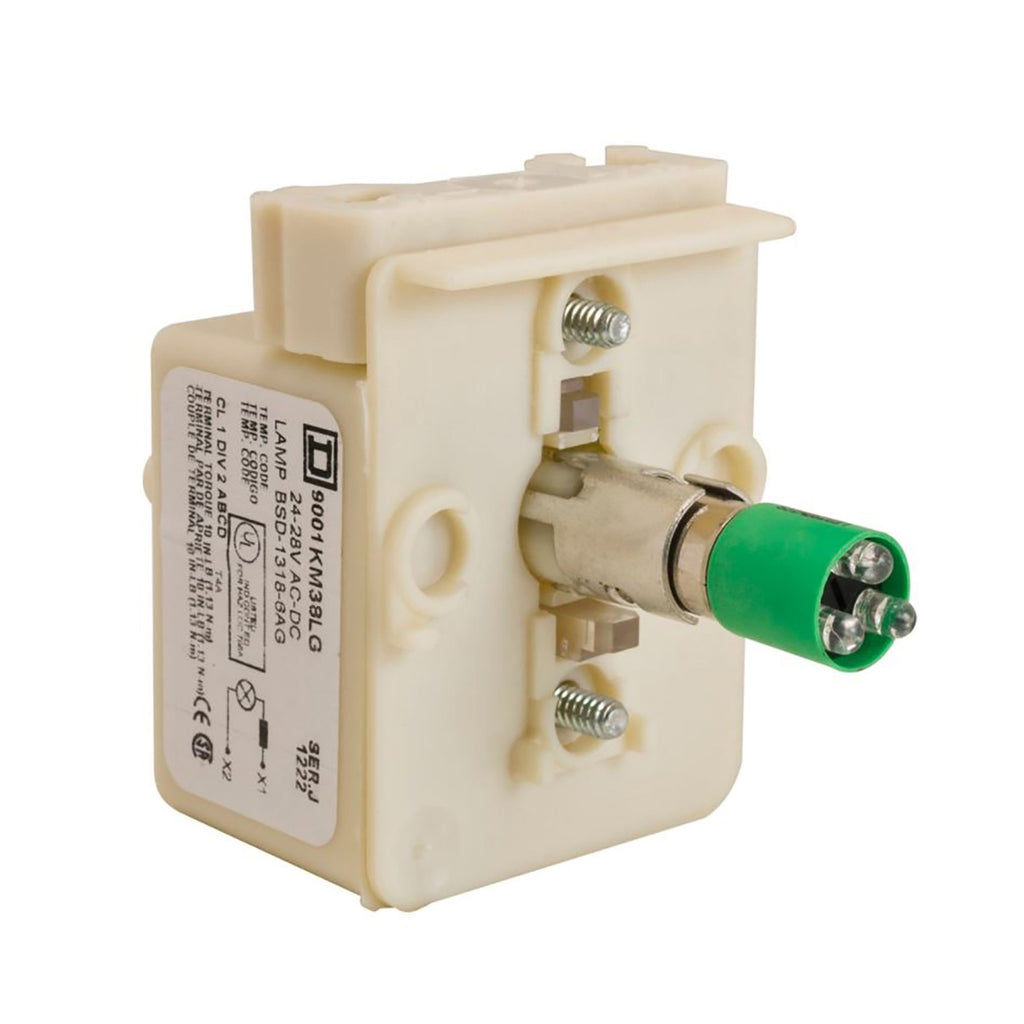

9001KM38LG - Schneider Electric - Square D Motor Control Part And Accessory
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.
GENERAL SPECIFICATIONS
| Range of Product | Harmony 9001K Harmony 9001SK |
|---|---|
| Product or Component Type | Light module Light block |
| Device short name | 9001K |
| Bulb base | BA 9s |
| Light block supply | Direct via integral resistance 1.4 VA |
| Light source | LED (bulb included) |
|---|---|
| Light block colour | Green |
| [Us] rated supply voltage | 120 V AC 50...60 Hz 120 V DC |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) -13…158 °F (-25…70 °C) |
| IP degree of protection | IP10 IEC 60529 |
| Standards | UL 508 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C 4520 JIS C 852 |
| Product Certifications | UL Listed CSA NEMA |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Category | US10CS121435 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 3389118042322 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.20 in (5.588 cm) |
| Package 1 Width | 3.60 in (9.144 cm) |
| Package 1 Length | 1.80 in (4.572 cm) |
| Package 1 Weight | 2.240 oz (63.503 g) |
PRODUCT DATASHEET
